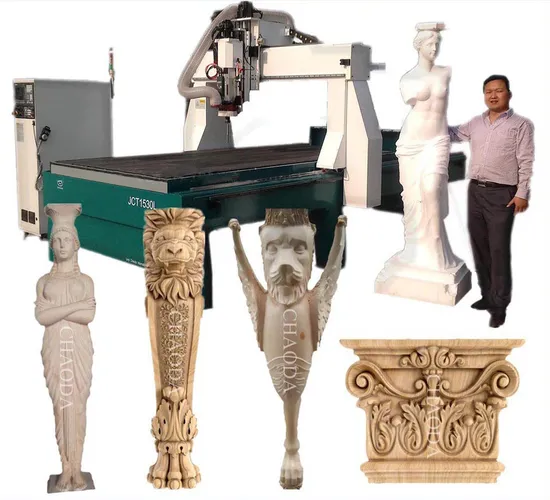

3D Wood Foam Sculpture Statue Figure Column CNC Carving Machine, 4 Axis 1530 CNC Router with 2.5m Rotary
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
JCT1530L
Spindle Layout
Vertical
Spindle Number
1
Feed Mode
Mechanical
Controlling Mode
CNC
Customized
Customized
Condition
New
Color
Customized
After-sales Service
Online Services
Name
CNC Machine, Carving Machine, CNC Router Machine
Function
Produce 2D 3D Decoration Big Sculpture Statue
Xyz Working Size
1500*3000*500mm(Customized)
Rotary Working Size
1000mm Diameter, 2500mm Length(Customized)
Table Surface
Aluminium T-Slot with Clamps
Pindle Power
9kw Air Cooling Spindle
Working Mode
Japan Yaskawa Servo Motor and Driver
Operating System
4 Axis Weihong Control System
Working Voltage
3 Phase AC380V /220V
Working Materials
Wood, Styrofoam, Plastic, Aluminium...
Transport Package
Standard Packing
Specification
4 Axis
Trademark
CHAODA
Origin
China
HS Code
8465990000
Production Capacity
100sets/Month
Product Description
3D Wood Foam Sculpture Statue Figure Column CNC Carving Machine, 4 Axis 1530 CNC Router with 2.5m RotaryAll machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability. Machine is with a big rotary device, can make different kinds of 3d sculptures, statues, figures, idols, landscapes, stage props, park designs, etc. Machine is with a flat table, can do deep flat works, like 3d reliefs, 3d molds, door furniture, acrylic words/letters, landscapes , etc. Advanced Ncstudio control system, very stable and easy to operate.
| Model No. | JCT1530L |
| Flat working size | 1500*3000*500mm |
| Rotary working size | 1000mm diameter, 2500mm length |
| Lathe bed structure | T-extrusion, Thick Steel frame |
| Table | Removable, T-slot with clamps |
| X structure | Rack and pinion, linear square rail |
| Y structure | Rack and pinion, linear square rail |
| Z structure | Ball screw, linear square rail |
| Max. travelling speed | 0-60000mm/min |
| Max. working speed | 0-30000mm/min |
| Spindle | 9kw air cooling ATC spindle |
| Tool magazine | Linear type auto tool changer, 8 tools ability |
| Driving system | Japan YASKAWA servo motor and driver |
| Operating system | 4 axis Ncstudio with Screen |
| Operation language | G code |
| Working voltage | AC380V, 3-phase, 50Hz |
| Working materials | Eps foam, Styrofoam, Woods, MDF, Composite boards, Alucobond, PVC, Rigid plastics, Polyester, Fiberglass, Acrylic, Organic glass, Aluminum, etc. |
1. Sample testing before shipment2. Provide 2 days free training for each machine3. 12 months warranty for each machine4. Friendly English version manual and operation videos for studying5. Free technical support by phone,email,chatting or remote6. Engineers available to service machinery overseas
