400~1200kg Electric Glass Vacuum Suction Cup
Basic Info.
Model NO.
GL
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Windows Installation
Lift Mechanism
Hanging Crane
Carrying Capacity
Weight Level
Moves
Moving
Driven Type
DC
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Single Cup Lifting Capacity
100kg
Charger
AC220/110
Extension Bar Length
590mm
Tilting
90 Degree Manual
Color
Yellow
Cap Qty
4,6,8
Power Supply
Battery
Lifting Method
Vacuum
Control
Wire Controller
OEM
Accepted
Coating
Powder Spray
Usage
Glass Installing
MOQ
1 Set
Package
Plywood Box
Others
Foc Spare Parts
Transport Package
Wooden Box
Specification
400kg/600kg/800kg/1000kg
Trademark
PLK LIFT
Origin
China
HS Code
8428909090
Production Capacity
5000 Sets/Month
Product Description

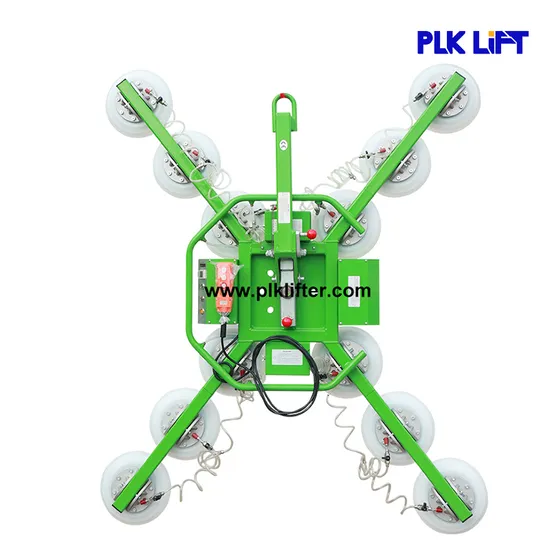

2000Lbs Vacuum Glass Lifting EquipmentPLK LIFT suction caps are specially design for handling different kinds of heavy plate, board and glass, useful for installing steel board, glass wall, moving such as granite, marble.
| Model | GL-SC-400X | GL-SC-600X | GL-SC-800X | GL-SC-1000X | GL-SC-1200X | |
| Lifting Capacity | kg | 400 | 600 | 800 | 1000 | 1200 |
| Cup Qty | / | 4 | 6 | 8 | 10 | 12 |
| Single Cup Size | mm | 300 | 300 | 300 | 300 | 300 |
| Single Cup Lifting Capacity | kg | 100 | 100 | 100 | 100 | 100 |
| Rotation | / | 360°manual rotate | ||||
| Tilting | / | 90° manual | ||||
| Volte | V | DC12 | ||||
| Charger | V | AC220/110 | ||||
| Weight | kg | 70 | 90 | 100 | 110 | 120 |
| Sucker Frame Size | mm | 850*750*300 | 1800*900*300 | 1760*1460*300 | 1900*1600*300 | 1900*1600*300 |
| Extension Bar Length | mm | 500 | ||||
| Control System | / | Integrated Control Cabinet and Wired Remote Control | ||||
| Overall Size after packing by wooden box | mm | 1230*910*390 | ||||
| Gross Weight after packing by wooden box | kg | 97 | 110 | 123 | 150 | 163 |
Features & Advantages:
1.Sealed cover for components protection,safe and reliable. Usually cooperated with bridge crane to use in glass deep processing and handling job, or with cantilever crane to use in glass curtain wall installation job .
2.Adjustable type, can be changed the position of the suction cup to absorb glass of different shapes and sizes (also can be customized according to the glass size)
3.Manually rotated 360° in the vertical side, and manually rotated 90° in the horizontal side, but taking and releasing by electric
4.Adopt American THOMAS vacuum pump and high quality maintenance-free battery, no need the air source or power supply during use.
5.Japan Panasonic digital display vacuum pressure switch , battery fuel gauge, clearly monitor the safty use.
6.With vacuum pressure auto supply system, during handling glass, ensure the whole vacuum system maintained at a relatively constant safety pressure value
7.Equipped with the power-cut but pressure-keeping device and alarm device. If power failure accidently,the pressure-keepping function can extend the handling time and make the use safer.
8.Equipped with 12V backup battery, can be replaced in time to ensure the progress of the project.
Offer OEM & ODM service,according to different materials size and weight.
Please inform us the materials you want to lift,as well as size and weight to get a proper proposal.
