19inch Rackmount DIN Rail Kit High Strength Aluminum Alloy Adjustable Rack Mount DIN Rail Chassis for Industrial Media Converters Ethernet Switch - Silver Color

Product Description

Product Description
19inch Rackmount Din Rail kit High Strength Aluminum Alloy Adjustable Rack Mount Din Rail Shelf for Industrial Media Converters Ethernet Switches and Other DIN-Rail Products (Silver)
Overview

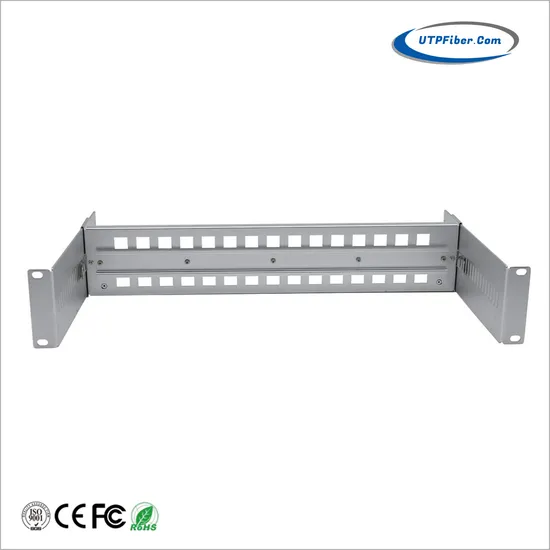

The UF-DR19S silver color 19" Rack Mount Adjustable DIN-rail Rack Mount Hardware is installed in a standard 19" rack cabinet to allow DIN-Rail mounted equipment to be rack mounted. The DIN-Rail Rackmount Bracket allows users to mount DIN rail industrial control devices and switches inside a standard 19" rack. The user-friendly design only takes a few seconds to easily clip on or remove DIN rail devices from the rack. The Adjustable 2U 19" Rackmount DIN Rail Kit is adjustable in depth to fit any size rack and can easily solve your installation problems.
Features DIN-Rail devices inside a standard 19" rack or cabinet Unique depth adjustment feature to fit equipment in any size One standard 35mm (1.38") DIN-Rail track included User-friendly design Maximum load capacity 8KG Adjustable in depth to fit devices from 1 to 8 inches (2.5 to 20.5cm) High Strength Aluminum Alloy Material, easy to carry, install and disassembly DIN-rail Media Converters, DIN-rail Industrial PoE Switch and DIN-rail Power Supplies can be suitable for this Rack Mount Bracket Detailed Photos
Product Parameters Specifications

Mechanical
Material	Aluminum
Color	Silver
Dimensions (W x H x D)	482.6mm x 92.2mm x 250mm
Rack Height	2U
Net Weight	1.3 kg (2.87 lbs.)
Gross Weight	1.55 kg (3.42 lbs.)
Maximum Load Capacity	8 kg (17.64 lbs.)
Standards and Certifications
RoHS ANSI/EIA 310-E IEC 60297-3 IEC/EN 60715
Package Contents
Rackmount DIN-Rail Chassis x 1 Rackmount Chassis Holder x 2 M3*6 Combination Screw x 1 Metal Shrapnel x 2 Packing Box x 1
Working Environment
Operating Temperature	-40ºC~80ºC (-40 to 176 ºF)
Operating Humidity	5%~90% (non-condensing)
Storage Temperature	-40ºC~85ºC (-40 to 185 ºF)

Ordering Informaton

Model	Description
UF-DR19S	19-inch DIN-Rail Rackmount Bracket for DIN-rail products, Silver Color
