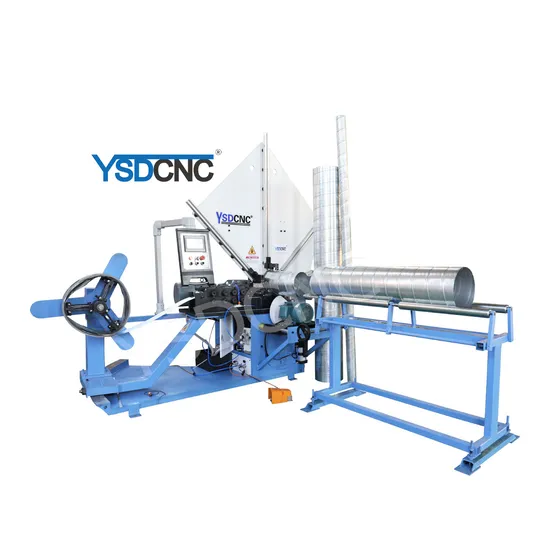

Factory Direct Supply Steel Work Round Tube Making Machine

Product Description

Product Description
The prestigious YSDCNC has been widely recognized in the HVAC and sheet metal industry as the spiral duct machine with
outstanding quality, reliability, and performance-driven approach. YSDCNC launched a new modular Tubeformer concept for
HVAC application. The new design aims at custom-tailored configurations suitable for individual production demands and
greater functionality flexibility for future expansions. Assemble the machine according to your needs when it comes to output
(speed configurations), strength (material thickness configurations), and range (dimension configurations)! The new touch
screen based Control System manifests an operation- and production friendly design coupled with many features, including
the newly developed optional PC Download function for enhanced production efficiency.
Performance Features:
1, patented mold, easy to adjust, and has its own patent, replace the mold more trouble and save the province of materials
2, high-speed synchronous cutting system
3, PLC control
4, can be on-site construction
5, can be adjusted
6, high-quality products, high-quality services
7, the system can handle galvanized sheet, aluminum
8, automatic roll out of equipment
9, can produce a variety of different diameter spiral tube
Specification

Main Technical Parameters:

Model	YSDCNC-1500
Tube Diameter	80-1500mm
Tube Wall Thinkness	0.4-1.2 mm(SS 0.4-0.8 mm)
Cutting Method	Roller Cutter (Plasma cutter optional)
Width of strip	137 mm
Working speed	1-45 m/min
Motor power	4kw
Dimension	2700*1700*2300mm
Weight	2200kg

Processing material: Galvanized Steel Sheet / Stainless Steel / Aluminum Plate
YSDCNC-1500 is flexible type with roller cutter

Mainly Parts :

Motor	WNM Brand(CHINA) / Siemens Brand(optional)
Air Cylinder	SNS-CHINA
PLC	YSDCNC-CHINA
Frequency Transformer	China brand
Electric Brand	Chint Electric
Rolls Material	GCr15
Rollers Stations	5 stations
