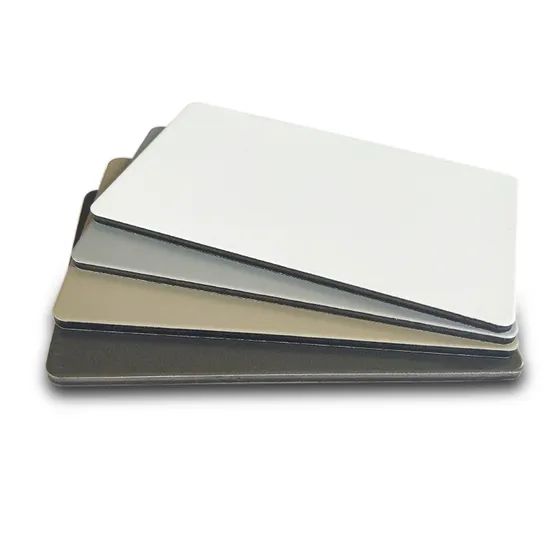

20 Years Manufacturer 3mm 4mm 5mm PVDF ACP Glossy Aluminum Composite Panel
| US$4.40 | 1,000 Square Meters (MOQ) |
Basic Info.
Model NO.
NT-1001
Surface Finishing
Coating
Panel Thickness
4mm
Aluminum Thickness
0.3mm
Function
Fireproofing, Anti-static, Anti-Bacterial, Mould-proof
Usage
External Wall, Curtain Wall, Advertising
Certification
CE, ASTM, ISO, Green Leaf, Official Certificates:ISO/EU Protocol/Reach/RoHS/a
Paint
PPG, Becker
Lead Time
10 Days
Ral Colors
Available
OEM ODM
Acceptable
Warranty Period
20 Years
MOQ
100 Sheets
Color Match
98%
Glossy
20%-80%
Trial Order
Accepted
Stock
Stable
Surface
PE PVDF Feve UV
Performance
Anti-Static Anti-Toxic No Droplets
Installation
Simple
Fabrication
Flexible
Rigidity
Hard
Transport Package
in Bulk, in Standard Wooden Pallet
Specification
1220x2440mm 1250x3050mm 1500x3050mm,1250*5000 etc.
Trademark
NEITABOND
Origin
China
HS Code
7606119100
Production Capacity
35000 Square Meters Per Day
Product Description
| Aluminum Alloy | AA1100 ,AA3003,AA5005 |
| Aluminum Skin | 0.08mm,0.10mm, 0.12mm 0.15mm,0.18mm,0.21mm,0.25mm,0.30mm,0.40mm,0.50mm |
| Panel Thickness | 3mm,4mm |
| Panel Width | 1220mm,1250mm,1500mm |
| Panel Length | 2440mm or cutomized |
| Surface Treat | PVDF or PE coating |
| Customers Size | ACCEPTED |
| Glossy | 20%-80% |
| Paint thickness | PE:15-18um PVDF:23-28um | Panel Length | +/-3mm |
| Paint type | PVDF or PE | Panel Thickness | +/-0.2mm |
| Warranty | PE:7-10 years PVDF:15-20 years | Aluminum thickness | +/-0.02mm |
| Panel Width | +/-2mm | Panel Diaonal | +/-5mm |
