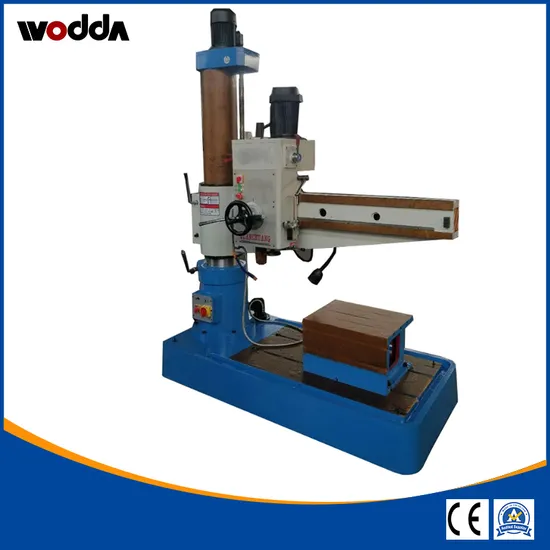

Factory Direct Sale Universal Radial Drilling Machine (Z3040X10/13)

Product Description

Factory Direct Sale Universal Radial Drilling Machine (Z3040X10/13)
Factory Direct Sale Universal Radial Drilling Machine (Z3040X10/13) Features:
Radial drilling press machine can be widely used in drilling, reaming, reaming, planing plane, tapping and other processing. High quality and high performance.
1. Small size, reduce the area occupied.
2. The control system is concentrated in the spindle box, variable speed flexible, convenient, feed safety insurance.
3. The basic large-scale use of high-quality materials molding casting, after aging treatment, with high-precision machine tool processing, with high accuracy.
4. The guide surface are hardened, the spindle using nitriding treatment, to extend the service life.
5. Gear with BH carburizing technology to extend the service life.

Model	Z3040X10/13
Max. Drilling capacity(mm)	Cast iron 40/steel 32
Distance from spindle nose to table surface (mm)	260-1150
Distance between spindle axis and column surface (mm)	360-1300
Spindle travel (mm)	200
Spindle taper	MT4
Spindle speeds range(rpm)	75,130,240,380,660,1200
Spindle feed range (rpm)	0.10,0.16,0.25
Rocker rotary angle	360
Motor power (kw)	2.2
Movements motor power (kw)	1.1
G.W (Kg)	1400
Overall dimension(mm)	1800x810x2300

Factory Direct Sale Universal Radial Drilling Machine (Z3040X10/13) Details:
Factory Direct Sale Universal Radial Drilling Machine (Z3040X10/13) In Workshop:
Factory Direct Sale Universal Radial Drilling Machine (Z3040X10/13) In Mass Production:
If any questions about
Factory Direct Sale Universal Radial Drilling Machine (Z3040X10/13)
Pls Feel Free To Contact Me Via Mobile+8613346326288 In Convenient
