OEM SUS 316 304 Volume He Heat Exchanger

OEM SUS 316 304 Volume He Heat Exchanger

US$200.00-2,000.00 1 Piece (MOQ)

Basic Info.

Material
Stainless Steel
Pressure
1.6MPa≤p<10.0MPa
Storage Medium
Moncombustible/Nontoxic
Pressure Level
Low Pressure (0.1MPa≤p<1.6MPa)
Condition
New
Pressure Vessel
Pressure Tank
Transport Package
Wooden Packaging
Specification
ISO9001: 2008
Trademark
JIEMA
Origin
Guangzhou China
HS Code
847989999
Production Capacity
10 Sets/Per Month

Product Description

OEM SUS 316 304 Volume HE Heat Exchanger

Product Description
Description:
The high-effect heat-exchange component--floating coiled tube is adopted in volume heat exchanger to heat the water in the tank layer by layer until temperature of the outlet reaches the preset value and generates domestic hot water. Volume heat exchanger with floating coiled tube is a new type of water heating equipment which is extensively applied in sanitary water heating system in schools, hospitals and hotels.
Product Parameters
Designed Pressure:
Coiled tube: 1.6MPa
Tank: 0.6/1.0/1.6MPa
Component Materials:
Coiled tube: Stainless steel No.304 and red copper
Tank: Stainless steel No.304 and carbon steel
Features
Features:
1>.Quick startup:Due to the special structure of this product, the hot water generated from it can quickly reach the hot water outlet on the top of the tank, and therefore can provide hot water without the need of heating most part of the cold water.
2>.High heat transfer coefficient:With high-effect heat transfer element featured by high heat transfer coefficient and continuous micro-dithering of floating coiled tube in the process of heat exchange, floating coiled tube can realize dynamic heat transfer and substantially improve the performance of heat exchanger.
3>.Remote possibility for fouling:As floating coiled tube is adopted in the heat exchanger, and the fluid that easily forms turbulence has fairly strong flushing effect on the wall surface of heat-exchange tube, the possibility for fouling is remote.
4>.No cold water area:high cubic utilization rate: This product heats the cold water at the bottom of the tank all the time. When the water supply volume is lower than the quoted water supply capacity, it will gradually heat all cold water in the tank without leaving any cold water area to maintain maximum stock of hot water. When the water supply volume is higher than the quoted water supply capacity, the hot water stored in the tank and the water heated instantly will be supplied to withstand the peak of water consumption.
5>.Water sanitation:Multiple groups of floating coiled tubes are set in the heat exchanger. The unique pagoda structure allows for quick heating, uniform temperature, and constant temperature of outcoming water without the formation of dead water area. Therefore, hot water will not generate bacteria in the heat exchanger and hereby can ensure cleanness and sanitation of water.

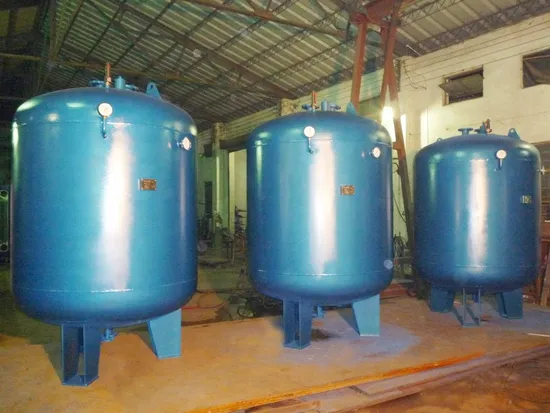

Factory working Corner:
System Application Chart of Volume Heat Exchanger
Volume Heat Exchanger technical parameters :
volumetric heat exchanger technical parameters
(heat source:saturated steam 0.4Mpa or not hot water 90 Celsius ,cold side outlet temperature 60 Celsius )
Type thermal load 104kcal/h volume nominal diameter boundary dimension design pressure equipment net wgight
steam hot water m 3 mm mm Mpa kg
JMF2-1.0-1000 20 10 1.0 1000 φ1000*1860 0.6/1.0/1.6 320/405/530
JMF3-1.0-1000 30 15 345/430/555
JMF4-1.0-1000 40 20 370/455/580
JMF4-1.5-1000 40 20 1.5 1100 φ1100*2180 0.6/1.0/1.6 425/535/695
JMF5-1.5-1000 50 25 450/560/720
JMF6-1.5-1000 40 30 757/585/745
JMF4-2.0-1200 40 20 2.0 1200 φ1200*2300 0.6/1.0/1.6 530/665/935
JMF6-2.0-1200 60 30 580/710/985
JMF8-2.0-1200 80 30 630/760/1035
JMF6-3.0-1400 60 30 3.0 1400 φ1400*2685 0.6/1.0/1.6 655/830/1170
JMF8-3.0-1400 80 40 705/880/1220
JMF10-3.0-1400 100 50 750/930/1270
