Reliable Rubber Mixing Mill Machine with Adjustable Roller Gap

Product Description

Introducing the Compact Two Roll Open Rubber Mixing Mill (XK-560), a top-tier choice for manufacturing. This piece of equipment excels in silicone mixing, rubber two-roll milling, and compound mixing, ensuring unparalleled efficiency and precision.
Supply Range
Model Selection: Delve into our extensive range featuring models such as XK-160, XK-250, XK-300, XK-360, XK-400, XK-450, XK-560, XK-660, and XK-710, each designed to cater to diverse production needs.
Gearbox Excellence: Equipped with the ZSF series hardened teeth gearbox by Guomao, ensuring robust and reliable performance.
Advanced Transmission System: Utilizes a roller ball bearing bush with bearings sourced from the renowned Wafangdian, optimizing performance and longevity.
Gap Adjustment Flexibility: Offers both manual and motorized adjustment options, providing precise control to meet varying production requirements.
Lubrication Versatility: Choose between manual and automatic types, with options for grease, thin oil, ensuring maintenance ease and operational efficiency.
Stock Blender Options: Available in silicone material type and hard rubber type, tailored to suit specific blending needs.
Comprehensive Safety Devices: Features an emergency stop button, knee touch, foot kick, and electric-hydraulic brake device for enhanced user safety.
Product Description
Our Rubber Mixing Mill is expertly designed for mixing and kneading raw rubber, synthetic rubber, thermoplastics, or E.V.A. with chemicals to produce refined final materials. These materials are perfectly suited for further processing with calenders, hot presses, or other machinery, enabling the creation of exceptional rubber or plastic products.

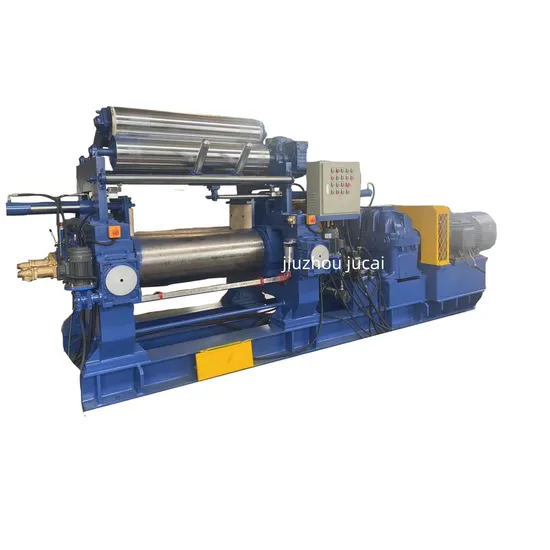

Machine Display
Product Parameters

Parameter/model		XK-160	XK-250	XK-300	XK-360	XK-400
Roll diameter(mm)		160	250	300	360	400
Roll working length (mm)		320	620	750	900	1000
Capacity (kg/batch)		4	15	20	30	40
Front roll speed (m/min)		10	16.96	15.73	16.22	18.78
Roll speed ratio		1:1.21	1:1.08	1:1.17	1:1.22	1:1.17
Motor power (KW)		7.5	18.5	22	37	45
Size (mm)	Length	1104	3230	4000	4140	4578
	Width	678	1166	1600	1574	1755
	Height	1258	1590	1800	1800	1805
Weight (KG)		1000	3150	5000	6892	8000

Parameter/model		XK-450	XK-560	XK-610	XK-660	XK-710
Roll diameter(mm)		450	560/510	610	660	710
Roll working length (mm)		1200	1530	2000	2130	2200
Capacity (kg/batch)		55	90	120-150	165	150-200
Front roll speed (m/min)		21.1	25.8	28.4	29.8	31.9
Roll speed ratio		1:1.17	1:1.17	1:1.18	1:1.09	1:1.15
Motor power (KW)		55	90/110	160	250	285
Size (mm)	Length	5035	7100	7240	7300	8246
	Width	1808	2438	3872	3900	3556
	Height	1835	1600	1840	1840	2270
Weight (KG)		12000	20000	44000	47000	51000

1. Is your company a trading firm or a manufacturing factory?
We are an integrated entity combining both factory and trade, with 30 years of expertise in designing and producing rubber machines.
We are open to OEM collaborations, ensuring tailored solutions for our clients.
2. How do I select the most suitable product?
Our expert team is ready to provide the optimal recommendation, tailored to your specific product needs and specifications.
3. Do you offer customization services?
Absolutely! We provide both standard and customized machines to suit your exact requirements. Share your specifications with us, and we will strive to fulfill your expectations.
4. What warranty do you offer?
Typically, our products come with a one-year warranty. During this period, we offer technical support and part replacement when needed.
If necessary, our engineers are available to travel to your location for enhanced service support.
5. How is your machine packaged for safe transport?
Our machines are securely packed in standard export wooden boxes, ensuring they remain undamaged. We have successfully shipped numerous machines overseas by sea or air without any issues.
6. What is your order process?
Our seamless order process includes: Inquiry - Quotation - Communication - Order Confirmation - Deposit Payment - Production - Testing & Debugging - Balance Payment - Packing - Delivery - Customer Receipt - After-Service. Rest assured, we manage every step with precision to ensure a satisfying experience.
