Precise Control Wire Straightening and Cutting Machine with Warranty

Product Description

Straightening and Cutting Machine
Product Description
The equipment is mainly used for automatically straighten stainless steel wire, galvanized wire, aluminum wire, cooper wire, and cut automatically according to the preset lengh.
Automatic wire straightening and cutting machine operation and maintenance are simple. It is mainly used for straightening and cutting the wire with diameter less than 6mm and the maximum cutting length is less than 2 metres.(But we can set the length of wire according to customer's requirement).
The straightening machine is composed of a frame, a straightening mechanism, a feeding mechanism, a cutting mechanism, a linear gun and a wire frame.
The straightening part is composed of a straightening shaft, a straightening pressing block and two bearing blocks to complete the straightening work of the wire, the power is the motor mounted under the machine frame, and the straightening shaft is rotated at a high speed by the triangular tape.
The feeding wheel/ the cutter, etc. are made of excellent alloy steel and are vacuum-treated to make them wear-resistant and have a long service life. Straightening block are made of cast iron\alloy\plastic king, etc. All shafts are made of 40CR or 45# steel and are quenched and tempered. The gears are all made of forging blanks, quenched and tempered and tooth surface high-frequency quenched, the hardness is up to HRC55-58 degrees. It is suitable for galvanizing wire, powder drawing wire, water drawing wire and stainless steel wire to ensure no flaw on the surface of the wire.

Mechanical Specifications

Straightening and Cutting Machine
Wire diameter	2.5 mm-5 mm and 5 mm-8 mm
Traction Speed	30-40m/min
Cutting Length	2000-6000 mm
Error of Cutting Length	≤1mm
Straightening accuracy	≤1mm
Motor power	1.5/2.2kw
Weight	350KG

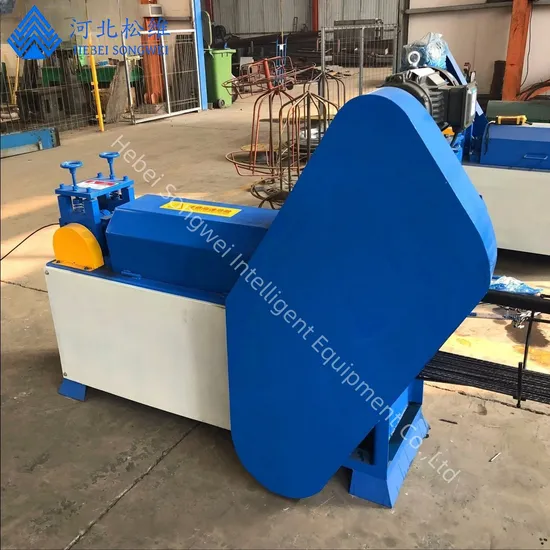

Detailed Photos

Packaging & Shipping
Related Products
Water tank wire drawing machine Straight line wire drawing machine
Customer and Market
Friends from all over the world. All key spare parts of the company are independently produced by us to control their processing accuracy and quality, thereby extending the service life of the machinery.The company has taken the lead in passing the ISO9001:2008 quality system certification and the EU CE product safety certification in the same industry, providing reliable assurance for excellent product quality.
The company's machinery and equipment sell well in China, and are exported more than 100 countries and regions such as Romania, Lithuania, Turkey, Poland, Belarus, Ukraine, Russia, Kazakhstan, Saudi Arabia, Egypt, Algeria, South Africa,Vietnam, Thailand, India, Pakistan, Philippines, Indonesia, Australia, Mexico, Colombia, Argentina, Bolivia, Brazil, etc.
After more than ten years of development, the company has grown into one of the leading enterprises in the industry. We adhere to the tenet of "customer first, technology leading". In the future, the company will comprehensively promote industrial development and upgrading, and build the world's leading steel processing equipment. Company Profile
Factory History
Hebei Songwei Intelligent Equipment Co., Ltd. was established in 2002 and is located in Hebei Province, China. It is a high-tech enterprise specializing in the design and manufacturing of metal wire drawing equipment, galvanizing equipment, and their auxiliary equipment. It enjoys a high reputation in the metal wire drawing and processing industry.
Factory Strength
The company currently has 3 production and processing factories, with 8 workshops including metal cutting, precision machining, equipment assembly, and electrical assembly, with a total area of approximately 30000 square meters. The company has advanced processing equipment such as plasma welding, shearing machines, and CNC lathes.
Development Goals
Hebei Songwei Intelligent Equipment Co., Ltd. is committed to international development and participates in at least four international exhibitions each year, taking this opportunity to showcase the company's advanced technology and products to the world and deepen exchanges and cooperation with global partners. FAQ
Q: Are you a manufacturer or a trading company?
A: We are manufacturers. We have a group of high-quality engineers and experts who have been engaged in the field of wire processing equipment.
Q: What are your company's main products?
A: We specialize in the research and manufacturing of machinery such as wire drawing machines, galvanizing lines, annealing industrial furnaces, and nail making machines.
Q: What can we provide to customers?
A: Our professional production and technical personnel can train our customers' employees to ensure their smooth production. And we will provide after-sales service to our customers.
Q: How long is the warranty period for the machine?
A: Warranty period of one year (from the date of completion of mechanical debugging in the buyer's factory).
Q:What machinery does your company mainly produce?
A:Our main products include straight line wire drawing machine, pulley wire drawing machine, water tank wire drawing machine, galvanized wire production lines, annealing furnaces, Welding wire copper plating production line, Welding rod production line, nail making and coils nails machines, etc.
Q: Why did I choose your company?
A: We have over 10 years of professional experience in the production of cable machinery, High security products.
We have a team of experienced technical workers and engineers.
We can support overseas training of engineers.
We can customize designs and accept customer sample designs.
We can provide after-sales service to customers.
Note:
Please provide following information if you want the directly quotation:
1. Wire Material:
2. Inlet Wire Diameter range:
3. Outlet wire Diameter range:
4. Where and what does the wire use for:
