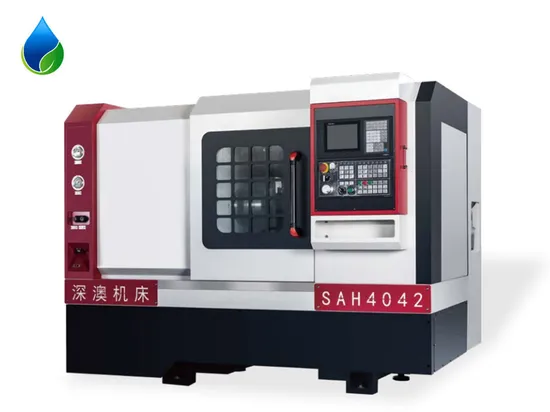

Full Automatic Horizontal CNC Lathe Precision Bench Machine

Product Description

Beautiful and easy to operate full servo CNC machine with reasonable structure
Product Description
Suitable for: This machine tool is suitable for the short axis and the disk type parts processing
Feature
The appearance of this machine is beautiful and generous, the structure design is reasonable, easy to operate and use. The bed is 45° mono-block casting moulding, with stable structure and good rigidity.Z and X direction adopts Taiwan shangyin's ball linear guideway,with high rigidity and high precisionThe spindle unit adopts servo electic spindle developed oy our factory, featuring high rotationaspeed, high torque at low speed and stable performance. The tailstock adopts liquid automatic expansion and contraction control, which realises automatic drilling and eiecting actions with the tailstock
Product Parameters

Bed structure	Bed tilt angle	45°
	Guideway form	X/Z rails
	Guideway width mm	403
	Guideway specification	Hgh30ca
Machining capacity	Max.rotary diameter of lathe body /mm	400
	Maximum turning diameter of lathe body /mm	400
	Max.turning diameter on the lathe support board /mm	120
	Max.workpiece length mm	370
	Max.barthrough-hole diameter /mm	54
Stroke	x-axis mm	460
	Z-axis mm	420
Feed	X-axis fast v m/min	12
	Z-axis fast v m/min	12
	X-axis sm torq N.m	7.7
	Z-axis sm torq N.m	7.7
Spindle	Spindle End Form	A2-5
	Spindle through hole diameter /mm	56
	Spindle hole taper	Morse 6
	RPM r/min	100-4000
	Main Motor Power Kw/rpm	7.5/1500
	Chuck Form (Standard)	Hydraulic collet
	Chuck Form (Optional)	Hydraulic chucks
	Chuck Size Inch	6"
Tool holder	Turret Type	Chip displacer
	Turret centre height mm
	Tool size	20×20
Tailstock	Lathe rear seat form
	Tailstock stroke mm
	Tailstock sleeve taper
Power	Total capacity Kw	10
	V V	380
	I A	23
Gauge	WT kg	1500
	SIZE LxWxH(mm)	2140×1600×1680
Other	Configuration Buy up	Servo-powered turret,chip conveyor
	Type of chip conveyor Buy up	Chain plate type

Detailed Photos
hot selling product

Company Profile
Zhejiang Haochen CNC Equipment Co., Ltd. is located in Taizhou, Zhejiang, China. Our company specializes in the manufacturing of valve machines and aluminum product machines. Our main products include CNC Lathe Machines, CNC Transfer Machines, Automatic Forging Machines, CNC Machine Centers, Long Bar Feeder CNC Lathe Machines, Testing Machines, and more.
We have several engineers who are experts in structural design and possess strong product development capabilities. We provide design and manufacturing services for various types of machines and custom-structured machines for our clients.
Over the past 20 years, we have been supplying high-quality machines to many world-renowned brands in countries such as India, Bangladesh, Egypt, Turkey, Tunisia, Vietnam, Australia, the United States, and Ireland.
We look forward to establishing business relationships with everyone and hope to expand our business through joint efforts. We look forward to your inquiries.
FAQ
1. How can l choose the most suitable machines ?
A:Please tell me your specifications,we can choose the best model for you,or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.
2. Who are we?
A:We are based in Zhejiang, China, start from 2020,sell to Africa(30.00%),South Asia(20.00%),South America(10.00%). There are total about 11-50 people in our office.
3. How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final inspection before shipment;
4. What can you buy from us?
A: CNC lathe machine, CNC transfer machine,CNC milling center, CNC turn-milling compound lathe,Punching machine ball machine, assembly machine and so on .
5. What's the MOQ?
A: 1 set.
