New Business Opportunity Cost-Effective Semi-Automatic Toilet Paper Production Line for Efficient Manufacturing

Product Description

XY-TQ-A-E New Business Opportunity Cost-Effective Semi-Automatic Toilet Paper Production Line for Efficient Manufacturing

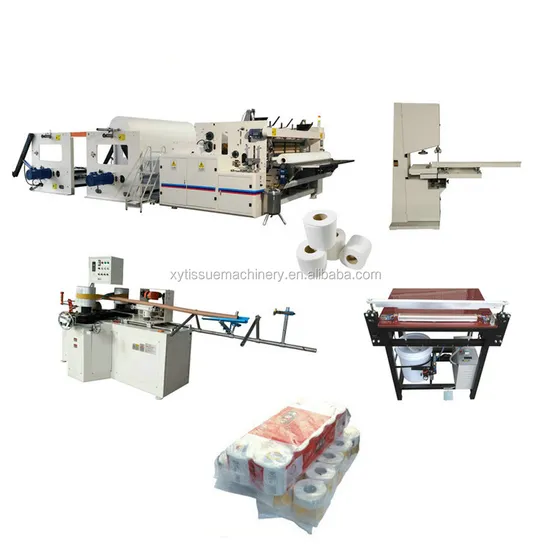

This toilet tissue roll paper production line is composed of
One set of XY-TQ-1575B Full-automatic Rewinding and Perforated Toilet Paper Machine
One set of XY-AI -300 Toilet Paper Cutting Machine
One set of XY-AI-398-B Plastic Bag Sealing and Packing Machine
One set of XY-SD-A paper core-making machines.
Production Process: Unwinding---Embossing---Tail gluing---Edge Trimming---Rewinding---Cutting---Packing
1>>XY-TQ-1575B Full Automatic Toilet Paper Rewinding Machine Width of jumbo roll : Max.2850mm Embossing Roll: One set

XY-TQ-A-A
Parent roll width	1750mm--2800mm
Parent roll diameter	Up to Φ1200mm
Core inside diameter of the parent roll	Φ3"(76.2mm)or as requested by customer
Machine speed	200-230m/min depending on model
Operating speed	200m/min, 3 cycles(logs)/min
Finished roll outside diameter	Toilet paper:Φ90-110mm
Perforation pitch	Variable, any size needed
Sheet count	Increments of one sheet
The inner diameter of core of the finished product	Φ40-60mm
Quality of raw material	1 or 2 plies, 14-20gsm
Installed power	7.5Kw~23Kw
*Please point out other specifications

2>>XY-AI-300 Semi-automatic band saw cutting machine Production speed : 10-30 cuts /min Max.cutting length:300mm Cutting diameter: 80-150mm 3>>XY-AI-398-B Plastic Bag Sealing Packaging Machine Packing Speed: 10-20 bags/minute XY-SD-A paper core making machine
Technology Parameter
1.High Speed:15-25 m/minute
2.Roll Core diameter:30~75mm (2~6 ply)
3.Installed power:4.5Kw (380V 50Hz)
4.Overall Size of Equipment (L×W×H m):3050X850X1650mm
5.Weight of Equipment:1000kg
Please contact us to earn more details of XY-TQ-A-E Semi-automatic toilet paper production line How much is this machine?1. Please tell me what's the width of jumbo roll(raw paper) will you process?2. Do you need one set of embossing device or two?3. What's the daily capacity of machine do you need?Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?1. Good quality of machine with reasonable price.2. Good service: Any question from customer will be reply within 24 hoursFor all the machines we sell, we will offer two-years guarantee for free and all life maintenance.We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city. Company Information Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery anufacture.Professional supplier of:1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)3) Facial Tissue Machine (2-8 output lanes)4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)6) Pocket Tissue Machine(mini and standard size)7) All kinds of Tissue Paper Cutting and Packing Machine8) Another Household Paper Equipments and Production Line.If you need more information about these machine,please feel free to contact me! Welcome to contact us to get more details !We can design the machine according to your request.
