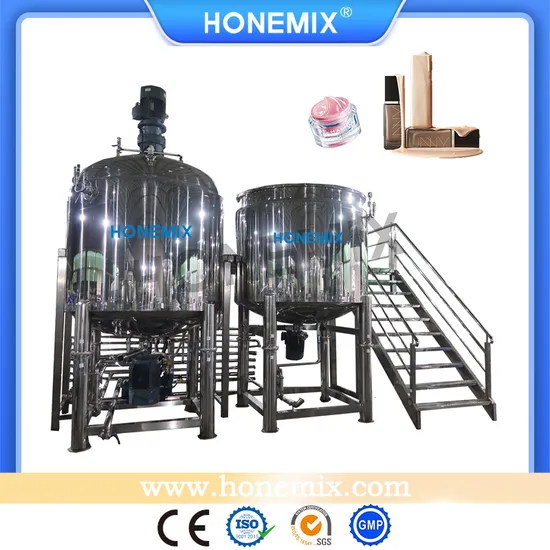

Hone 3000L Hair Conditioner Cream Homogenizer/Homogenizing Mixer Tank Hair Dye Making Machine Cosmetic Paste Vacuum Mixer Emulsifier Equipment

Product Description

Hone Machinert with a strong team and imported technical support. We supplier of Cosmetic/Chemicals/Food Machinery with more than 15 years experiences. Quality and Service is Guaranteed. such as Vacuum Emulsifying Mixer. Homogenizer Mixers, liquid making machine, filling machine, capping machine, labeling machine, etc. Our main business is provide you complete solution from A to Z with Turnkey service. All of our machines meet hygiene standard with CE certification
Product Description Hone 3000L Hair Conditioner Cream Homogenizer/Homogenizing Mixer Tank Hair Dye Making Machine Cosmetic Paste Vacuum Mixer Emulsifier Equipment
Our HVE Series Vacuum Homogenizer Mixer, When the materials are under the vacuum condition, it makes use of the high shear emulsifier to distribute one or several another continuous phase rapidly and evenly. The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the machine effect. By the operation of hydraulic shearing, centrifugal extruding, impacting, breaking and turbulence for over 199 thousand times per minute, the materials will be dispersed and emulsified instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will achieved.
Vacuum Emulsifying Mixer consists of main pot, water/ oil tank, HMI control system, homogenizer, mixing system, heating & cooling system, vacuum system.
Fixed type design, cost efficientPositive pressure discharge for convenience discharge and cleanJacket electric/steam heating, cooling in the jacket as wellFrame wall scrape agitatorHomogenizer at bottom of tank, strong power to emulsion materials quicklyIndependent electric cabinet control systemAll contact parts SUS316L Material, Other parts are SUS304, GMP standardEquipped Water and Oil melting tankOption functions:HMI control systemPipes and Fittings for water supply, heating, cooling, dischargeFlow meter, Weighing scaleAutomatic valves control systemCIP clean system
Detailed Photos
Fixed Lid PartsMan-HoleMaterial suction inletVacuum presssure gauge
Vacuum port
Vent filter
Positive pressure inlet
Perfume hopper
CIP spray ball
LED Light
Sight windowFrame Wall Scrapper MixerSUS316L TWO WAYS HELIX Wall scrapper mixerPTFE scraperFixed propeller45degree blades on opposite angles to make sure mixture completeSiemens motor drive (ABB is optional)0-65rpm with variable speed control outlet circulation HomogenizerSUS316L Homogenizer
Siemens motor drive (ABB is optional)
0-3600rpm with variable speed control Oil and Water Tank
For Pre-Heating and Pre-Mixing Operation panel
Button or PLC are option.
Use Famous Parts of Electrical components
About Configure:
Product Parameters

Capacity	Homogenizer		Agitator		Vacuum pump		Heating
	KW	RPM	KW	RPM	KW	Limited	Electric	Steam
50L	2.2	0-3600	1.1	0-60	0.75	-0.08Mpa	18	9
100L	4	0-3600	1.5	0-60	1.1	-0.08Mpa	21	12
200L	5.5	0-3600	2.2	0-60	1.5	-0.08Mpa	24	16
300L	7.5	0-3600	3	0-60	2.2	-0.08Mpa	27	24
500L	11	0-3600	5.5	0-60	3	-0.08Mpa	30	36
Customize	According to the URS

Recommend Product
Packaging & Shipping
Company Profile
FAQFAQ 1.Are you Factory or Trading company ?We are integrated industrial and trade enterprises, Our factory located in an ancient capital Yangzhou, and we found HONE company in Guangzhou to search more business opportunities at domestic and overseas. You could ask to check or test machines anytime to the factory, we will arrange everything for you.2. Why your machine similar with other supplier?We have been in this industry for more than 15 years, We design machines by ourselves with advanced technology. Appearance just a part of machine, Quality and Service is more important than it.3. I'm new in our industry, but I'm planning to setup a factory, What can I do?We offering Turnkey service from A to Z to customers, we will can suggest customer the most suitable machines according to their Formula, Raw material. Support you Manufacturing- Installation- Training- Maintenance- Technical Support. We could also customize machines according to your demands, We could send our engineer to your factory to install machines and train your workers of operation and maintenance.4.What kind of machines can you supply to customer?We could offer various kinds of machines and whole production line.(1) Cream, paste Products,
In cosmetic industry: face cream, body cream, washing cream, vaseline etcIn food industry : sauce, ketchup, tomato paste, mayonnaise, mustard, chocolate etcIn chemical industry: welding paste, ink, paint, pigment etc.Production line for them: RO water treatment- vacuum emulsifying machine- storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc(2) Liquid productsshampoo, lotion, liquid soap, detergent, juice, solution etc.Production line for them: RO water treatment - liquid wash mixer- - storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc(3) Make-up products: Lipstick, lip gloss, nail polish, marscara etcMachines for them: homogenizer mixer, colliod mill, lipstick filling machine, frezzing machine etc(4) Perfume products:
We have many types offer to you and we can do customized, More details inquiry us directly
