1.2 Ton Mini Crawler Digger Factory Excavator Manufacture

Product Description

Product Description

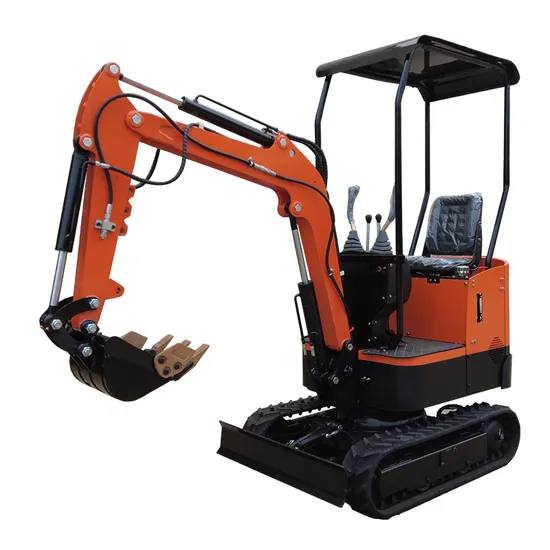

Mini excavator JYD12
Mini Excavator -JYD12 is a kind of mechanical equipment suitable for all kinds of small engineering construction. It has the characteristics of small size, light weight and easy operation. JYD12 with compact design, easy to work in a narrow space, strong adaptability. And the use of efficient engines, high fuel efficiency, reduce operating costs. JYD12 adopts the advanced hydraulic transmission system to ensure the stable operation of the equipment under complex working conditions. A variety of accessories can be selected according to the construction needs, such as drill, crushing hammer, hydraulic shear, etc., to achieve a multi-purpose machine.
Our advantage
01 EPA engine-Can be equipped with a Euro 5 diesel engine,high torque power, energy saving and fuel saving.
02 JYD12 as a mini excavator, the return on investment is fast, the operation efficiency is high, the return on investment is short.
03 Can be installed with various accessories - one machine multi-purpose to adapt to various working conditions.
04 High-end well-known hydraulic components - Ensure high reliability of the hydraulic system.
05 Small size, light weight, strong adaptability, can work efficiently under various working conditions.

Specifications
(m3)	Bucket Capacity	0.03
Engine Model	KOOP	192F
(KW)	Power	7.6
(TON)	Operation Weight	1.2
/	Working device form	backhoe

Machine size
/	Dimension Length*Width*Height	2170mm*940mm*2200mm
(mm)	Wheel track	420
(mm)	Track grounding length	1250
(mm)	Minimum ground clearance	385
(mm)	Chassis width	930
(mm)	Track width	180
(mm)	Transport length	2170
(mm)	Total vehicle height	2200
(mm)	Turning radius	1550

Working range
(mm)	Max.Digging Height	2600
(mm)	Max.Dumping Height	1850
(mm)	Max.Digging Depth	1600
(mm)	Max.Digging Radius	2900

Certifications

Packaging & Shipping

Company Profile
Made to Move the Dream
EPCN is a collection of professional research and development, production, sales micro excavators, mini excavators, small excavators,Trunk excavators, agricultural excavator and new energy excavator modern enterprise, the company is located in Shanghai city, with thousands of square meters has the international advanced level of modern production workshop and R&D technical center. At present, the company has more than 1800 employees, including 200 professional engineers and technicians, 50 senior engineers and 100 senior technicians.
Company research and development production of EP and JY series hydraulic crawler mini excavator, complete specifications varieties, annual output of 0.8 tons, 13.5 tons of mini excavators more than 5000 sets. In 2020, through the unremitting efforts of the research and development team, China's first pure electric micro-excavator with lithium battery was introduced.
Prior to peer development, superior to peer performance; In the future, we will continue to take "independent innovation" as the source of power, develop towards high-end products, internationalized operation, brand differentiation and other directions, march towards a higher stage and a broader market, and become the creator of world value in the field of equipment manufacturing!Prior to peer development, superior to peer performance; In the future, we will continue to take "independent innovation" as the source of power, develop towards high-end products, internationalized operation, brand differentiation and other directions, march towards a higher stage and a broader market, and become the creator of world value in the field of equipment manufacturing!
Contact us
HOW TO CONTACT EPCN

Exhibition hall address(Physical exhibition hall or official broadcast room orders can enjoy discounts):
Shanghai city:No.1178 Nanfeng road, Fengxian District.,Shanghai City,China.
Anhui Province:No.18, Shengli road,Jinan District., Liuan city,China.
Factory address (For orders of more than 20 sets, please come to the factory for interview):
No.8 Shanbo Road, Jining High-tech Zone, Shandong Province, China.
FAQ
Why choose EPCN?
Q1: How long is the Warranty for EPCN product?
A1: EPCN provides 12 months or 1000 hours for the whole machine from on boarod time.
Q2: How about the delivery time?
A2: Usually EPCN producing time is 7- 30 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: What kind terms of payment can be accepted?
A3: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
Q4: Can EPCN provide customized products? OEM products or ODM products?
A4: Yes, EPCN can provide customized products per your request, both OEM and ODM are acceptable, We do a lots of non-standard products, welcome your special request.
Q5: Could we request our own color for the products?
A5: Yes, of course, you just need to offer us the RAL code
