Product Description

80um SI APD Preamplifier Module
CR800AH-1064-150M-LN
Introduction

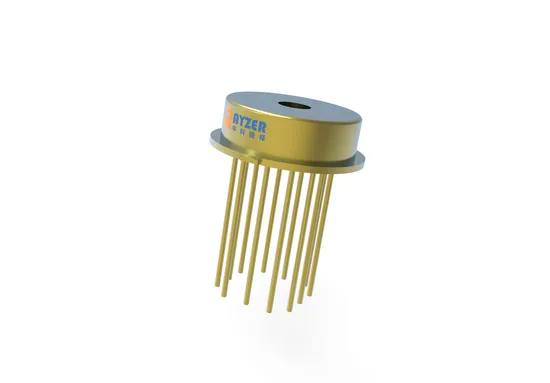

The CR800AH-1064-150M-LN includes a 800um SI Avalanche Photodiode with a hybrid preamplifier for the use in high-speed, ultra-low light detection, laser range finding, LIDAR, and free space communication.
Features 1. Built-in 800um SI APD+TIA 2. High sensitivity: ≥250kV/W 3. High bandwidth: 150Mhz 4. Wavelength range: 400~1100nm 5. Low noise and high reliability 6. TO8 package with flat window 7. Enhanced overload protection
Applications 1. LIDAR 2. Laser range finding 3. Free space optical communication (FSO) Absolute Maximum Ratings

Parameter	Unit	Symbol	Rating
Reverse breakdown voltage	V	V R	VBR
Operating temperature	ºC	T C	-40~+85
Storage temperature	ºC	T STG	-55~+100
Maximum optical input power	mW	P in	100
Module mains voltage	V	Vcc/V EE	±5
Power dissipation	mW	Pw	250
Soldering temperature(time)	ºC	-	300(10s)

Optical/Electrical Characteristics (T=25ºC , unless otherwise stated)

Parameter	Symbol	Value			Unit	Test conditions
		Min	Typ	Max
Response Spectrum	λ	400~1100			nm
Active Diameter	D		800		um
Reverse breakdown voltage	VBR	350		460	V
Operating voltage	VR	0.95×VBR			V	M=100
Responsivity	RV		250		kV/W	M=100, 1.064um@τ=10ns
Dynamic range	DY	25			dB	M=100, 1.064um@τ=100ns
-3dB bandwidth	BW		150		Mhz
Rise/Fall time	tr		2.3		ns	10%-90%
Noise Equivalent Power	NEP		150		fW/√Hz	M=10,f=100kHz, △=1hz
Output impedance	RO		50		Ω
Output Voltage Swing	VO	0.7			V
Positive Supply Current	ICC			30	mA
Negative Supply Current	IEE			10	mA	50Ω Load
Temperature coefficient of Vop for constant gain	γ		2.4	3.0	V/ oC	-45~+85ºC
Concentricity	△D			30	um

Order information
CR800AH-1064-150M-LN

CR-1-2-3-4
1-High Responsiveness Target Surface	2-Spectrum Response	3-Responsive Bandwidth	4-Customization Requirements
200AH: 0.2mm 800AH: 0.8mm 1000AH: 1.0mm 3000AH: 3.0mm …	1550: 1550nm 1064: 1064nm 940: 800~940nm …	30M: 30MHz 50M: 50MHz 70M : 70MHz 100M: 100MHz …	00: NO LN: Low noise …
