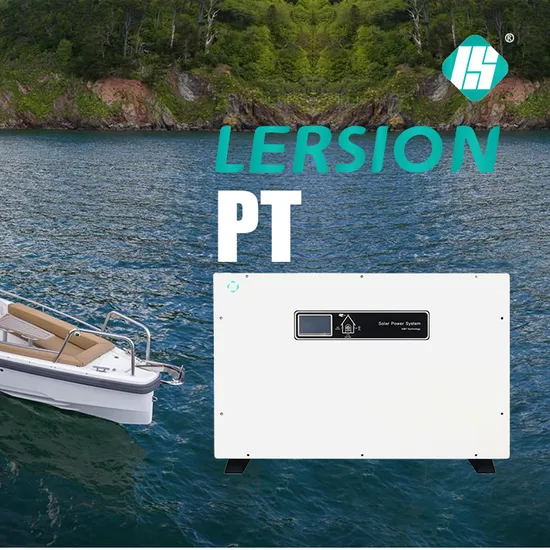

PT Series Solar Inverter 8kw 8000W 10kw 12kw 48V 8000 Watt Hybrid Inverter for Home School Office Hospital

Product Description

PT Series Build in MPPT Controller 48V/150A/10Kva off Grid Solar Inverter with wifi monitoring Detailed Photos

Model No.	PT10K	PT12K	PT15K
Rated Power	10KVA	12KVA	15KVA
Peack Power	30KVA	36KVA	45KVA
Battery Voltage	48V	48V	48V
Built in MPPT charger
Max Charge current	150A	180A	200A
PV input Voltage range	65V to 250V
Max PV Input	7200W	8640W	9600W
AC Input
Phase	L+N+G
Input voltage	110V or 220V.110:85V to 138V,220v:170V to 275V
Input frequency	45HZ to 65HZ
AC Output
Output voltage	Inverter Mode:110V or 220v,+-5%,AC mode:110V or 220v,+-10%
Frequency range(AC Mode)	Automatic tracking
Frequency range(Inverter Mode)	50HZ/60HZ +-1%
Overload capapcity	Under AC mode: 100% to 110%:10 mins 110% to 130%:1 min over 130%:1s
	Under Inverter mode: 100% to 110%:30s 110% to 130%:10s over 130%:1s
Conversion time	less than 10ms for typical loads
Waveform	Pure sine wave
Effcienty	More than 85%
Working conditions
Operation temprature	0 to 40 degree Battery life decreases at ambient temperatures above 25 degrees Celsius
Operation humidity	less than 95% without condesing
Operation Altitude	<1000m(every increase of 100m,it will reduce output of 1%) max 5000m
Noise	less than 58dB the distance to machine is 1 meter
Management
Display	LCD+LED
Communication interface	RS485

Model No.	PT10K	PT12K	PT15K
Rated Power	10KVA	12KVA	15KVA
Product Size(MM)	800*630*320	900*630*320
Packing Size(MM)	900*725*480	1025*740*480
Net Weight(KGS)	108	116	129
Gross Weight(KGS)	130	140	153

FAQ
1. What is your company strength?
Strong R&D Team Headquartered in Shanghai, Lersion R&D team has over 50 engineers. Relying on Shanghai's rich talent resources and innovating mechanisms, through deep cooperation with Shanghai universities, we design and continually improve solar inverters and battery circuit,and have obtained over 30 patents.
2. What is your product advantage?
1KW-500KW Full Series Solar Inverter available Germany Infineon IGBT Module America DSP Chip Technology Color Touch screen *More Durable*More Safe* more stable *High End LiFePO4 & Gel battery Expert Grade A Lithium Battery Long cycle life >6000 cycles High Efficiency & Fast Charging Intelligent Battery Management Compatible with Various Inverters
3. How do you control the product quality?
a) For materials, we have IQC departments and the IQC testing follow MIL-STD-105E standard. b) In production have 4 times function testing. c) All of our products with 100% burn-in testing. d) 100% QC testing before delivery.
4. Do you accept OEM/ODM?
Yes, we do.
5. Are you factory ?
Definitely.
6: Can you provide full solar system?
Yes,we provide full set soalr system ,with system design and full system equipments provided
7.How about the delivery time?
3 to 5 days for sample; 7-15 days for bulk order.
8.What is the warranty of inverter?
A4: 2 years ,3 years,5 years Etc
9: How to solve the technical problem?
24 hours after-service consultancy just for you and to make your problem to solve easily.
