Insulating Glass Machine Silicone Extruder Glass Sealing Machine

Product Description

Product Description

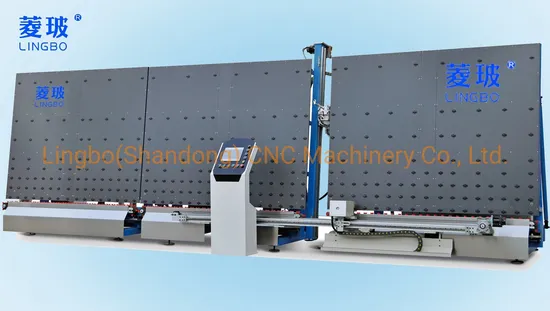

Insulating Glass Machine Silicone Extruder Glass Sealing Machine
1.Product Introduction
Insulating Glass Machine Silicone Extruder Glass Sealing Machine is one of our patented products, we adopt the world famous brand Japanese YASKAWA controlling system and servo system, to make sure the machine performance stable and reliable.
It is driven by the servo motors, and achieve the goal of the final sealing of the insulated glasses. The servo motor provides the accurate sealing of the angles and assuring high operating speed. So that this automatic glass sealing machine can automatically seal double glasses, triple glasses, and structural glasses, such as step glasses, facade glasses etc with high speed and high quality.
Product Parameters

2.Technical Parameter

Model	Max glass mm	Min glass mm	Glass Thickness mm	Gluing Depth mm	Gluing Depth mm	Gluing pressure MPa	Electrical Power KW	Pressure MPa	Max Dimension L*W*H
YH-FJX-2000*2500	2000*2500	300*500	12-50	5-40	3-18	35	3P 380V/1P+N220V 50Hz 8KW	0.6-0.8	8.05×1.5×2.9
YH-FJX-2000*3000	2000*3000	300*500	12-50	5-40	3-18	35	3P 380V/1P+N220V 50Hz 8KW	0.6-0.8	10.5×1.5×2.9
YH-FJX-2500*3100	2500*3100	300*500	12-50	5-40	3-18	35	3P 380V/1P+N220V 50Hz 10KW	0.6-0.8	10.5×2×3.55
YH-FJX-2500*4000	2500*4000	300*500	12-50	5-40	3-18	35	3P 380V/1P+N220V 50Hz 12KW	0.6-0.8	12×2×3.55

Notes: a. if you have special glass size, please note us, we can design the line for you;
b. If you have special power supply, please note us earlier as well, we can specially make the line for you.
Detailed Photos

3.Products Feature

SECTION ONE Full automatic sealing robot	Human-computer interface, succinct, adopts simplified thought designed operation interface, sealant output pressure and other parameters shown on screen in real-time, convenient to see and easy to operate. The machine frame is made by CNC processing center, spare parts processed with high standardization and could be interchanged, which improve convenience for maintenance and ensure long service life. Adopts memorial program, different glass parameters could be one key switched. Conveying wheels of backup plate are inlay-ed design, glass conveying is more stable. Touching screen with internet communication, long endurance and high speed.
SECTION TWO Full automatic sealing robot	Automatically finish linear sealing, easy and ensure long service life. Servo system adopts Japan Yasukawa, with stable performance, high operation speed and high precision sealant output. Available for sealing of single insulation and double insulation glass. Beautiful sealing surface, fulfilled without air line, corner fulfilled, four line surface is smooth no need corner repair. Double sealant supplying system, one key switch, could assemble two different kinds sealant. Automatic timing sealant exhausting function, avoid sealant concreting and blocking because of long time interval between two glass sheets sealing. Sealant mixing system adopts anti-blocking structure, easy washing.
Full automatic sealing robot Section 3	Electrical parts and cable are used imported brand, with long endurance. The machine is installed in assembly line, with high precision, ensuring stable working in long life. Glass supporters on conveyer belt adopt changeable V shape, it's convenient for maintenance with low cost. Compact design, heavier structure, less occupied space, machine is more stable. Synchronous conveying belt makes glass precise positioning. Analyzing from input-output ratio, it's more saving sealant, more economic, more beautiful and high efficient. Saving labor cost, suitable for glass deep processing factory.

4.Product Configuration Sheet

PARTS NAME	BRAND	COUNTRY OF ORIGIN
Robot Head Upright Servo Motor	YASKAWA	JAPAN
Robot Head Upright Servo Motor Driver	YASKAWA	JAPAN
Robot Head Rotation Servo Motor	YASKAWA	JAPAN
Robot Head Rotation Servo Driver	YASKAWA	JAPAN
Moving Back and Forth Servo Motor	YASKAWA	JAPAN
Moving Back and Forth Servo Motor Driver	YASKAWA	JAPAN
Input Section Servo Motor	YASKAWA	JAPAN
Input Section Servo Motor Driver	YASKAWA	JAPAN
Output Section 1 Servo Motor	YASKAWA	JAPAN
Output Section 1 Servo Motor Driver	YASKAWA	JAPAN
Auxiliary Sucker Servo Motor	YASKAWA	JAPAN
Auxiliary Sucker Servo Motor Driver	YASKAWA	JAPAN
MP2300s Servo Controller (Brain)	YASKAWA	JAPAN
Distributed I / O Expansion Module	M-SYSTEM	JAPAN
Photoelectric Switch for whole machine	OPTEX	JAPAN
Proximity switch for whole machine	AOTONICS	KOREA
AC Contactor for whole machine	LS	KOREA
Intermediate Relay for whole machine	HONEYWELL	U.S.A
Air switch for whole machine	LS	KOREA
A glue B glue Electromagnetic Valve	AIRTAC	TAIWAN
Pneumatic Cylinder for whole machine	AIRTAC	TAIWAN
Linear Guide Rail for whole machine	HIWIN	TAIWAN
Slider of Guide Rail for whole machine	HIWIN	TAIWAN
V-belt Back and Forth Motor	ZD	TAIWAN
Man-machine Touch Screen	WEINVIEW	TAIWAN

Why Choose Us

5.Why choose us
A.Our company is the only high-tech enterprise in Shandong Province in the glass processing industry, enjoying a series of favorable policies such as national finance and taxation;
B.We have our own independent R&D team, especially employing field top Korean experts, having more than twenty patent certificates;
C.Large customer group give us full communication and feedback, making us get a wealth of industry knowledge and equipment installation experience, which is much better to serve next customers;
D.Having complete after-sales tracking and service team, able to serve our global customers well;
E.Complete protection system for regional distributors to well serve local end customers;
F.7X24 online supports
