Qh 3 5 7 Layers Corrugated Cardboard Production Line Cardboard Making Machine
Basic Info.
Model NO.
1600 1800 2000
Condition
New
Certification
ISO 9001:2008, CE
Automation
Automatic
Suitable for
Paper
Paper Thickness
Normal Specification Paper
Product Name
Corrugated Cardboard Production Line
Speed
100-150m/Min
Other Name
5ply Corrugated Line
Function
Corrugated Cardboard
Transport Package
Film Packaging
Trademark
QH pack
Origin
Cangzhou City, Hebei Province
HS Code
84393000
Product Description

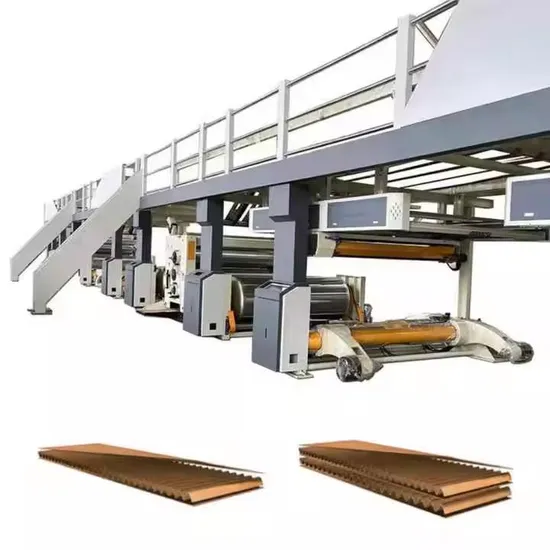

Product DescriptionINWJ150-1800- type five layer corrugated cardboard production line
Has passed the ISO: 9001-2000 Quality Management System Certification
Innovative Packaging Technology,Class brand
Name of machine:five layer corrugated paperboard production line
| Model | Equipment name | QTY | Remark | Unit Price | Total Price |
| YV5B | Hydraulic shaftless mill roll stand | 5 | Spindle ¢ 240mm, hyperbolic heavy rocker, expand chuck , multi-point brake, hydraulic drive lifting, panning left and right on the middle.Guide rail length 6000mm,use of plate welding. Rail length6000mm,trolley used 10mm plate welding. | 7000$ | 35000$ |
| Paper trolley | 10 | ||||
| RG-1-900 | Top paper preheat cylinder | 2 | roller ¢900mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°. | 4000$ | 8000$ |
| RG-1-900 | Core paper preheat cylinder | 2 | roller ¢900mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°. | 8000$ | 8000$ |
| SF-320C | Fingerless type single facer | 2 | Corrugated main roller ¢320mm,material with 48CrMo alloy steel,Tile roll modular group lifting transfer.Airbag ballasting structure,import main bearing,PLC automatic control glue,HMI touch screen,Breaks automatic parking relief,steam heating way. | 29000$ | 58000$ |
| RG-3-900 | Triple preheater | 1 | roller ¢900mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°. | 12000$ | 12000$ |
| GM-20 | Double glue machine | 1 | Glue roller diameter 269mm.Each independent frequency motor drive, glue roller diameter 269mm.Each independent frequency motor drive,PLC adjust glue gap and HMI. | 14000$ | 14000$ |
| ZDF | heavy type conveyor bridge | 1 | 200mm main beam channels, independent inverter motor drive pull paper feed, adsorption tension.Electric correction. | 17000$ | 17000$ |
| SM-F | Double facer | 1 | Rack 360 mm GB channel,Chrome hot plate 600 mm *16 pieces,The whole structure of the hot plate design.PLC automatic control press plate. Temperature display, frequency motor. | 65000$ | 65000$ |
| NCBD | thin blade slitter scorer | 1 | Tungsten alloy steel, five knives eight lines, | 6500$ | 6500$ |
| NC-180 | NC cutter helical knives | 1 | Full AC servo control, energy storage brake, helical blade structure, oil-immersed gears,10.4-inch touch screen display. | 15000$ | 15000$ |
| DM-LM | Automatic stacking machine | 1 | Servo drive platform lifting, three section of frequency transport,automatic points stack discharge,Imported high-strength belt output, out paper side standard transport aircraft. | 15000$ | 15000$ |
| ZJZ | Glue station system | 1 | Customers -owned pipeline.Glue configuration is composed by carrier tank,main tank,storage tank,and send plastic pump,back plastic pump. | 4000$ | 4000$ |
| QU | Gas source system | 1 | Including 0.6m³gas tank 1 unit.Air pump,pipeline is prepared by the customers. | ||
| ZQ | Steam system | 1 | Steam system components used in all GB valves.Including rotary joint,upper and lower dispenser.traps,pressure table and so on.Customer-owned boilers and pipes. | 4000$ | 4000$ |
| DQ | Electrical control cabinet system | 1 | Electronic control system::fingerless single facer,driving part,NC thin blade slitter scorer,double facer,glue machine all adopt frequency motor,delta frequency control system.operation interface easy and convenient,Speed display control cabinet with each unit speed display, the unit call, emergency stop function. The main relays Schneider brand. | ||
| Total FOB price | 261500$ | ||||
main technical parameters and requirements in production line
type:WJ150-1800-type five layer corrugated paperboard production line:
| 1 | Effective width | 1800mm | 2 | Design produce speed | 150m/min | |||
| 3 | Three layer work speed | 100-140m/min | 4 | Five layer work speed | 90-130m/min | |||
| 5 | Seven layer work speed | ------------------- | 6 | The highest change single speed | 100m/min | |||
| 7 | Longitudinal separation accuracy | ±1mm | 8 | Cross-cutting precision | ±1mm | |||
note | Speed the above targets required to achieve:effective width1800mm,Comply with the following standards and ensure the paper's equipment condition 175 ºC heating surface temperature. | |||||||
| Top paper index | 100g/--180g/ Ring crush index(N.m/g)≥8 (Water containing8-10%) | |||||||
| Core paper index | 80g/--160g/ Ring crush index(N.m/g)≥5.5 (Water containing8-10%) | |||||||
| In paper index | 90g/--160g/ Ring crush index(N.m/g)≥6 (Water containing8-10%) | |||||||
| 9 | Flute combination | |||||||
| 10 | Steam requirement | The maximum pressure 16kg/cm2 | Common pressure10-12kg/cm2 | use4000kg/Hr | ||||
| 11 | Electricity demand | AC380V 50Hz 3PH | Total power≈220KW | Running Power≈150KW | ||||
| 12 | Compressed air | The maximum pressure 9kg/cm2 | Common pressure4-8kg/cm2 | use1m3/min | ||||
| 13 | space | ≈Lmin70m*Wmin10m*Hmin5m(The actual drawing to provider to provide audited prevail) | ||||||
| Customer-owned section |
| 1, steam heating system:proposal with 4000Kg / Hr of a steam boiler pressure:1.25Mpa steam pipeline. |
| 2, air compressed machine,air pipeline,glue conveying pipe. |
| 3, power supply,wires connected to the operation panel and line pipe. |
| 4, water sources,water pipelines,buckets and so on. |
| 5, Water, electricity, gas flush mounting civil foundation. |
| 6, Test with the base paper,corn starch (potato),Industrial use caustic soda,borax and other material. |
| 7, Oil equipment,lubricating oil,hydraulic oil,lubricating grease. |
| 8, installation,commissioning of food, accommodation.And provide installers with the installation. |
