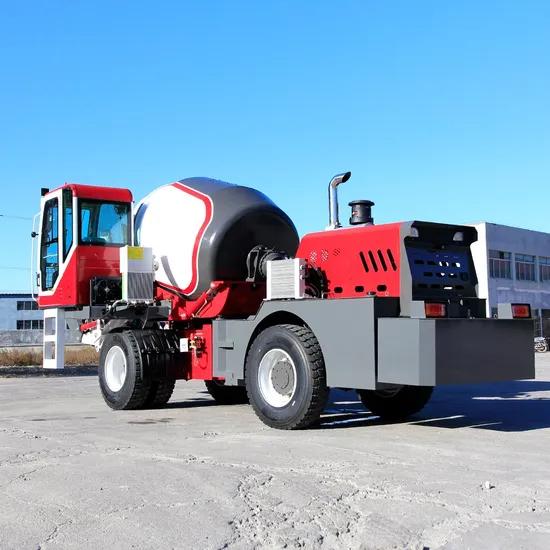

China Manufacturemobile Self Loading Concrete Mixer Machine Diesel Mini Small Cement Truck

Product Description

Product Description The self-loading concrete mixer is a device that combines the functions of an existing concrete transport truck and a mixing station. It can automatically feed, measure, mix and unload concrete mixtures. It can mix while feeding, shortening the mixing time. Accelerate efficiency. The self-loading concrete mixer is equipped with a powerful engine and four-wheel steering, which provides high traction and helps the machine work in very soft clay site conditions. It is very convenient to load materials such as cement, aggregate, stone, etc. Raw materials are scattered on the construction site , with a self-loading mixer, you will never have to worry about transporting ingredients.
Efficient self-loading concrete mixers require only one operator to drive, load and mix raw materials on the move. With higher work efficiency and higher mixing effect. At the same time, labor costs and working hours are greatly reduced. A self-loading concrete mixer can bring you huge benefits. Compared with traditional mobile concrete mixer trucks, self-loading mobile cement mixer trucks are more flexible.
Due to its shape, it is often called a snail car. These trucks are equipped with cylindrical mixers to transport concrete mixtures. During transportation, the mixing tank will always keep rotating to ensure that the transported concrete does not solidify. After the concrete is transported, the inside of the mixing drum is usually flushed with water to prevent the hardened concrete from taking up space and making the mixing drum smaller and smaller.

The self-loading concrete mixer is a device that combines the functions of an existing concrete truck and a mixing station. The self-mixing concrete truck can automatically load, measure, mix, and unload materials.

The vehicle is four-wheel drive, which enables the mixer to produce concrete under harsh working conditions and ensures work efficiency.

The aggregates are weighed during the loading process to ensure that the required concrete is produced, improve production efficiency, and the weighing accuracy is within 3%.

Only one operator is required to drive, load and mix the raw materials during the movement. The self-loading mixer is easy to operate, has high work efficiency and good mixing effect.

It has an independent water supply system to ensure the high quality of concrete.

The body of the mixer truck is of sufficient quality, the pipelines are protected when climbing without rollover, the temperature is adapted to the fine grain of the tank, the alloy is very durable, the body has dual tires, and it can bear loads in a vacuum.

A mixer truck is equivalent to a loader, a mixer, a transporter and more than 6 workers. It has automatic feeding, water supply, mixing, accurate electronic scales, intelligent batching calculation system, large-capacity water tank and water injection system. The body is equipped with a Yuchai engine. Four cubic meters of concrete can be produced in 12 minutes.

The work environment is not limited to any location, and it can be used with confidence in cities, rural areas, mountainous areas, and plateaus. The production quality of regular manufacturers is guaranteed, and you can easily get a license plate and hit the road immediately.

With its high-level automated production technology, it can do automatic feeding, automatic water addition, automatic mixing, automatic rotation and unloading, etc. There is no need to worry about ingredients. The mixer truck has its own ingredients function. Electronic scales and batching systems cooperate with each other to strictly control the weight and proportion of raw materials.

This HIGH RICH type mixer truck has realized the complete automation of the concrete production process for the first time. It can automatically complete the major production tasks of batching, production, unloading and transportation. The daily concrete output of automated production can reach 200 cubic meters, which is especially suitable for medium-sized enterprises. Used for small projects. Product Parameters

Overall Parameter
Model	HR5500L
Dimension (L×W×H)	6700*2640*4220(Lifting Arm)7900*2640*3120(Drop Arm)
Weight	9500 kg
Performance
Mixing Drum Capacity	Drum Capacity 5500L,Concrete Output: 3.5m³ Per Batch
Production Speed	Production speed: 7tanks/h
Traveling Speed	Low Speed: 0-25km/hour / High Speed: 0-40km/hour
Drum Rotation	Horizontal rotation 270°
Transmission Type	4*4
Water Tank Capacity	1000L
Diesel Tank Capacity	200L
Hydraulic Oil Tank Capacity	200L
Gearbox	315 separated type
Drive axle	2.5T wheel side decelerationbridge
Tires	16/70-R22.5 double tires
Bucket capacity(m3)	0.65
Mixing capacity(m3)	≥3.3
Reduction ratio	1:28
Rotating speed(laps/minute)	≥ 15 laps/minute
Reducer	Made in China
Gradeabiliy	30°
Engine
Model	Yuchai 4108 supercharged
Manufacturer	YUCHAI
Rated Power	91kw
Emission standards	Euro II

Detailed Photos
Certifications
Packaging & Shipping
Company Profile
FAQ
FAQ
1.Are you manufacture or trading company ?
we are a group company , include five middle-sized factory ,one high technology developer company and a professional internation trade company. Supply from design - production - publicity - sell -after sell work all the line service team .
2.What's the main products ?
mainly support construction machinery , such as loader , skid loader , excavator , mixer , concrete pump , road roller , crane and etc.
3.How long is the warranty period ?
Normally , products have one year guarantee period .
4.What is the MOQ ?
One set .
5.What's the policy for the agents ?
For agents ,SITC supply the dealer price for their area , and help to do advertising in their area , some exhibitions in agent area also be supplied . Each year , service engineer will go to the agents company to help them tread the technical questions.
6.What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
