UTERS replacement Coalescing filter element Double Open End

Product Details

Product Description

Product Description

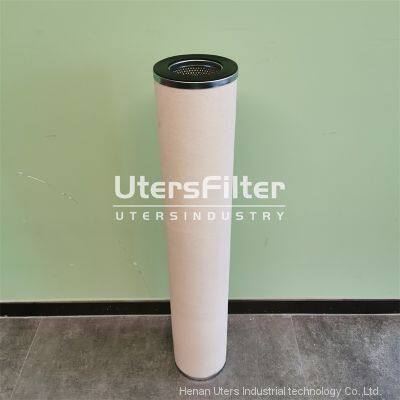

UTERS replacement Coalescing filter element Double Open End
The coalescence filter element is processed by a variety of composite materials through a special process. It has hydrophilic characteristics. It can not only filter out the mechanical impurities in the medium, but also remove the emulsified water from the medium through demulsification and coalescence. The filter element is separated and coalesced into larger water droplets to facilitate further purification of the medium.
Principle of filtration
The droplets of oil, water and other liquids are captured by the ultrafine fibers inside the coalescer. These micron-sized fibers form a tortuous channel for the airflow, forcing solid particles and liquid droplets to collide, diffuse and intercept directly, and intercept directly. Under the action of this filtering mechanism, it is captured by the ultrafine fibers, and the surface tension of the liquid causes the small droplets to coalesce into larger droplets. Due to gravity, the large droplets settle to the bottom of the container.
The glass fiber coalescing filter element is made of high-density gradient glass fiber. In order to reduce damage and loss, it is designed as an integral monolithic tube structure. The surface of the filter element is treated with hydrophobic and oleophobic treatment, which can meet the requirements of various precision levels.
Polyester fiber coalescence filter element The filter element is usually made of polyester fiber synthetic material, which has good compatibility with various fluids. The filter element is spirally rolled with a multi-layer structure, and each layer uses fibers with different properties. The expected filtration accuracy can be achieved by controlling the shape, size, thickness and density of each layer of fibers.
The coalescing filter element mainly uses surface-treated glass fiber or polyester fiber as the coalescing medium. The structure of the filter material is specially designed to make the filter medium have good coalescence performance. The filtration accuracy can reach 0.1μm.
Product advantages
The glass fiber coalescing filter element is a high-density gradient glass fiber, which efficiently coalesces liquid mist and droplets in the airflow, and has high filtration accuracy. The structure is stable, there is no media fiber shedding, and it will not cause pollution to the environment and downstream products. It has good compatibility with various fluids; good environmental protection, 100% synthetic material, completely burned without residue.
Product specifications
The outer diameter is 3.5 inches, 4.5 inches, 6 inches;
Length 16, 18, 20, 32, 36, 40, 72 inches
Filter frame material-stainless steel and carbon steel
Product performance
The accuracy range is less than 0.3 micron, 0.3 micron, 0.5 micron, 1 micron, 5 micron, 10 micron
Initial pressure difference ≤0.15psig
Replacement pressure difference<0.6psig
Operating temperature 0~150℃
Scope of application
1. Aviation fuel, gasoline, kerosene, diesel;
2. Liquefied petroleum gas, stone tar, benzene, toluene, xylene, cumene, polypropylene, etc.;
3. Turbine oil and other low viscosity hydraulic oil and lubricating oil;
4. Cycloethane, isopropanol, cycloethanol, cycloethyl ketone, etc.;
5. Other hydrocarbon compounds
Package Pictures

Typical model codes:
Replace of PALL Air/Oil Separator filter Cartridge CC3LG02H13
Replace of PALL Gas Coalescing filter Cartridge CC3LGA7H13
Replace of PALL Gas Coalescing filter Cartridge CC3LGB7H13
Replace of PALL Gas Coalescing filter Cartridge CC3LGO2H13
Replace of PALL Gas Coalescing filter Cartridge CS604LGH13
Replace of PALL Gas Coalescing filter Cartridge CS604LGBH13
Replace of PALL Gas Coalescing filter Cartridge CS604LGDH13
Replace of PALL Gas Coalescing filter Cartridge CS604LGBDH13
Replace of PALL Gas Coalescing filter Cartridge PS604HFGH13
Replace of PALL Gas Coalescing filter Cartridge LCS4H1AH
Replace of PALL Gas Coalescing filter Cartridge LCS2B1AH/LSS2F2H
Replace of PALL Gas Coalescing filter Cartridge Z1202845
Replace of PALL Gas Coalescing filter Cartridge Z1202846
Replace of PALL Gas separation filter Cartridge Z1201652
Replace of PALL Gas Coalescing filter Cartridge LCS4H1AH
Replace of PALL Gas Coalescing filter Cartridge PLF40H
Replace of PALL Gas Coalescing filter Cartridge PSE50H
Replace of PALL Gas filter Cartridge MCC1401E100H13
We also could produce replacement filter for Votech filter cartridge:
SoloToV-B 50/400 7.28 112 50 400
SoloToV-B 50/380 7.37 102 50 380
SoloToV 59/914 7.33 85.73 59 914
SoloToV 80/914 7.109 115 80 914
SoloToV 80/1829 7.01 115 80 1829
SoloToV 90/279 7.15 152 90 279
SoloToV 90/355 7.16 152 90 355
SoloToV 90/559 7.02 152 90 559
SoloToV 90/711 7.04 152 90 711
SoloToV 90/838 7.06 152 90 383
SoloToV 90/1100 7.46 152 90 1100
SoloToV 90/1118 7.08 152 90 1118
SoloToV-B 108/920 7.30 140 108 920
SoloToV 107/914 7.32 140 107 914
DuotoV 90/180 7.13 152 90 180
DuoToV 90/279 7.14 152 90 279
DuoToV 90/368 7.10 152 90 368
DuoToV 90/559 7.22 152 90 559
DuoToV K3/559 7.23 146 559
DuoToV 90/600 7.31 152 90 600
DuoToV 90/736 7.11 152 90 736
DuoToV 90/838 7.20 152 90 838
DuoToV K3/838 7.21 146 838
DuoToV 90/1104 7.12 152 90 1104
