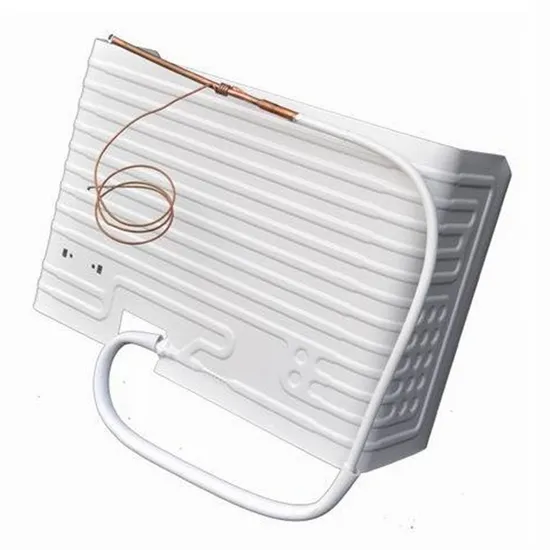

Refrigeration Roll Bond Aluminum Plate Freezer Evaporator Coil

US$29.88 100 Pieces (MOQ)

Basic Info.

Model NO.

380*350

Parts

Evaporator

Size

Can Be Customized

Item

Roll Bond Evaporator

Thickness

1.4 2.5mm

Raw Material Al Plate Thickness

1.4 2.5mm

Principle

Recuperative Heat Exchanger

Structure Material

Metal Material

Core

Core Evaporative Heat Exchanger

Type

Ceramic Heating Equipment

Application

Cooler

Ceramic Heating Equipment Type

Ceramic Electric Heater

Mixing Heat Exchanger Type

Cooling Tower

Recuperative Heat Exchanger Type

Immersive Snake Tube Heat Exchanger

Heat Transfer Surface

Tubular Heat Exchanger

Transport Package

packed by seaworthy carton, pallet or wooden box

Specification

ISO9001

Trademark

Retek&Bestar

Origin

china

HS Code

84189910

Production Capacity

800000000 pcs/year

Packaging & Delivery

Package Size

100.00cm * 85.00cm * 85.00cm

Package Gross Weight

10.960kg

Product Description

Product Description Roll Bond Evaporator / fridge evaporator / freezer evaporator / icebox evaporator
No frost roll bond evaporator, refrigerator roll bond evaporator, roll bond evaporator.
Raw material
Al-plate: Finished products thickness: 1.1 2.0mm,
Raw material Al plate thickness: 1.4 2.5mm
Structure
Double side rollbond evaporator,
Single side rollbond evaporator,
Part single side rollbond evaporator
Key process
Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing
Technical Standards
1) Size: Width 590 (max), length 2050 (max)
2) Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator.
Performance
1) Surface treated with powder painting to prevent the corrosion
2) Inner cleanness can meet the requirement of R134A & CFC cooling system.
3) Can satisfy the cooling capability requirements.
Capacity
3.5 million sets per year (10000 sets per day)

Raw material	Al-plate: finished products thickness: 1.1 2.0mm, raw material Al plate thickness: 1.4 2.5mm
Structure	Double side rollbond evaporator, single side rollbond evaporator, part single side rollbond evaporator
Key process	Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing
Technical Standards	1) Size: width 590 (max), length 2050 (max) 2) Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator.
Performance	1) Surface treated with powder painting to prevent the corrosion 2) Inner cleanness can meet the requirement of R134a & CFC cooling system. 3) Can satisfy the cooling capability requirements.
Capacity	3.5 million sets per year (10000 sets per day)

R134a Cooling System Tube Inside standards

Residual moisture	≤5 /100cm3
Residual impurity	≤1 /100cm3
Residual mineral oil	≤100 /100cm3
Residual chlorine	≤5vloppm
Residual paraffin	≤3 /
Biggest single impurity	≤0.5mm

Specification of coating

Coating thickness	thickness of coating40 90 μ m
Hardness of coating	≥2H
Impact of coating	50cm?kg/cm impact, no crack
Adhesion of coating	≥two grade
Flexibility of coating	Around R=3D bend 180?, no crack or no fall off
Color tolerance of powder painting Main Market : Pakistan , India ,Nigeria, Morocco, Egypt ,Australia,Colombia,UK.Sudan,......
