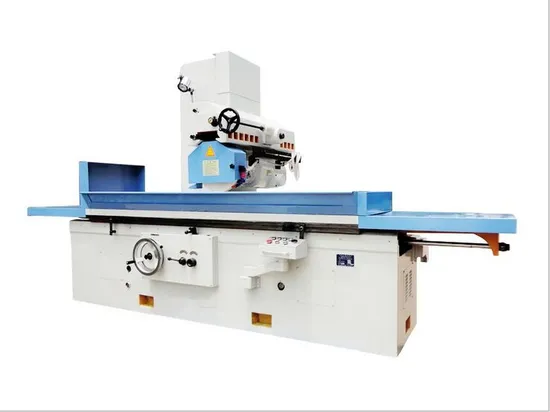

Automatic Precision Wheel Head Moving M7150 Surface Grinder Machine
| US$13,650.00-14,350.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M7150
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Surface Grinding Machine
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Model
M7150
Table Size
1250/1500/2000×500mm
Max Travel of Grinding Head
Φ400×40×φ127
Spindle Motor Power
7.5kw
Spindle Motor Speed
1440 R/Min
Transport Package
Wooden Case
Specification
ISO9001: 2000 TUV CE
Trademark
WHITE EAGLE
Origin
Made in China
HS Code
8460190000
Production Capacity
5000sets/Month
Product Description
Automatic Precision Wheel head moving M7150 Surface Grinder Machine Specification| Model | M7150*1250 | M7150*1600 | M7150*2000 | ||||
| Working table | Table size(L×W) | mm | 1250×500 | 1600×500 | 2000×500 | ||
| Max movement of working table(L× W) | mm | 1350 | 1700 | 2100 | |||
| T-Slot(number×width) | 5×18 | 5×18 | 5×18 | ||||
| Speed of working table | m/min | 3--25 | 3--25 | 3--25 | |||
| Grinding head | Max distance from spindle center to table surface | mm | 800 | 800 | 800 | ||
| Max travel of grinding head | Cross(Manual and hydraulic) | mm | 580 | 580 | 580 | ||
| Vertical(Manual) | mm | 600 | 600 | 600 | |||
| Spindle speed | rpm | 1440 | 1440 | 1440 | |||
| Wheel Size(Outer diameter×width×Inner diameter) | mm | Φ400×40×φ127 | Φ400×40×φ127 | Φ400×40×φ127 | |||
| Scale on the vertical handwheel | mm | 0.01 | 0.01 | 0.01 | |||
| Grinding head feed per revolution of handwheel | mm | 1.00 | 1.00 | 1.00 | |||
| Total power | kw | 12 | 14 | 14 | |||
| Spindle motor | Power | kw | 7.5 | 7.5 | 7.5 | ||
| Speed | r/min | 1440 | 1440 | 1440 | |||
| Rapid up and down motor | Power | kw | 0.37 | 0.37 | 0.55 | ||
| Speed | r/min | 1440 | 1440 | 1440 | |||
| Oil pump motor | Power | kw | 4 | 5.5 | 5.5 | ||
| Speed | r/min | 960 | 960 | 960 | |||
| Coolant pump motor | Power | kw | 0.125 | 0.125 | 0.125 | ||
| Speed | r/min | 2800 | 2800 | 2800 | |||
| Oil pump | Flow | L/min | 125 | 125 | 125 | ||
| Working pressure | MPa | 1.5 | 1.5 | 1.5 | |||
| Working precision | The parallelism of working surface to base level | mm | 1000:0.015 | 1000:0.015 | 1000:0.015 | ||
| Surface roughness | µm | Ra0.63 | Ra0.63 | Ra0.63 | |||
| Weight | N/G | kg | 5300/6000 | 6000/6900 | 7000/7800 | ||
| Overall dimension(L×W×H) | mm | 3200×1750×2350 | 4500×1750×2350 | 5600×1750×2350 | |||
Product display:
