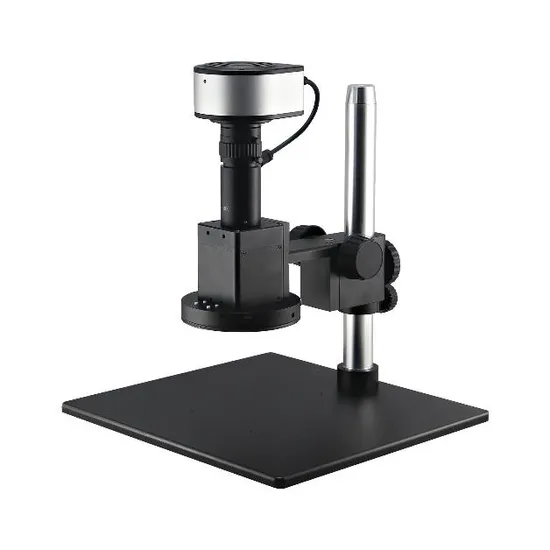

Bestscope BS-1080FCM High Precision Motor Zoom Measuring Video Microscope for Industrial Inspection

Product Description

Features1. High precision optical system
0.6-5.0X automatic electric zoom, smart cruise setting. High precision optical system design, continuous cruise keeps the center same. Repeated precision can reach 0.001μm.
2. No need for PC and softwareHigh precision electronic feedback system, no need for PC. Connect HDMI monitor directly, no need to install software. There is built-in smart measuring software, one key to save high-definition images and measurement data. Operate directly with a mouse, easy and convenient.
3. Calibration freeThe optical magnification and image magnification are displayed in real time. The users don't need to calibrate again, measuring directly.
4. Modular designModular design, various magnification CCD mount and auxiliary objective are optional. There are also different function modules, such as coaxial device, polarized coaxial device, fine focus objective device, DIC element etc.
5. Durable and sturdyHigh hardness aluminum alloy material, anodic oxidation treatment, more durable in use. Operation windows0.6X-5.0X electric stepless zoom: You can adjust and magnification from 0.6X-5.0X.
Real time display optical magnification and imaging magnification.
Basic function: automatic white balance, auto exposure, taking photo and video to U disk, preview image online, camera setting, etc.
Measuring function: support point, line distance, parallel lines, circle, arc, rectangle, polygon, etc.
Built-in high precision electronic feedback system, smart cruise scanning setting.
ApplicationBS-1080FCM Motor Zoom Measuring Video Microscope is widely used in industrial inspection, auto system , electronic communication, semiconductor , biomedical and scientific research ,etc.
Product Details
Specification

Item	Specification	BS-1080FCM
Optical System	Infinite apochromatic parallel optical system	*
Zoom Lens	Optical zoom magnification: 0.6X-5.0X	*
Zoom method	Auto zoom	*
Zoom ratio	1:8.3	*
Camera	Digital camera with high resolution HDIM output, resolution: 1920*1080, frame: 60fps, senser: 1/2", pixel size: 3.75um*3.75um. Support measuring of point, line, parallel lines, circle, arc, angle, rectangle, polygon etc. Take photo and video to U disk.	*
C-mount Adapter	0.3X C-mount adapter	○
	0.45X C-mount adapter	○
	0.5X C-mount adapter	○
	0.67X C-mount adapter	○
	0.75X C-mount adapter	○
	1.0X C-mount adapter	*
	1.5X C-mount adapter	○
	2X C-mount adapter	○
	3X C-mount adapter	○
	0.5X C-mount adapter with iris	○
	1.0X C-mount adapter with iris	○
Auxiliary Lens	1.0X Auxiliary Objective	*
	0.3X Auxiliary Objective	○
	0.4X Auxiliary Objective	○
	0.5X Auxiliary Objective	○
	0.6X Auxiliary Objective	○
	0.75X Auxiliary Objective	○
	1.5X Auxiliary Objective	○
	2.0X Auxiliary Objective	○
Infinite LWD Plan Achromatic Metallurgical Objective (MA200A)	5X/ NA=0.12, WD=26.1mm	○
	10X/ NA=0.25, WD=20.2mm	○
	20X/ NA=0.4, WD=8.8mm	○
	40X/ NA=0.6, WD=3.98mm	○
	50X/ NA=0.7, WD=3.68mm	○
	60X/ NA=0.75, WD=1.22mm	○
	60X/ NA=0.75, WD=3.18mm	○
	80X/ NA=0.8, WD=1.25mm	○
	100X/ NA=0.85, WD=0.4mm	○
Infinite LWD Plan Apochromatic Objectives (LWD M APO200A)	2X/ NA=0.055, WD=34.6mm	○
	3.5X/ NA=0.1, WD=40.93mm	○
	5X/ NA=0.13, WD=44.5mm	○
	10X/ NA=0.28, WD=34mm	○
	20X/ NA=0.29, WD=31mm	○
	50X/ NA=0.42, WD=20.1mm	○
Infinite LWD Plan Apochromatic Objectives (LWD M APO200B)	2X/ NA=0.075, WD=50mm	○
	4X/ NA=0.15, WD=36mm	○
	4.5X/ NA=0.18, WD=38mm	○
	20X/ NA=0.35, WD=29mm	○
Coaxial light Device	Coaxial device, does not include light source	○
	Polarized coaxial device, does not include light source	○
Ring Light	BAL-80A LED Ring light, brightness adjustable	○
	BAL-52AP LED polarizing ring light, brightness adjustable	○
	BAL-52ASL LED side ring light, brightness adjustable	○
	BAL-208A Four-zone lighting control separately big area LED ring light, brightness adjustable	○
	BAL-228A Four-zone lighting control separately big area LED ring light	*
	BAL-228AG LED four-zone ring light with frosted glass	○
	BAL-16P LED polarizing ring light, brightness adjustable	○
	BAL-52A LED Ring light, brightness adjustable	○
Back Light	BTL-60A LED back light	○
Point Light	BPL-3A LED point light, 3W, brightness adjustable.	○
	BPL-3MC LED multi color point light, 3W, white, purple, blue, yellow, red, green and mixed light, brightness adjustable	○
	BPL-4A LED point light with numerically adjustable light adapter, 4W, brightness adjustable	○
Bar Light	BBL-5A bar LED illuminator, 60 LED, 12V/5W	○
Cold Light Source	BSL-3B LED light source with dual goose neck light guide, 6.5W	○
	BSL-15A-2 Cold LED light source with Dual Light Guide, 15W LED lamp	○
	BSL2-150A-2 Cold light source with Dual Light Guide, 21V/150W Halogen lamp	○
Stage	BMS-302 X-Y moving stage	○
	BMS-303 X-Y moving stage	○
	BMS-311 X-Y measuring stage	○
	BMS-316A X-Y measuring stage	○
	BMS-316B X-Y measuring stage	○
	BMS-400A large working stage	○
	BMS-260A XY working stage	○
Stand and focus Arm	BA1 Round type column plain stand with coarse focus arm. Stroke: 50mm.	*
	BA2 Round type column plain stand with coarse focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 50mm.	○
	BA3 Round type column plain stand with coarse and fine focus arm. Stroke: 67mm, fine precision: 0.002mm.	○
	BA4 Round type column plain stand with coarse and fine focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 67mm, fine precision: 0.002mm.	○
	BA5 Square type column plain stand with coarse focus arm. Stroke: 150mm.	○
	BA6 Square type column plain stand with coarse focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 150mm.	○
	BA7 Square type column plain stand with coarse and fine focus arm. Stroke: 260mm, fine precision: 0.002mm.	○
	BA8 Square type column plain stand with coarse and fine focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 260mm, fine precision: 0.002mm.	○
	BA9 multi-angle column plain stand with coarse focus arm. Stroke: 60mm.	○
	BA10 multi-angle column plain stand with coarse and fine focus arm. Stroke: 60mm, fine precision: 0.002mm.	○
	BA11 universal boom stand with coarse focus arm. Column height: 320mm, horizontal column length: 340mm, Φ32mm, 360° rotatable. Base size: 330mm*300mm. Stroke: 50mm.	○
	BA12 universal boom stand with coarse focus arm. Column height: 320mm, horizontal column length: 340mm, Φ32mm, 360° rotatable. Base size: 330mm*300mm. Stroke: 65mm, fine precision: 0.002mm.	○
	BA13 Round type column large plain stand with coarse focus arm. Column height: 320mm, Φ25mm, stroke: 50mm, base size: 380mm*260mm. Gross weight: 1.5kg.	○
	BFA-1 coarse focus arm. Stroke: 50mm.	○
	BFA-2 coarse and fine focus arm. Stroke: 65mm, fine precision: 0.002mm.	○
	BFA-3 multi-angle coarse focus arm, angle adjustable. Stroke: 50mm.	○
	BFA-4 multi-angle coarse and fine focus arm, angle adjustable. Stroke: 60mm, fine precision: 0.002mm.	○
	BFA-5 electric coarse and fine focus arm, supporting manual focusing and electric focusing. It has 5 preset positions, paired with 5 different magnification objectives. Stroke: 65mm, fine precision: 0.005mm.	○
	BFA-6 N interface coarse focus arm. Stroke: 50mm.	○
	BFA-7 N interface coarse and fine focus arm. Stroke: 65mm, fine precision: 0.002mm.	○

Note: *Standard Outfit, ○Optional
Optical Parameter

Model	BS-1080FCM
Lens	Optical Magnification	0.6-5.0X
	Zoom method	Auto zoom
	FOV	12x6.75-1.44x0.81mm
	Total Magnification	28-240X(based on 15.6 inch monitor)
	Working Distance	86mm
Camera	Resolution	1920*1080
	Frame	60fps
	Sensor	1/2"
	Pixel Size	3.75x3.75μm
	Output	High resolution HDMI output
	Measuring function	Support measuring of point, line, parallel lines, circle, arc, angle, rectangle, polygon etc.
	Save function	Take photo and video to U disk
Stand	Base size	330*300mm
	Height of post	318mm
	Focus	Coarse focus
Light	Ring light	12V 13W all in one LED ring light with 4 zones control 228PCS LED quantity
	Transmitted light	12V 5W transmitted light

Magnification	Working distance	FOV	Depth of Field	NA	Resolution	Magnification	Working distance	FOV
0.6X	85.6mm	12x6.75mm	3.12mm	0.021mm	0.016mm	0.6X	85.6mm	12x6.75mm
0.8X	85.6mm	9x5.06mm	2.04mm	0.025mm	0.014mm	0.8X	85.6mm	9x5.06mm
1.0X	85.6mm	7.2x4.05mm	1.21mm	0.033mm	0.010mm	1.0X	85.6mm	7.2x4.05mm
2.0X	85.6mm	3.6x2.03mm	0.38mm	0.053mm	0.006mm	2.0X	85.6mm	3.6x2.03mm
3.0X	85.6mm	2.4x1.35mm	0.20mm	0.067mm	0.005mm	3.0X	85.6mm	2.4x1.35mm
4.0X	85.6mm	1.8x1.01mm	0.13mm	0.079mm	0.004mm	4.0X	85.6mm	1.8x1.01mm
5.0X	85.6mm	1.5x0.81mm	0.09mm	0.090mm	0.004mm	5.0X	85.6mm	1.5x0.81mm

Accessories C-mount adapter Auxiliary objectives Auxiliary objectives Coaxial device Polarized coaxial device 3 holes nosepiece 4 holes nosepiece(20.3mm thread) 4 holes nosepiece(26mm thread) Objective angle device 90°(inverted image) Objective angle device 90°(erect image) Monocular tube eyepiece two output C-mount BS-1080FCM BS1080FCM with BA2 Stand BS-1080FCM with BA7 Stand BS-1080FCM with BA8 Stand
