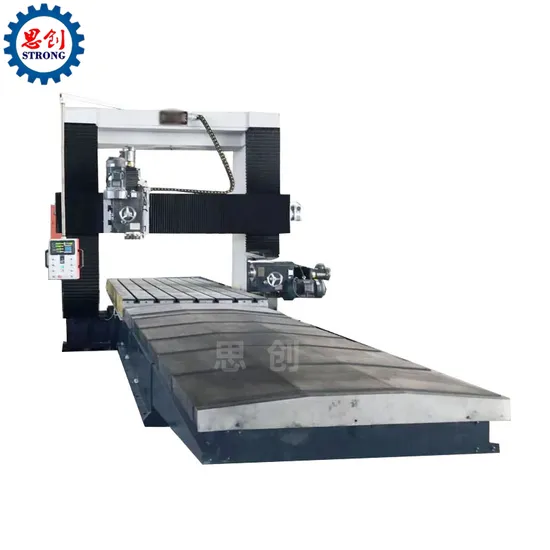

X3013 X3016 X3020 Gantry Plano Milling Machine with Right-Angular Milling Head

Product Description

Gantry milling machine is a milling machine with portal frame structure, horizontal long bed structure and electrical control system. The gantry milling machine is a large and efficient general-purpose machine tool. The machine tool has good rigidity and is suitable for strong milling. It is mainly used for small batch and batch production to mill the planes and slopes of various large and medium-sized workpieces. The bed is made of one-piece casting, which has good rigidity after tempering, and the guide rail is finely ground by precision guide rail grinder. After being finely ground by the grinder, the carriage is also manually scraped to achieve good adhesion with the guide rail of the bed. The main drive system adopts advanced AC variable frequency vector control, stepless speed change of the table, which greatly improves the work efficiency and effectively saves man hours. The feeding of milling power head up and down the left and right columns of the beam is stepless regulated by the frequency converter, and the lubrication mode of the whole machine is automatic timing lubrication system.

Model	Unit	SC-3013	SC-3016	SC-3020
Guide rail size (length*width)	mm	4500*700	4500*900	5000*1200
Maximum machining width	mm	1300	1600	2000
Maximum machining height	mm	1000	1100	1100
Table stroke	mm	3300	3000	3000
Maxi machining height of side milling head	mm	800	900	900
Taper of milling head spindle		7:24NT50	7:24NT50	7:24NT50
Vertical milling head stroke	mm	260	260	120
Side milling head stroke	mm	260	260	120
Speed range of vertical milling head	Six stage	106-664	106-664	75-420
Speed range of side milling head	Six stage	106-664	106-664	75-420
Beam lifting speed	mm/min	280	280	280
Milling head rotation angle		45°	45°	45°
Worktable rapid feed	mm/min	1200	1200	1200
Worktable dimension (length*width)	mm	3300*800	3000*1100	3000*1500
Worktable feed range	mm	15-1200	15-1200	15-1200
Worktable feed stages		Variable frequency speed regulation
Feed speed of side milling head		Variable frequency speed regulation
Feed speed of vertical milling head		Variable frequency speed regulation
Vertical milling head motor power	kw	5.5	5.5	7.5
Side milling head motor power	kw	4.0	5.5	7.5
Worktable feed motor power	kw	3.0	4.0	4.0
Beam lifting motor power	kw	1.5	2.2	2.2
Beam translation motor power	kw	1.1	1.1	1.5
Side milling head lifting motor power	kw	0.75	0.75	1.1
Lubricating pump motor power	kw	0.5	0.5	0.5
Machine dimension(Length*width*height)	mm	5300*2450*2600	5300*2800*2700	5800*3200*2800
Machine weight	Ton	6.5	9.5	12
