New Type Large Weight Automatic High Speed Down and Cotton Filling Machine with Separate Storage Box (RM4-16D)

Product Description

Four Heads Sixteen Scales Automatic Down and Cotton Filling Machine(big grams + separate down storage box) Product Parameters

Model	RM4-16 D
Number of filling ports	4
Machine weight	1350KG
Installation Size	6000*4000mm
Daily workload	24000-60000 times

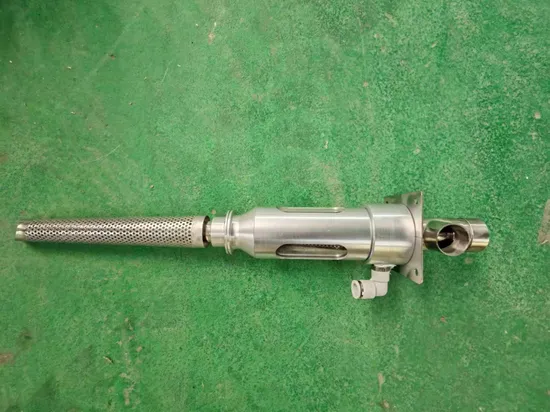

Filling nozzle size	16mm 19mm 25mm 38mm
Filling material	Down, pearl cotton, silk cotton
Single weighing range	0.5-70g (down), 1-120g(cotton)
Single Error	0-0.1g
Host Shape Size(mm)	2500*1100*1900
Weighing Box Shape Size(mm)	2200*800*1300
Cycle number of single head	4
Accuracy class	0.01g
Power	4.5KW(AC220V)
Automatic iron removal function	Support
More refunds and less supplements	More refunds and less supplements, accurate and saving down
Apportion big grams	Can fill a larger range
Fragment supplement function	One click immediate filling function after missed filling
Automatic down returning function	Change the gram weight and simplify the operation
Automatic constant humidity function	Automatically control the humidity of down inside the machine
USB data input	USB data input
Separate down storage box	Can be filled with two different materials simultaneously

Electrical parts

Name	Brand and Origin
PLC	Delta/Xinje
Sensor	HBM(Germany)
Regulated power supply	MW(Taiwan)
Controller	Delixi
Pneumatic parts	AirTAC
Pressure Regulating Valve	Japan SMC/AirTAC
Touch Screen	MCGS

Our Advantages
Packaging & Shipping
Company Profile Tangshan Hexin Garment Machinery Co., Ltd. is a modern production enterprise specializing in the manufacturing of garment machinery integrating research, development, manufacture and sales together. After years of R&D and experience accumulation, the company's products are sold to domestic market and overseas markets, such as South Korea, Vietnam, Myanmar, Cambodia, etc. The domestic market mainly includes Beijing, the three northeastern provinces, Anhui, Shandong, Wuhan, Tianjin, Hubei, Xinjiang, Henan, Chongqing and other major clothing production bases. The electric parts adopt well-known domestic and international brands, such as Delta PLC, German HBM sensor, Taiwan MEANWELL regulated power supply, Airtac pneumatic parts, Japanese SMC pressure regulating valve, CHINT Electric, etc. The company has advanced technology and strong scientific research strength, and is committed to creating higher value for customers and leading the garment machinery industry.
The company's main products include automatic down filling machine, automatic cotton filling machine, flow machine, automatic down filling machines, etc. single head with two weighings, single head with three weighings, single head with four weighings, single head with six weighings, double head with four weighings, double-head with six weighings, double-head eight weighings, double-head twelve-weighing, four-head sixteen-weighing automatic down filling machine and cotton filling machine, etc. In order to meet the personalized needs of customers, we can provide customers with tailor-made solutions.
