Wood Treatment Plant Wood Drying Furnace Autoclave

Product Description

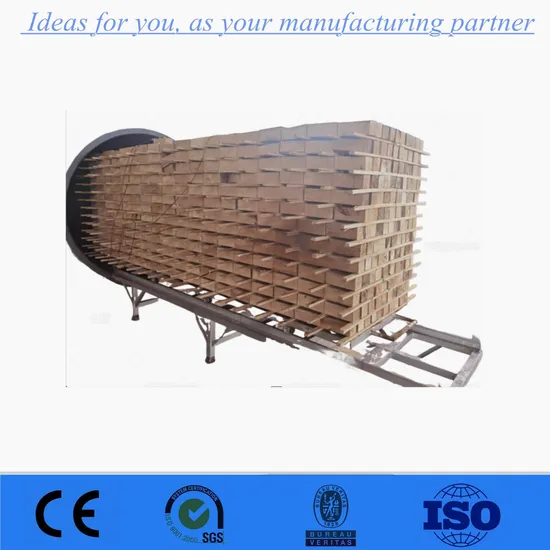

Product Description Wood drying room Wood Drying Autoclave
Wood vacuum drying is the wood stacked in a closed container, drying under conditions below atmospheric pressure, the drying medium is wet air. During vacuum drying, the water vapor pressure difference between inside and outside the wood increases, which speeds up the water migration in the wood. At the same time, due to the low boiling point of the water in the vacuum state, a higher drying rate can be achieved at a lower temperature, and the drying quality is good, especially suitable for hard broadleaf wood with good air permeability or easy to shrink and large thickness.
A new generation of automatic wood vacuum dryer
The technical problem to be solved by wood vacuum drying equipment is to overcome many shortcomings in the existing technology, and to provide a wood drying cycle is short, the drying is uniform, the wood is not easy to deform and crack, the wood yield is high, and it can also prevent cavities and mold.
High temperature Drying wood process :
1, the development of wood drying process, refers to the company's specific conditions, equipment type, dried tree species, wood stacking method, strip spacing, specifications, plate use and drying quality requirements to determine.
2. For sheets with a dry air density of 0.3g/cm³-0.85g/cm³ of common tree species, the temperature rise range is 45ºC-85ºC. For trees that are easy to crack, collapse and difficult to dry, the temperature should be appropriately reduced.
3, the adjustment of indoor temperature and humidity should be adjusted according to the moisture content of the plate at that time, temperature, air humidity and the main technical parameters of the drying room, wind speed, combined with the performance of the layered moisture content of the plate to prevent the formation of drying defects.
4, for the new tree species that have not been dried, according to the property of the tree species, the drying process of the tree species can be dried with a relatively similar drying process, and then improved according to the actual situation in the drying process, and a softer drying process can also be set for drying to ensure the drying quality.
Evertech can do for you:
1. More environmentally friendly anti-corrosion materials
2. No chemicals needed
3. Different treatment levels improve aging resistance to varying degrees.
4. Lower hygroscopicity
5. Lower mildew
6. Higher weather resistance
7. The possibility of deformation due to humidity is 30-90% lower than that of ordinary wood
8. The splitting strength is reduced by 50%
9. The resin dries out or evaporates
10. Equilibrium humidity is 10-50% lower than untreated wood
Parameters

Model	Drying autoclave
Size	The maximum diameter which our company can make is 4.5m. And the length is up to your Requirement.
Design temperature(ºC)	100-240 ºC
Design pressure(Mpa)	0.6Mpa
Working pressure(Mpa)	0.3-0.4Mpa
Design vacuum degree(Mpa)	-0.098mpa
Material	304 stainless steel
Heating method	Electric heating conducting oil cooling system
Cooling way	Forced circulation cooling system
Water way	Spray water and water vapor
Insulation way	External galvanized sheet, with 80mm insulation cotton
Heat distribution way	Circulating fan
Open the door way	Manual and electric dual open the door
Sealing method	Inflatable silicone seal (life 1--2 years)
Control method	PLC computer control
Safe method	Double-door safety interlock tank, tank three safety interlock
Alarm method	Ultrahigh pressure automatic alarm
Track label, bearing	12th rail> 12 tons

Shipping
Our machines and equipments are packed in standard package that fit for long distance road transportation and shipping. We ensure our customers can receive the undamaged machine in good condition.
Customer Site
We have a professional working team that can design for you, to ensure that you buy the best quality and fittest machine in least money.
After sale, we provide one-year warranty to make sure that your machine runs functionally and consistently. We also provide lifelong services and spare parts for the machine.
We have a professional working team that can design for you, to ensure that you buy the best quality and fittest machine in least money.
After sale, we provide one-year warranty to make sure that your machine runs functionally and consistently. We also provide lifelong services and spare parts for the machine.
