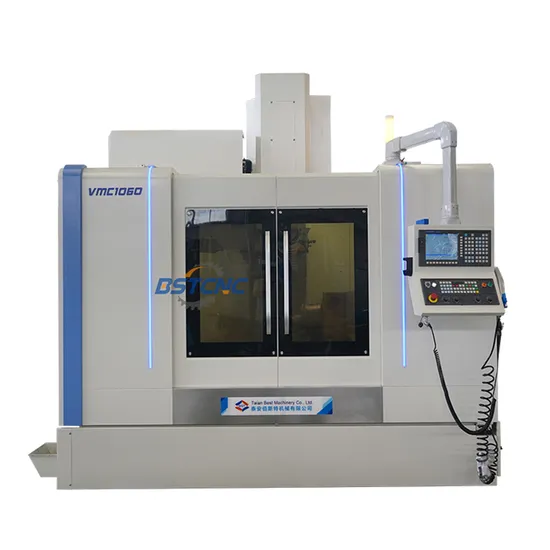

Vmc1060 3/4/5 Axis Milling Cutting Drilling Tapping CNC Vertical Machine Center
| US$25,000.00-38,800.00 | 1 set (MOQ) |
Basic Info.
Model NO.
VMC1060
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
System
Numerical Control
CNC
Processing Precision
+-0.015/300mm
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Product Name
Vertical Machining Center
Model
Vmc1060
Table Size
1200X600mm
Max Load
800kg
T Slot
5X18X100mm
Motor
11/15kw
Speed
8000 Rpm
Spindle Taper
Bt40-150
Accuracy(JIS)
+-0.015/300mm
Repeatability(JIS)
+-0.0075mm
Transport Package
Wooden Case
Specification
19.2CBM
Trademark
BST
Origin
China
HS Code
8457101000
Production Capacity
300/Year
Packaging & Delivery
Package Size
450.00cm * 240.00cm * 258.00cm
Package Gross Weight
7000.000kg
Product Description
Product DescriptionVMC series is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.
Standard configuration:
-GSK218M/25i Control system;
-Taiwan BT40-150-8000RPM spindle;
-Taiwan Arm Type Tool Changer;
-Taiwan Hiwin linear guideways and ball screw;
-Three color alarm Lamp;
-Automatic Central Lubrication System and Cooling system;
- Full Enclosure Machine Guard;
Optional:
-Fanuc ,Siemens ,Mitsubishi,KND,HNC....
-Chain chip conveyor ;
--Spindle coolant;
-Taiwan TJR brand the 4th axis ;
-Renishaw tool setter TS27R ;
-Online measuring system OMP60;
-Water out of the spindle center;
Product Parameters
| Items | VMC1060 CNC MACHINING CENTER | |
| Travel | X axis | 1000mm |
| Y axis | 600mm | |
| Z axis | 600mm | |
| Spindle nose to table distance | 150-750mm | |
| Spindle nose to column | 600mm | |
| Feed | max X rapid feed | 24m/min |
| max Y rapid feed | 24m/min | |
| max Z rapid feed | 24m/min | |
| Cutting feed | 1-10000mm/min | |
| Torque | X:18N.m Y:18 N.m Z:22N.m | |
| Table | Table size | 1200×600mm |
| Max load | 800Kg | |
| T slot | 5×18×100mm | |
| Spindle | Type | Belt |
| Speed | 8000 rpm | |
| Spindle taper | BT40/150 | |
| Main motor | 11/15KW | |
| Accuracy | Accuracy (JIS) | ±0.015/300mm |
| Repeatability (JIS) | ±0.0075mm | |
| Other | Weight | 6200 Kgs |
| Machine Size | 3100×2300×2400 | |
| Package size | 3200x2400x2500 | |
