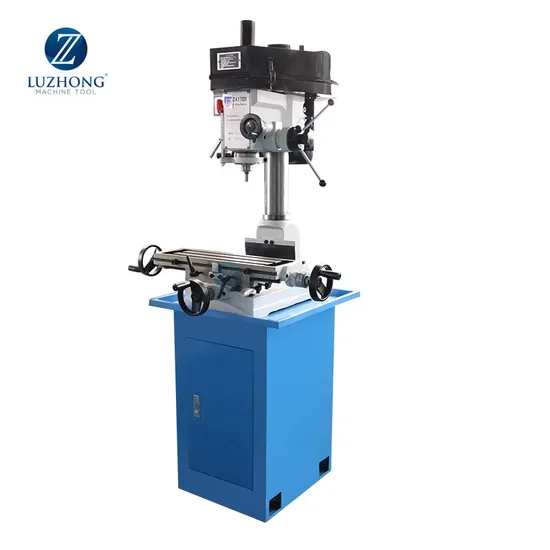

zay7045 drilling and milling machine
| US$820.00-1,700.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZAY7045G
Structure
Mill Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
32 40 45
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001, CO
Condition
New
Product name
zay7045 drilling and milling machine
Name
zay7045
function
Drilling and milling machine
usage
Drilling and milling machine price
Drilling capacity
45
Face milling capacity
63mm
End milling capacity
20mm
Distance
435mm
Min.distance
181.5mm
Spindle travel
85mm
Transport Package
Plywoodcase
Specification
45
Trademark
Luzhong Brand
Origin
China
HS Code
8459290000
Production Capacity
800 Sets/Month
Product Description
zay7045 drilling and milling machine Product DescriptionDetailed Photos
Product Parameters
The main performance characteristics:
1. Gear-driven type and round column
2. Milling, drilling, boring, reaming
3. Headstock swivels 360 horizontally
4. Micro feed precision
5. Adjustable gibs on table precision.
6. Strong rigidity, powerful cutting and precisely positioning.
Product main technical parameters:
| TEM | ZAY7020G | ZAY7032G | ZAY7040G | ZAY7045G |
| Drilling capacity | 20mm | 32mm | 40mm | 45mm |
| Face milling capacity | 63mm | 63mm | 80mm | 80mm |
| End milling capacity | 20mm | 20mm | 32mm | 32mm |
| Distance from spindle nose to table | 439mm | 440mm | 440mm | 440mm |
| Min.distance from spindle axis to column | 197.5mm | 272.5mm | 272.5mm | 272.5mm |
| Spindle travel | 85mm | 130mm | 130mm | 130mm |
| Spindle taper | M.T.3 or R8 | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
| Step of spindle speed | 6 | 6 | 6 | 6 |
| Range of spindle speed 50Hz | 95-1420 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m |
| 60Hz | 115-1700 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m |
| Swivel angle of headstock (horizontally/perpendicularly) | 360°/±90° | 360°/±90° | 360°/±90° | 360°/±90° |
| Table size | 520×160mm | 800×240mm | 800×240mm | 800×240mm |
| Forward and backward travel of table | 140mm | 175mm | 175mm | 175mm |
| Left and right travel of table | 290mm | 500mm | 500mm | 500mm |
| Motor power | 0.37KW | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) |
| Net weight/gross weight | 130kg/190kg | 315kg/365kg | 318kg/368kg | 320kg/370kg |
| Packing size | 680×750×1000mm | 770×880×1160mm | 770×880×1160mm | 770×880×1160mm |
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
