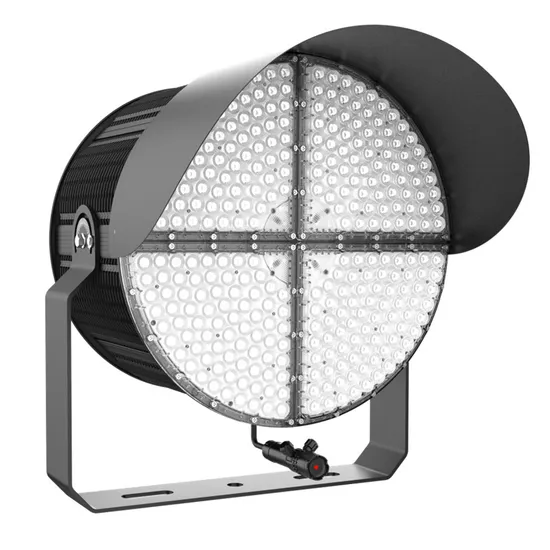

Circular Lens Factory Price High Mast Stadium Football Sports Fields High Power 200W 400W 600W 800W 1200W 1400W 1600W 1800W Outdoor LED Flood Light
Basic Info.
Model NO.
LG-F304S-600W
Power
600W 800W 1000W 1200W 1500W
Projection Distance
25-35m
Application
Park, Square, Factory, Garden
IP Rating
IP67
Certification
CCC, CE, C-tick, EMC, Energy Star, ETL, FCC, LVD, PSE, RoHS, SAA
Operating Voltage
100-305VAC
Input Voltage
110VAC/220VAC
LED Chips Brand
CREE
Model
LG-F304s-600W
CCT Selection
3000K 4000K 5000K 5700K 6500K
LED Chip
CREE 3535
Drive Brand
Meanwell / Infineon
Dimming Mode
Dali 0-10V Dmax512
Working Temperature
-45-55
IP/Ik
IP67/Ik08
Warranty
5 Years
Heat Dissipation Structure
Fin+Heat Pipe
Transport Package
L520*W230*H560
Specification
15Kg
Trademark
SIOSUN
Origin
Shenzhen
HS Code
94054020
Production Capacity
87000
Product Description
LG-F304S Series 1200W Circular Football Stadium Lighting Special Optical Lighting Design Series Luminaires 600W-1800W LED Lens floodlight(Cree 3535 led)Ultra Slim 1500W Ip67 Industrial Workshop Warehouse Stadium Foldable Rotating Led Outdoor Flood Lights For Basketball Field
Product order parameters selection
| Parameters / Model | LG-F304S-600W | LG-F304S-800W | LG-F304S-1000W | LG-F304S-1200W | LG-F304S-1500W | LG-F304S-1800W* |
| Nominal Lumen Output(at70CRI) | 98000 Lm | 144000 Lm | 158000 Lm | 194000 Lm | 220000 Lm | 232000 Lm |
| Nominal Lumen Output(at90CRI) | 72000 Lm | 96000 Lm | 100000 Lm | 144000 Lm | 157500 Lm | 180000 Lm |
| Nominal Power | 600W | 800W | 1000W | 1200W | 1500W | 1800W* |
| Voltage Range(Low) | 100 - 277VAC | |||||
| Voltage Range(High) | 347 - 480VAC | |||||
| Efficacy(lm/W)70CRI | 155 Lm/W | 155 Lm/W | 150 Lm/W | 150 Lm/W | 148 Lm/W | 135 Lm/W |
| CRI5 | 70,90 CRI | |||||
| TLCI(at90CRI) | 95 | |||||
| CCT Range(at70CRI) | 3000K 4000K 5000K 5700K 6000K | |||||
| CCT Range(at90CRI) | 3000K 4000K 5000K 5700K | |||||
| Dimming Mode | 1-10V or DMAX512 (10%-100%) | |||||
| Operating Temperature Range | -40°C to +50°C | |||||
| Usage | INDOOR,OUTDOOR | |||||
| Electrical Certifications | FCCPart15, UL8750,UL1598, DLC STANDARD | |||||
| Environmental Certifications | IP67; ANSIC136.31-2010, RoHS | |||||
| Impact Certifications | IK09 Rated | |||||
| Surge | 6kV, 10kV(option), 20kV (option) | |||||
The impressive Sage Valley Golf Club has taken the sport to new heights after reconfiguring a portion of its expansive playing area into an illuminated 9-hole par 3 course. The club's dedication to providing state-of-the-art amenities, such as new Bermudagrass and superior dining and leisure selections, inspired leaders to make nighttime play available to its guests. To compliment its serene setting and accomplish this unique golf experience, the Club not only needed a system that would allow players to track the flight of the ball through the night sky, but also a partner willing to go above and beyond to help successfully implement this new era of golf.
