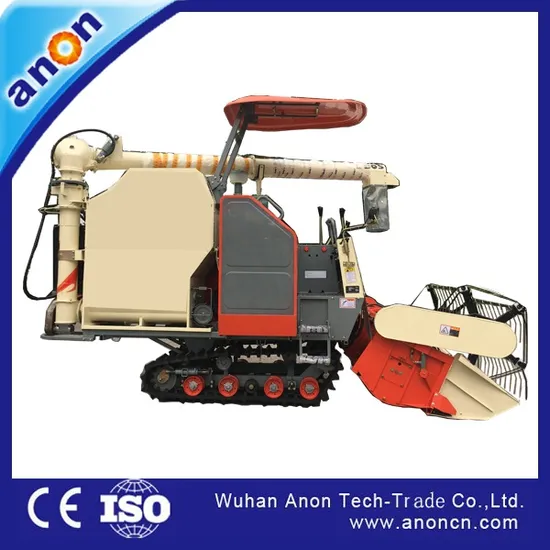

Anon High Quality Full Feed Crawler Type Rice Corn Wheat Combine Harvester
Basic Info.
Drive Type
Gear Drive
Transmission
Hard Shaft
Certification
ISO9001:2008, CE
Color
Red
Condition
New
Application Field
Agriculture
Weight
2360kg
Engine(Kw/HP)
44/60
Engine Type
Water-Cooled, 4-Cylinder, Dl-Injection
Feeding Capacity
2.2kg/S
Harvesting Capacity
0.2-0.4hm2/H
Specification
4300*1980*2675mm
Trademark
ANON
Origin
China
Production Capacity
50000pieces/Year
Product Description
Anon High Quality Full Feed Crawler Type Rice Corn Wheat Combine HarvesterAdvantage:
This small combine harvester is specially designed for small field blocks in hilly and mountainous areas, with light weight, flexible and convenient operation; ground clearance of 280mm, strong passability.
4LZ-1.6Z can be equipped with 45 horsepower, 50 horsepower and 60 horsepower engines, 50 gearboxes, 28 stepless transmissions, and crawler bandwidth 400;
Easy operation and maintenance, low fuel consumption, energy saving and environmental protection, harvest experts in hilly and mountainous areas.
Specification of Anon High Quality Full Feed Crawler Type Rice Corn Wheat Combine Harvester:
| Overrall dimension | 4300*1980*2675mm | |
| Weight | 2360kg | |
| Feeding capacity | 2.2kg/s | |
| Harvesting capacity | 0.2-0.4hm2/h | |
| Engine | Model | N490, 490BT-10 |
| Rated power(kw/hp) | 34/46, 37/50, 44/60(alternative) | |
| Type | water-cooled, 4-cylinder, Dl-injection, Vertival diesel | |
| Rated rotation speed | 2400r/min | |
| Driving system | Rubber track | 400*91*43mm |
| Minumum ground clearance | 280mm | |
| Type of gearbox | Hydraulic type+HST(3F,3R) | |
| Theoretical operating speed | 0-5.1km/h | |
| Type of brake | by foot | |
| Steering | Clutch and brake | |
| Cutting header | Pick up reel | Eccentric tooth(off-centre), diameter: 823mm, Nos:5 |
| Height adjustment | Hydaulics | |
| Cutting bar lenght | 1550mm | |
| Type of header auger | Telescopic screw conveying | |
| Type of blade | V Type/Left and right | |
| Rape seed extension | Opthional | |
| Threshing&Separating& Cleaning system | Threshing system | spiked tooth axial flow |
| Threshing cylinder size diameter | 540*1521mm | |
| Concave sieve | Grid*4 | |
| Vibrating sieve | Adjustable sieve/Meshing sieve/Hole seive(optional) | |
| Fan | Type: swirl, Diameter:350mm, Nos:1 | |
| Grain storing | Option 1 | Grain tank with unloading auger, capacity: 950L |
| Option 2 | Grain tank with 360° unloading auger | |
| Option 3 | Manual operation | |
