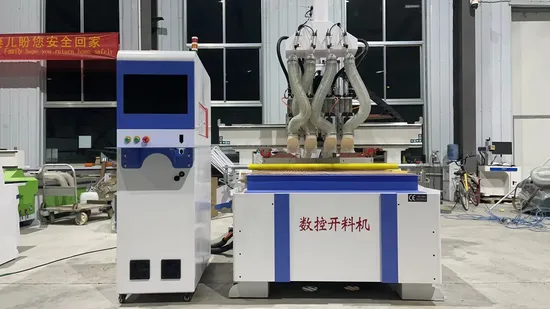

1328 4 Head Auto Tool Change Multi Process 4 Spindles Wood Door Furniture Wood Atc CNC Router Machine

Product Description

Four Process ATC CNC ROUTER
(Stable performance/Fast speed/High precision)
APPLICATION INDUSTRY gathering craftsmanship
1.Suitable for the production of various panel furniture and simple door processing.
For example: cabinet, closet, cabinet door, wooden door, closetdoor, sliding door, wine cabinet, shoe cabinet, tatami bed, panel furniture, solid wood furniture, office furniture engraving, milling,cutting, punching, etc.
2.Processing interior doors, solid wood cutting, insulation board cutting, cement fiber board cutting, etc.
3.Cutting all kinds of plywood, ecological board, density board and other man-made panels, all kinds of interior doors flush with four edges
Machine Features source manufacturer "support customization
1.Four process CNC router with the 0 second tool change, fast tool change speed and high efficiency.
2.One machine for multiple uses, high cost performance.lt canbe equipped with double stations or automatic loading and unloading device to further improve the work efficiency,
3.The 360-degree rotating saw blade can process the mounting hole slot of trinity piece and invisible connector at the same time.

STRICT DETAILS craftsmanship quality· carefully created
1.Electric oil injection pump
Fully automatic oil injection and controlpump, low noise, high efficiency, easy operation,alarm in advance when the oil level is insufficient.
2.Machine oil divider
Adopt volumetric oil row, which can deliver lubricating oil to each lubrication point according to the specified amount so that all sliders can get equal amount of lubricating oil, with good lubrication effect.
3.Double-sheathed high-flexible shielded cable
The outer side adopts flame retardant PVC sheath; Shielding layer adopts tinned shielding mesh;Inside with reinforced anti-pull rope;Flexible cable adopts oxygen-free copper wire.Strong anti-interference and wear-resistance, good oil-proof and water-proof.
4.Voltage protector
Can set the value of overvoltage and undervoltage and action time;LCD screen can display voltage value, fault status andrecord fault function. Protect other electrical accessories of the machine from damage.
5.High quality inverter
The inverter adopts strong cooling fan and humanized control panel. Energy-saving.powerful, intelligent control
maintain constant voltage, long service life.
6.Omron limit
High detection accuracy, good stability,rugged and reliable housing, long service life, high sensitivity,fast frequency response,high repetitive positioning accuracy.

item	value
Range of Spindle Speed(r.p.m)	0rpm - 24000rpm
Positioning Accuracy (mm)	0.02mm
Working Table Size(mm)	1300*2800
Travel (X Axis)(mm)	1300mm
Travel (Y Axis)(mm)	2800mm
Repeatability (X/Y/Z) (mm)	0.02mm
Place of Origin	China
Brand Name	LEISHE
Voltage	220V/380V
Weight (KG)	1900
Warranty of core components	1.5 years
Product name	ATC CNC Router Machine
Application	Furniture Industry
After-sales Service Provided	Online Support
Motor	Servo Motor

PACKING AND DELIVERY according to customer requirements can play wooden box
