High-Quality Customized Heat-Treated Ring Die for Wood Pellet Mill

Product Description

Company Profile

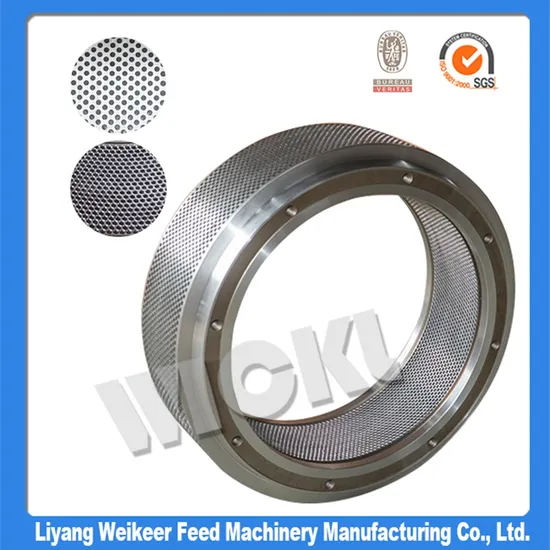

Wood Pellet Mill Spare Parts Ring Die from Reliable Supplier Weikeer can manufacture different kinds of ring dies according to clients' requirements
The products are widely applied to large, medium & small-sized aquaculture, food and feed mills, livestock farms, poultry farms, individual farmers and small & medium-sized farms, farmers or large, medium & small-sized feed mills, which are feed processing machinery for directly pressing corns, bean pulp, straws, grass, rice husks and other shattered objects into granules.
Ring die is very important part of ring die pellet machine in the whole manufacturing process. The quality of ring die not only directly relates with the quality and output of pellets, but also the running state of equipment and maintenance cost.

Introduction of pellet machine ring die
1. Material of the ring die: X46Cr13 /4Cr13(stainless steel), 20MnCr5/20CrMnTi (alloy steel) or customized
2. Hardness of ring dies: 52-60 HRC
3. Diameter of ring die can do: 1.0mm up to 28mm
4. Pellet die type can do: Ring Die or Flat Die
5. Outer diameter can do: Outer diameter up to 1800mm
6. Pellet Die model we can customize:
CPM, Buler, CPP, OGM, Zhengchang(SZLH/MZLH), Amandus Kahl, Muyang(MUZL), Yulong(XGJ), AWILA,PTN, Andritz Sprout, Matador, Paladin, Sogem, Van Arssen, Yemmak, Promill; etc. We can also customize for you according to your drawing.
Relation between die hole structure and pelleting
1.Straight hole and release stepped hole
It is suitable for compound feed processing
2.External conical hole
It is suitable for the processing of high-fibre feed like de-fat chaff
3.Internal conical hole and compression-type stepped hole
This applicable for the process of herbage powder feed of light proportion

We should try to avoid using release stepped hole(pressure-relief vent)
Because discharing is not easy for holes in the rows of the edge of ring die, pressure-relief vent is designed there.

We need to maintain and check the pellet mill's spare parts: ring dies, roller assembly,roller shell, gear shaft,screws, bearings, coupling etc. Because they are take up about 8% of the machine cost every year (primary for such as wood chipper, hammer mill and pellet mill.)
Specification customized: We can supply ring die for all the main brands of pellet machine such as ANDRITZ, CPM, ZCME, IEMME, JKAP, SOGEM, SPROUT(UMT), MATADOR(UMT), MABRIK,BUEHLER, PALADIN, PTN, YIAD,JIATONG,PROMILL,YEMMAK etc.Custom dimensions and drawings of ring die are welcome.
Following are the normal Model of each brand:
For Zhengchang pellet mill: SZLH250, SZLH300,SZLH320,SZLH350,SZLH400,SZLH420,SZLH508, SZLH678, SZLH768, etc
For Muyang pellet mill: MUZL180, MUZL350, MUZL420, MUZL600, MUZL1200, MUZL610, MUZL1210, MUZL1610, MUZL2010; MUZL350X, MUZL420X, MUZL600X, MUZL1200X(Especially for shrimp feed pellet, diameter: 1.2-2.5mm)
For Awalia pellet mill: Awalia 420, Awalia350, etc
For Kahl pellet mill(Flat die): 38-780, 37-850, 45-1250, etc
Detailed Photos
Main Manufacturing Process of Ring die
1.Forging and Lathing: Extremely precise forging and lathing assure high dimensional accuracy, bright and clean surface.
2.Die Hole processing: Advanced Germany gun drill equipment, tools and drilling hole software are used in die hole processing:High accuracy of die hole positon;High rotating speed and imported tools and cooling liquid ensures process conditions as drilling required;Small roughness of the processed die hole, ensure pelleting output and quality;Quality and service life of die is guaranteed.
3.Vacuum heat treatment Function:Ring die surface:No oxidation reaction;Die hole inner surface:Original smoothness;High stability, High hardness;High tenacity
Product Parameters
Compression Ratio of Ring Die
Generally speaking, the higher the compression ratio, the denser the finished pellets.But it does not mean that the higher the compression ratio, the better the pellet quality.Compression ratio should be calculated based on raw material for making pellets and type of feed.Buyers can customize dies with different hole diameter and compression ratio, according to different situation and requirement.

	Hole Diameter(mm)	Compression Ratio
Poultry&livestock feed	2.5-4.5	1:4-1:8
Fish&Shrimp feed	1.0-2.5	1:16-1:28
Biomass&Wood pellet	6.0-12.0	1:4-1:8

The most common structure of die hole are straight hole;Release stepped hole;External conical hole and internal conical hole, etc. Different die holes structure are suitable for different raw material and feed formula for making pellets.

Model	Material Type	Feed Type	Holes Diameter of ring die
1		High starch feed	φ2-φ6
2	Pellet of livestock and poultry	High energy feed	φ2-φ6
3	Pellet of aqua feed	High protein feed	φ1.5-φ3.5
4	Pellet of compound fertilizer	Feed include urea	φ3-φ6
5	Pellet of hops	High fibre feed	φ5-φ8
6	Pellet of chrysanthemum	High fibre feed	φ5-φ8
7	Pellet of peanut shell	High fibre feed	φ5-φ8
8	Pellet of cottonseed hull	High fibre feed	φ5-φ8
9	Pellet of turf	High fibre feed	φ5-φ8

Warm Tips
WARM TIPSHow to maintain and inspect the ring die?
1.The rollers should be correctly adjusted, make sure the hole inlets are not damaged by contact with the rollers or as a result of tramp metal;
2.Material should be evenly distributed across the whole working area;
3.Make sure that all holes work uniformly, opening the clogged holes if necessary;
4.When changing dies, carefully inspect the condition of the die seating surfaces and fixing systems including collar, clamp or wear ring.
FAQ
FAQ:1.Q:Are you a trading company or a manufacturer?A:We are a manufacturer, which has almost 30 years of experience in this industry.2.Q:How can I get to your company?A:You can get a flight to Nanjing Lukou Airport. Then you can take the high-speed railway from Nanjing station to Liyang station. Or We will go to pick up.3.Q:Do you have some foreign customers using your pellet mill die?A:Yes, we have.Our company has established business relationships with customers in South Africa, Canada,Vietnam, Argentina, New Zealand, Peru, India,Pakistan, Ecuador etc.4.Q:How long can your ring die be used?A:Our ring die has long service life.The service life time is about 1000-2000 hours.5.Q:What are the factors affecting the lifespan of a die?A:There are many factors affect the service life of a die:The composition of raw materialThe characteristics of raw materialThe moisture and fat content of material before pelletizingThe particle size of the mashThe heat conditioning of the mashThe pellet mill controlsMany others6.Q:How to buy your pellet mill spare parts?A:Just tell us the brand and model of your pellet machine, we will make the precise pellet mill spare parts for you.
