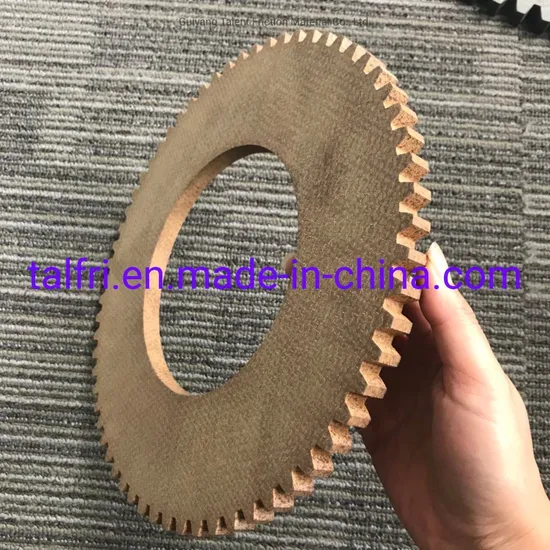

59/72/75 Teeth Laminated Gear Clutch Facing for Engineering Machinery
| US$80.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
TL3000
Position
Industrial Clutch
Certification
ISO/TS16949
Classification
Gear Teeth Ring
Drum Brakes Classification
Gear Teeth Ring
Main Market
North America, Africa
Application
Oil Drilling Machinery
Application2
Industrial Brake Clutch
Application3
Desch Clutch Brake
Application4
Wpt Clutch Brake
Color
Yellow
Teeth
59/72/75/87/63 Teeth
Measurement
10"/11"/14"/18"/21 Inch
Transport Package
Pallet
Specification
as required
Trademark
TALFRI
Origin
China
HS Code
8483900090
Production Capacity
10000 Piece/Year
Packaging & Delivery
Package Size
40.00cm * 45.00cm * 30.00cm
Package Gross Weight
30.000kg
Product Description
TL3000, Non Asbestos Gear Teeth Facing For Industrial Brake/ Clutch System, is a Non Asbestos Woven Laminated Sheet with exceedingly high hardness and strength. The material is woven from Kevlar and other synthetic fabric yarns containing brass wire. After being impregnated with special resin and pressed into rigid flat sheet, the material shows outstandingly good resistance to wear and compression and excellent stability.TL3000 is a heavy duty material extensively used in oil drilling and wind power industry. It can be installed in industrial brake and clutch system, power transmission system and electric magnetic brake engine.
| Dimension: Length x Width:762mm x 762mm (30 inches x 30 inches) Thickness:3.2mm-12.7mm ( 1/8 - 1/2 inch) Frictional Properties: Normal 0.48 Hot 0.42 Static, 200°F 0.50 Static, 400°F 0.48 Recommended Operating Range: Max. Pressure, psi 250 Max. Rubbing Speed, ft/min 5000 Max. Intermittent Temperature 600°F (315°C) Max. Continuous Temperature 550°F (287°C) |
