Full Automatic Car Truck Tyre Shredder Waste Tire Recycling Machinery Plant Tyre Recycling Machine to Make Rubber Powder

Product Description

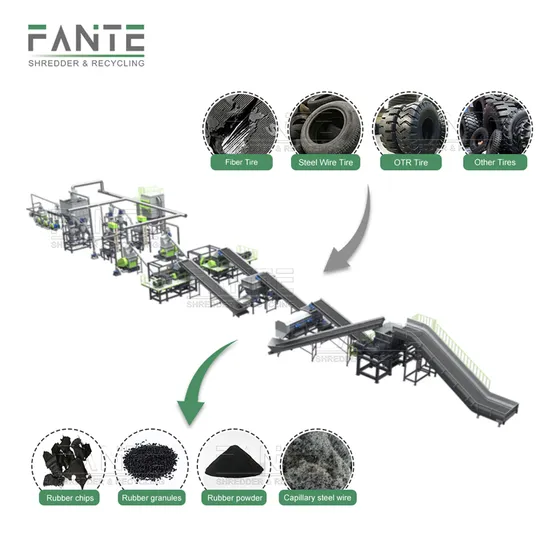

Full Automatic car truck tyre shredder waste tire recycling machinery plant tyre recycling machine to make rubber powder Recycling rubber powder machine is suitable for different kinds if the scrap tires,and we can procide you the best solution based on your different tires.

Model	FTHS-1000	FTHS-1200	FTHS-1600	FTHS-1800
Motor	(22-37)KW*2	(22-45)KW*2	(45-110)KW*2	(55-132)KW*2
Cutting ChamberL*W	1000*680	1204*920	1604*1360	1804*1410
Blade Diameter	450mm	450mm	560mm	750mm
DimensionsL*W*H	3800*1400*2100	5010*1710*3100	5260*2420*3890	5870*2450*3890
Equipment Weight	6000kg	15500kg	22000kg	25000kg
Final Product	50-150mm

FTHS tire shredder is controlled by PLC unit enabling automatic reverse for overload protection and minimizing blades damages Our knife design operates at extremely close tolerances which produces the clean cut with very little exposed wire, and with over 13 processing steps ensure the best performance and precision tolerance. The tire shredder knives can be resharpened and reused which significantly increases lifespan and decreases costs.

Model	FTRR-315	FTRR-135	FTRR-90	FTRR-75
Power	315kw	135kw	90kw	75kw
Voltage	as per request
Cutting chamber	700*1500mm	640*1200mm	550*1000mm	550*800mm
Dimension	6220*2170*3560mm	4110*2010*2560mm	4100*2090*2180mm	4100*1990*1980mm
Weight	Approx 24000kg	Approx 13500kg	Approx 9200kg	Approx 8500kg
Hopper Opening	1730*880*910mm	1410*910*1410mm	1190*710*1250mm	980*700*1260mm
Final Product	10-30mm

FTRR series Rasper is specially designed to take pre-shredded tires chips and produce between 20-10mm wire free rubber chips, it is secondary tire recycling machine in whole tyre recycling process.
FTRR rasper is used as secondary tire recycling machine for primary size reduction of pre-shredded chips, it allows it to separate the wire from rubber tires in the purest, cleanest form possible, allowing processors to generate revenue streams from both rubber and wire.
Main features:The rotor is manufactured and designed for minimum wear;
Easily exchangeable blades and screens enable the possibility to maintain the machine efficiently;
Screens with different hole sizes available for flexible production;
The internal wear surfaces are lined with replaceable wear liners that are easily changed when worn.
This exclusive feature of rasper eliminates the need for any maintenance welding and results in greater machine uptime.

Model	FTC-H-1600	FTC-H-1200	FTC-H-1000	FTC-H-800
Motor	135kw	90kw	45kw	37kw
Cutting Chamber W*L	1080*1600mm	745*1200mm	580*1000	580*800
Dimensions L*W*H	2350×2810×4330	2150*2250*2950	1770*1900*2450	1770*1660*2400
Weight	9700Kg	7600Kg	4300Kg	3650Kg
Final Product	1-6mm

FTC-H series rubber granulator is specialized designed for tyre shredding process, the end product after our granulation process will be 99.9% fiber free rubber crumb.
Main features: FTC-H series Rubber Granulator is the third step in the who tire recycling step.
At this step, wire free mulch (10-20mm rubber ) is processed from rasper into the granulator, which grinds further into 1-5mm granules.
The granules are rescreened and re-circulated until the desired size is reached.
During the crumb rubber granulation process, 99.9% of the fiber is removed.
The Fine Granulator has an adjustable knife clearance optimizing the cutting function.
The knives are not only easy to access and change, but can also be reground on a "flat-bed" grinder.
Exchangeable wear parts give you a tough machine.
Screens with different hole sizes available to ensure a more flexible production.

Model	FT-XMF-330	FT-XMF-420
Grinding Disc DIA	270mm	380mm
Output Size	30-60mesh
Shaft Speed	460Rpm	520Rpm
Motor Power	22kw	30kw
Fan Motor Power	7.5kw	7.5kw
Weight	2500kg	3200kg

This tyre recycling equipment composes of one rubber pulverizer, cyclone collection structure and whole electrical system.
The main recycling machine, rubber pulverizer include main motor, infinitely variable transmission motor, feeding and adjustable parts, as well as one pair stationary and rotary grinding discs.The basic principle of the scrap tyre recycling machine is the two discs rotate in different orient creates friction between them, this friction generates forces to cut and grind the materials until desired size reached. It adopts wind and water cooling system to control the grinding temperature, makes sure the high quality of the grinded material, so as to meet the products requirement. This structure of tyre recycling equipment is compact with low noise, high output, low energy consume, which is easy to disassemble and assemble. According to all the advantages it has, the miller is easy to operate and the output fine powder is extremely uniform.
