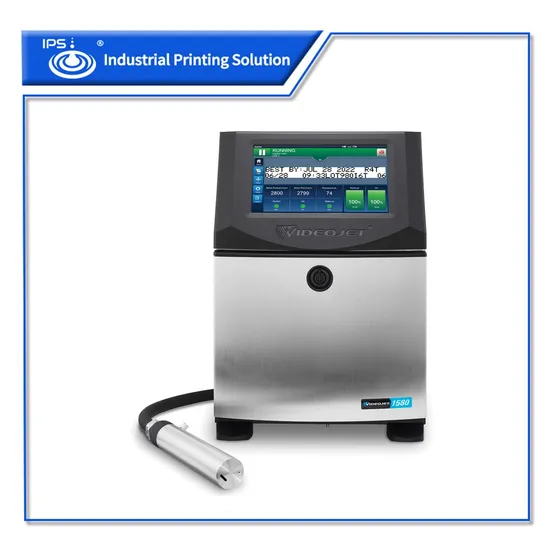

Videojet Original Vj1580 Plus Cij Inkjet Coding Machine 1580 Printer

Product Description

Videojet 1580 plus Industrial Inkjet Coder Continuous CIJ Printer Date Logo Batch Smart Printing MachineThe Videojet 1580 + Continuous Inkjet (CIJ) Printer assesses your individual printer consumption patterns and offers guidance to ensure error-proof operations.
Videojet OPTIMiZE provides on-screen alerts with expert diagnostics, analytics and guides to enhance everyday printer performance.
Achieve consistent print quality with the Dynamic Calibration™ feature that automatically adjusts to changes in temperature and viscosity.
Built-in Wi-Fi and webserver capability provide easy and secure wireless communications.
Increase uptime with an additional 8 hours minimum of runtime using a make-up reserve tank.
The Videojet SIMPLICiTY™ interface reduces operator printer interactions, eliminating potential user errors through an intuitive, tablet-inspired 10-inch touchscreen display.
Specifications

MODEL	VJ1580+
Line speed capability	Can print 1 to 5 lines of print at speeds of up to 914fpm (278mpm) (10 characters per inch, single line of print)
Font matrix configuration	Single-line: 5x5, 5x7, 7x9, 9x12, 10x16, 16x24, 25x34 Twin-line: 5x5, 5x7, 7x9, 9x12, 10x16 Tri-line: 5x5, 5x7, 7x9 Quad-line: 5x5, 5x7 Five-line: 5x5
Linear bar codes	UPC A&E; EAN 8 & 13; Code 128 A, B & C; UCC/EAN 128; Code 39; Interleaved 2 of 5; GS1
QR codes	21x21, 25x25, 29x29, 33x33 Error correction mode L, M, Q or H
DataMatrix codes	10x10, 12x12, 14x14, 16x16, 8x18, 18x18, 20x20, 22x22, 24x24, 16x26, 26x26, 8x32, 32x32, 34x34, 12x36, 16x36, 16x4
Nominal character height	Selectable from 0.079" (2mm) to 0.40" (10mm), depending on font
Throw distance	Optimal: 0.472" (12mm) Range: 0.197" (5mm) to 0.591" (15mm)
User interface	10.4" high-response TFT-LCD touch screen WYSIWYG touch to edit message editing
Custom logo/graphics	Can be created via optional CLARiSOFTTM software*
Character sets	Chinese, Russian/Bulgarian, Turkish/Scandinavian, Romanian, Greek, Arabic, Japanese/Kanji, Hebrew, Korean, East European and European/American
Languages and interface options	English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Serbian, Simple Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish and Vietnamese
Input/output	Product detect input Encoder input Beacon (Alarm light) output Relay output USB 2.0 (2x) Ethernet LAN™ Built-in Wi-Fi
Message storage	More than 250 complex messages
Environmental protection	IP55 standard, no plant air required, stainless steel cabinet IP65 protected electronics optiona
Printhead	Heated printhead CleanFlow™ including positive air, no plant air required (optional) Diameter: 1.63" (41.3mm) Length: 10.62" (269.8mm)
Printhead umbilical	Ultra flexible Length: 9.84' (3m) optional 19.69' (6m) Diameter: 0.91" (23mm) Bend radius: 4.0" (101.6mm)
Make-up fluid consumption	5.0ml per hour (MEK at 20°C)
Fluids containers	Ink and Make-up Smart Cartridge™ 0.793 qt. (750ml)
Temperature/humidity range	32°F to 122°F (0°C to 50°C) 0% to 90% RH non-condensing With selected inks; actual installation may require additional hardware based on production environment conditions
Electrical requirements	Nominal supply power 100-120 / 200-240 VAC at 50/60 Hz., 70W
Approximate weight	Unpacked and dry: 46.3lbs. (21kg)
Options	Dust protection kit with CleanFlow™ technology Dry air kit for high humidity (requires plant air) Cellular communication RS232 connector kit (USB to Serial DIN-5 male adapter) SIMPLICiTY™ Workflow Modules Wide range of accessories

Benefits
Smart made simple
Our highly intuitive interface delivers Code Assurance with error-proofing rules that help reduce operator errors. Also included are our on-board, easy-to-understand 'How To' videos to guide operators through basic tasks
Quick and easy maintenance
The SmartCell™ Service Module allows simple preventive maintenance to be carried out in just five minutes. Operatorperformed preventive maintenance can be coordinated within your production schedule, helping to ensure maximum line productivity and no additional downtime.
Ready for your environment
IP55 to IP66 helps protect from dust and water, while CleanFlow™ printhead technology resists ink buildup that can cause ordinary inkjet printers to shut down. Dynamic Calibration monitors the ambient conditions and automatically adjusts parameters to help maintain superior and consistent print quality.
Increase uptime and productivity
Improve your operations with Videojet OPTIMiZE™ and MAXIMiZE™ diagnostic capabilities. And with features such as a make-up reserve tank, extended intervals between printhead cleanings, auto-rinse, and more, you'll experience fewer operator interactions and reduced downtime
Part number

P1580-00-573N-0100	VJ1580+	VJ1580 PLUS, WORLD,IP55, 70 MICRON, 3M 90 DEGREE
P1580-00-573S-0100	VJ1580+	VJ1580 PLUS, WORLD.IP55, 70 MICRON, 3M STRAIGHT
P1580-00-673N-0101	VJ1580+	VJ1580 PLUS, WORLD.IP65, 70 MICRON, 3M 90 DEGREE
P1580-00-673S-0101	VJ1580+	VJ1580 PLUS, WORLD,IP65, 70 MICRON, 3M STRAIGHT
