Common Brake Disc and Drum Lathe Machine Car Brake Disc Skimming Machine

Product Description

Product Description

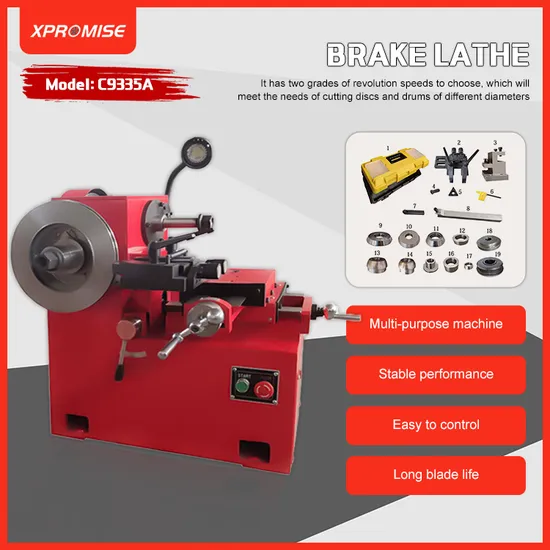

Common Brake Disc And Drum Lathe Machine Car Brake Disc Skimming Machine, Brake Drum Repair Lathe
Model: C9335A
Product Parameters

Model	C9335A	Motor	110v/220v/380v 50/60Hz
Disc Diameter	180mm-350mm	Power	1.1kw
Drum Diameter	180mm-350mm	Spindle Revolution	75,130RPM
Biggest Travel	100mm	Total Weight	260KG
Feeding	0.16mm/r	Dimensions	850x620x750mm

Features
1. C9335A adopts the powerful AC motor of 1.1Kw, which can meet the demanding requirement of industrial motion.

2. Independent operation of cutting disc and drum

3. It has two grades of revolution speeds to choose, which will meet the needs of cutting discs and drums of different diameters

4. Specially-designed taper cones for both discs and drums, which will ensure the cutting precision.

5. The machine is equipped with a twin cutter, which will achieve simultaneously cutting both sides of the disc and increase the cutting efficiency.

6. The machine has the cast iron body of small size and solid structure, covering less space.

7. The Simple ergonomic controls are designed for minimal operator movement, reducing the operation and easy to learn.

8. The machine is equipped with lighting and ensure the working area well-lighted.

9. The machine is equipped with a limit switch. The machine will stop automatically when the slide carriage touches the limit switch during auto-running.

10. The electrical device adopts the products of Delixi brand and ensures the product quality.
Parts List

Name	Quantity
Tool Box	1
Twin Cutter	1
Twin Cutter Holder	1
Cutting Tip Screw	2
Triangle Cutting Tip	2
Cutting Tip Wench	1
Boring Cutter	1
Boring Bar	1
Taper Cone (51.5x71mm)	1
Taper Cone (67x87mm)	1
Taper Cone (84x110.2mm)	1
Taper Cone (100.5x126.5mm)	1
Round Taper Cone	2
Round Taper Cone	2
Step Bushing	2
Bushing	1
Bushing	1
Pressing Sleeve	1
Pressing Sleeve	1
