150W Gpha1000t6l 254nm High-Power Amalgam Lamp for Drinking Water Treatment System

Product Description

Product Description
Features:
High-efficiency,we use high purified quartz tube as raw material.
Long life.13000Hrs
Low energy consumption.
Easy installation.
Environmentally friendly.Application:
Swimming pool water treatment
Pond water disinfection
Air purification
Drinking water treatment
Air Conditional Treatment SystemDetailed Photos

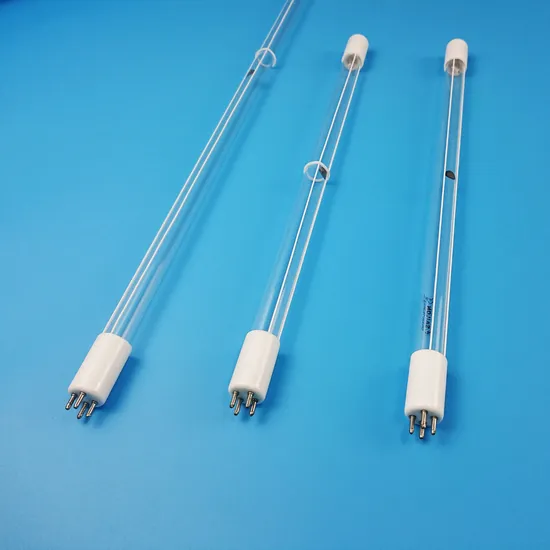

Part.1
With special coating inside,Amalgam lamp can keep more
than 85% of UV output after working 13000Hrs.Part.2
Amalgam lamp keeps the radiation more stable in large ranges
of temperature environment,even while the temperature is
up to 90 degrees.Part.3
Sailon can provide amalgam lamp with singe-wavelength
(254nm) or double wavelength (254nm and 185nm).
Technical Data

Type	Tub Diameter	BF-EOL (S)	Power	Current	Voltage 50/60Hz	UV output at 254nm		Standard life
	MM	MM	W	A	V	uW/cm2	W	h
T5-Tube Diameter
GPHA357T5L	15	357	42	1.2	36	110	11	13000
GPHA843T5L	15	843	105	1.2	88	320	35	13000
GPHA1000T5L	15	1000	127	1.2	107	370	42	13000
GPHA1145T5L	15	1145	150	1.2	130	395	54	13000
GPHA1554T5L	15	1554	190	1.2	164	500	68	13000
T6-Tube Diameter
GPHA357T6L	19	257	57	1.8	32	130	13	13000
GPHA843T6L	19	843	130	1.8	71	400	43	13000
GPHA1000T6L	19	1000	150	1.8	84	460	52	13000
GPHA1145T6L	19	1145	180	1.8	102	550	64	13000
GPHA1554T6L	19	1554	240	1.8	134	600	84	13000
GPHHA357T6L	19	357	65	2.1	31	140	14	13000
GPHHA843T6L	19	843	172	2.1	82	490	54	13000
GPHHA1000T6L	19	1000	207	2.1	99	570	65	13000
GPHHA1145T6L	19	1145	240	2.1	115	600	84	13000
GPHHA1554T6L	19	1554	320	2.1	154	750	105	13000
T8-Tube Diameter
GPHHA1510T8L	25	1510	250	3.1	83	650	90	13000
T10-Tube Diameter
GXA1500T10L	32	1500	270	3.8	75	650	93	13000
GPHA1515T10L	32	1515	270	3.8	75	650	93	13000
GPHHA1515T10L	32	1515	330	3.8	84	850	110	13000
GPHHA1310T10L	32	1210	400	5	82	1050	130	13000
GPHHA1554T10L	32	1554	500	5.5	90	1300	165	13000

Certificate
Our Factory
Package and Shipping
FAQ

Q:Can I have a sample of UV Lamp at first?
A:Yes.
Q:What's your lead time?
A:5-7Days for samples,15-20days for mass cargoes.
Q: What's your shipping method for sample and how long does it take to arrive?
A:For samples,3-5days via DHL or FEDEX.For mass cargoes,airline or ocean shipment.
Q:Do you offer guarantee for the products?
A:Yes,1 years warranty for UV Lamp.
Q:Can I have my own design package and logo on the products?
A:Yes,sure.
Q:What's your advantages compared with other supplier?
A:SailonUV use high-quality quartz glass to make sure high UV output than others,CE&Rohs certificates,competitive price,core filament electronic power processing technology.Advantage processing & testing equipment.The best quality raw material.
Q:What are the using of the UV Lamps?
A: The UV lamps can be use for water treatment,aquarium,medical care,air purification etc...
Q: What's the difference between normal and amalgam lamps?
A:Compared with the normal lamps,amalgam lamp increased the ultraviolet UV output efficiency by 2-3times at the same length and it can output high intensity UV radiation stably in a stale environment of 4-60degrees.
Q:Can you accept the OEM Or ODM?
A:OEM.
