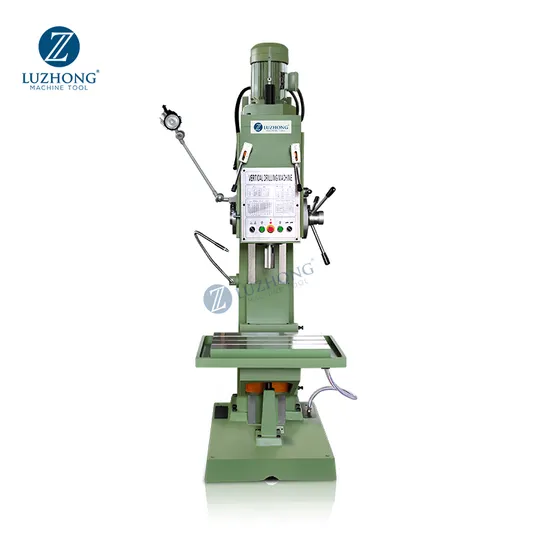

Metal high precision Z5132 vertical square column drilling machine

Metal high precision Z5132 vertical square column drilling machine

US$4,300.00
1-4 Pieces
US$3,900.00
5+ Pieces

Basic Info.

Model NO.
Z5132
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
Conventional
Hole Diameter
50-100mm
Automatic Grade
Semiautomatic
Precision
Normal Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
name
Metal high precision Z5132 vertical drilling
Max. drilling dia.
32mm
Spindle travel
200mm
Distance between spindle nose and table
710mm
Distance from spindle axis to column
280mm
Table size
550*400mm
Table travel
310mm
Transport Package
Plywood Case with Steel Base
Specification
980*807*2302mm
Trademark
luzhong
Origin
China

Packaging & Delivery

Package Size
1020.00cm * 827.00cm * 2322.00cm
Package Gross Weight
1170.000kg

Product Description

Metal high precision Z5132 vertical square column drilling machine
Product Description
Product Parameters
SPECIFICATIONS Units Z5132
Max. drilling dia. mm 32
Max.feed resistance N 12000
Max. allowble torque N.m 200
Spindle taper - MT4
Spindle travel mm 200
Distance between spindle nose and table surface mm 710
Distance from spindle axis to column surface mm 280
Spindle box travel mm 200
Spindle speed range rpm 50-2000
Spindle speeds steps - 9
Spindle feed range mm/r 0.056-1.8
Spindle feed steps - 9
Table size mm 550*400
Table travel mm 310
Main motor power kw 2.2
Coolant motor power kw 0.09
Machine weight kg 1150
Overall dimension mm 980*807*2302

Detailed Photos
Company Profile

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
