Medical Hyperbaric Oxygen Chamber Oxygen Therapy

Product Description

Medical-Hyperbaric-Oxygen-Chamber

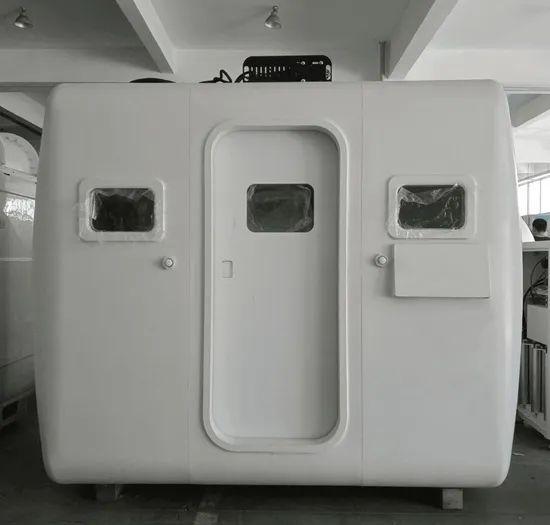

The double steel chamber produced by our company is a special manned container. The chamber body is mainly made of pressure resistant metal materials, the chamber body adopts modular design concept and light weight, the users can assemble and customize the product size like building blocks.There equipped with touch screen, duplex intercom, emergency call, temperature and humidity sensor, horn, etc.in chamber, and equipped with pressure sensor,oxygen concentration sensor, etc. outside the chamber.The whole cabin is equipped with fully automatic integrated control cabinet,with simple control interface, simple operation process and complete control functions.and equipped with medical oxygen generator, the personnel in cabin inhale high concentration oxygen through mask oxygen inhalation equipment, which can effectively restore cell vitality, and improve the hypoxia state of the body, quickly alleviate altitude reaction, help repair damaged cells and regulate the body's immunity.It has good effects on altitude hypoxia, decline of sleep quality, decline of memory, dry skin and other conditions,which can be widely used in alleviating altitude reaction, emergency rescue, physical recovery, memory improvement, rehabilitation physiotherapy, beauty care and so on.

Technical data 1. Max. Working pressure:0.06MPa 2. Gross weight: 2000kg 3. Envelop dimension: L2760*W1250*H2000mm 4. Seating capacity: two persons 5. Pressurized medium: air 6. Oxygen concentration in Cabin: ≤ 23% 7. Relative humidity: ≤ 80% 8. Pressurization time for the equipment: ≤ 10min 9. Power supply: 220V 50Hz 10. Working environment temperature: 0 ºC~ + 30 ºC 11. Noise in chamber: ≤ 65dB 12. Control mode: Automatic control: PLC automatic control

serial number	item	parameter
1	Inhaling oxygen method	Oxygen mask
2	Main material	Cabin is G345R, door for chamber is aluminum alloy and organic glass
3	Control system	PLC Controller, built-in control procedures. Touch screen to monitor the running parameters.
4	Pressure-adding	1) The pressure is compressed air by
	and	the air compressor through the air intake
	pressure-reducing	hole to the cabin.
	devices.	2) The pressure is reduced by the
		normally open air discharge solenoid
		valve.
		3) The pressure in the cabin can be
		displayed by the control panel with a
		mechanical pressure gauge installed in
		the cabin.
5	Oxygen supply and exhaust system	1) The oxygen generator supplies oxygen to the oxygen supply pipeline of
		the oxygen mask in the cabin through
		the oxygen inlet.
		2) The oxygen exhaust pipe of the
		oxygen inhalation mask discharges
		oxygen to the outside cabin.
6	Safety valve	Two safety valves

7	Telephone communication device	Equipped with telephone communication device, with communication function.
8	Emergency decompression valve	The cabin is equipped with emergency decompression valve, when need to quickly out of the cabin, can be in or out of the cabin via rapid pressure exhaust.
