Factory Price Electric Rotary Actuator Motor Soft Seal Cast Iron Flange Butterfly Valve or Ball Valve, Easy for Installation and Removal

Product Description

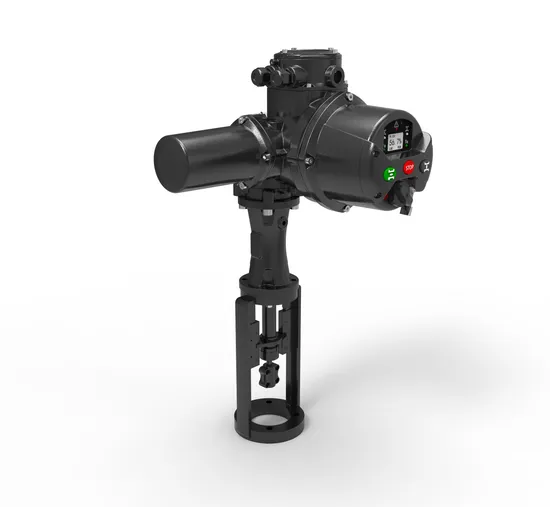

Product Description HEM MULTI TURN ACTUATOR
The HEM series is a new generation of multi-turn electric actuators developed and manufactured by HeLi Company's technical team, combining user needs with years of development experience. The HEM series can be produced in various models according to user requirements, such as basic, intelligent, bus-type, and intelligent split-type, ensuring safety, stability, and reliability to meet different application scenarios across various fields.
The HEM series multi-turn electric actuators can not only be used with linear stroke valves like regulating valves, gate valves, and globe valves, but can also be equipped with part-turn worm gearboxes to be used with quarter turn valves such as butterfly valves, ball valves, and plug valves.
Detailed Photos
Product Parameters
Due to inertia effect and wear of the drive shaft sleeve, it is suggested that the running speed should not be too fast when it is directly installed on the gate valve.
The max torque set in two directions at the nominal torque. The locked torque depends on the speed and voltage, generally
it's 1.4-2 times of the nominal torque.
If order 60Hz,the speed should add 1.2 times.
380VAC/3PH--on off type and modulating type that's 600 starts/hour(1200 starts for modulating as optional)(For basic typemore than 36RPM there' s no overtorque protection)

Intelligent type
Standard specification	Torque		60-3000Nm(with out geer box)
	Output speed		18-144(rpm)
	Ambient Temperature		-30ºC-70ºC(-40ºC-70ºC as option)
	Vibration Resistance		Comply with JB/T8219
	Noise Degree		Less than 70dB within 1 meter
	Cable Entries		2×NPT 3/4,one replacement for NPT3/4(If you have any requirement of cable entry,pls kindly contact us)
	Enclosure Protection		IP67 as standard,IP68 as option(15m under water without leakage for 72 hours)
	Mounting Base		Standard JB2920(Clutch);ISO520(trust,spline)
Technical Specification	Motor ratings		Class F,with 135ºC thermal protection
	Duty ratings		ON-OFF,S2-15min,less than 600 starts/hour
			Modulationg:S4-25%,less than 600 starts/hour
			Option:1200 starts/hour
	Voltage		three phasse:AC380V(±10%)/50Hz(±5%)three phase four wires
			Option:1PH AC220V,AC415V and other voltages
	Protocol		Modbus,Profibus,Hart
	ON-OFF	Control signal	ON-OFF(dry contact,24V,220V,possible to exchange between inching and keep)
		Feedback signal	6×relay contacts(5×state relay+1×fault relay)
			1× analogue feedback:4-20mA,output impedance:≤750Ω(4-20mA as standard;0-10V,2-10V as option)
	Modulating	Control signal	ON-OFF(dry contact,24V,220V,possible to exchange between inching and keep)
			Analogue signal:4-20mA,input impedance:≤750Ω(4-20mA as standard;0-10V,2-10V as option)
		Feedback signal	6×relay contacts(5×state relay+1×fault relay)
			1× analogue feedback:4-20mA,output impedance:≤750Ω(4-20mA as standard;0-10V,2-10V as option)
		Deadband	0.3-9.9% adjusted within full stroke
		Polarity	Yes
		Signal loss action	yes
Oeration Mode	Indication		LCD display
			Open/Close/Remote/Failure lamp(Digital shown in percent for position and torque
	Menu operation		Remote control or Selector switch
			Configuration set(position,status feedback,Max.torque)
	Local control		Command selector switch(OPEN/CLOSE/STOP)
			Mode selector switch(LOC/REM/OFF)
	Data logger and diagnostics		Infrared remote control suit menu to access the faultd diagnosis
Others	Functions		Automatic phase correction(3PH only) Alarms(Local and remote) Bypsas torque switch
			Torque protection Motor thermal protection Bypass torque switch
			Space heater ESD set(Open,Close,Keep)
			Average torque
			Infrared remote control suit menu to access the faultd diagnosis
			Option:Explosion proof infrared remote control
