CE Approved Industrial Lift and Hoist Boiler Lifter Electric Elevator/Construction Site Construction Lifting Hoist Price for Building/Window Cleaning
| US$22,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SC150/150
Type
Stationary
Load Capacity
＞3T
Speed
20M/Min - 40M/Min
Usage
Construction Hoist
Sling Type
Wire Rope
Lift Drive / Actuation
Electric Motor
Lift Mechanism
Articulated Lift
Attendant
With Attendant
Deceleration Device
With Deceleration Device
Elevator Door
Center Opening Door
Motor Power
13kw*2, 11kw*3, 11kw*2
Cage Dimension
3*1.5*2.2m, 3*1.3*2.2m, 3.2*1.5*2.2m(Changeable )
Rated Lifting Speed
0-33m/Min, 0-45m/Min, 0-60m/Min
Max Erection Height
450m
Mast Section Size
650X650X1508mm (or 800X800X1508mm)
Mast Section Weight
145-180kg (Double Racks)
Wall-Tie Adjust Length&Qty
2.8-3.2m 1pieces/5 Mast (Can Be Adjusted)
Main Electrical System
Schneider(Can Be Equipped with PLC Fault Sensor )
Color
Changed
Transport Package
Container
Specification
40HQ
Trademark
XINGDOU
Origin
China
HS Code
84281090
Production Capacity
3500 Sets/Year
Packaging & Delivery
Package Size
320.00cm * 150.00cm * 240.00cm
Package Gross Weight
5000.000kg
Product Description
Shandong Xingdou is a professional manufacturer of construction hoist Industrial Lift:1.15 Years Manufacture Experience
2.Export to more than 20 Countries
3.1 Year Warranty and Quick Delivery
4. Quality approved by CE,ISO Certificates
5. We can supply customized OEM service
Production description:
| 1.could be design according to different building situation. | 5. All Production Line adopt special fixture, mould, gauge made by us to ensure all detaile size. |
| 2. With ISO9001, CE, EAC, SGS, BV, SASO certifications | 6. Select high quality raw material from China Bao Steel Group, other like motors, reducers, gearbox, safety device with low noise, electrics is schneider or Korea repute brand with reliable quality. |
| 3. Double or Single cage with loading capacity from 500kg to 3000kg. | 7. Special design, compact and reasonable structure, easy to installation and adjustment. |
| 4. With Frequency Inverter or DOL control system with low speed, MID speed, and high speed | 8. Each equipment should be test and make record in Factory, all details will be adjust like Motor brake, safety device operation, all limit switch operation, dropping test, loading test, and mast section erection test to ensure the completed equipment run well when taken into use. |
Product Details:
Production process:
Strict material selection- blanking- inspection - welding-inspection- Blasting - inspection -Baking finished or galvanized- inspection -Finished product

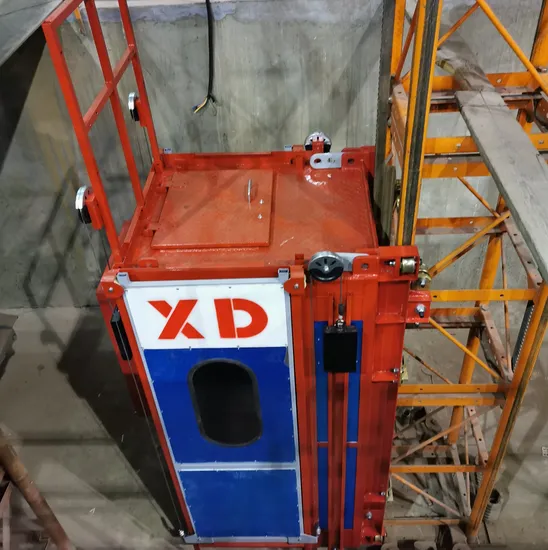

A:Special design for Cage :
1. bottom and roof of Cage adopt trapezoidal frame
2. Bottom and the roof are full symmetry
3. The plane of symmetry are connected by Bending plate, Bending channel and square pipe which make it firm, straight and balance in use.
4. The wall around cage can be fixed by Punched Aluminium plate, Punched zinc plate, steel wire mesh.
5. Surface Treatment: Blasting, Baking finished,Galvanized
B:About the mast section
| 1. Steel plates are bented of U-shape to strengthen the mast section. |
| 2. Mast section with galvanized coat or heat spray coat can be chosen. |
| 3. High quality steel plate Q345B bended by special machine: Thickness 4.5mm. |
| 4. Welded steel tube Q345B and seamless steel tube 20# are also available: Ø76*4.5mm or Ø89*4.5mm (Thickness of 6mm or 8mm is also available). |
| 5. 650*650*1508mm is the most common size fits for clients. Other model of mast section can choose: 450*450*1508mm, 650*900*1508mm,800*800*1508mm |
Certificates:
We own International Certificate and standard CE, EAC,ISO9001, SGS, BV of construction hoist.
About us:
After nearly 15 years of development, Xingdou already has a sound production and marketing system. Our customers not only radiated to China, but also opened up our markets in the Middle East, Central Asia, South America, Southeast Asia and other regions. Every year, customers from all over the world came to visit and sign orders. Our products have been well received by customers.
After-sale services:
| 1.Quality Assurance: Good quality is assured by advanced manufacturing technology.and all products will be checked by our quality-control manager. |
| 2.Excellent Package: We provide standard,strong,protective package for our products to prevent is from outer damage. |
| 3.Quickly Response: Detailed information,specific model and price of price of products will be provided quickly after receiving your inquiry. |
Welcome to visit our factory!
