Basic Info.
Laser Visibility
Invisible
Applicable Material
Metal
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Semiconductor Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Laser Power
20W /30W/ 50W(Optional)
Marking Depth
20 W 0.5 mm or Less 30 W 0.7 mm or Less
Marking Area
120mm*120mm 150mm*150mm 175mm*175mm
Repeat Precision
+/-0.002mm
Operating System
Win98 / Win2000 Winxp/ Win 7
Service Life
100000 Hours
Operating Environment
Temperature: - 20~45, Relative Humidity 80%
Transport Package
Carton and Wooden Pcaking
Specification
800X450X570mm
Production Capacity
50000/Year
Packaging & Delivery
Package Size
60.00cm * 40.00cm * 30.00cm
Package Gross Weight
30.000kg
Product Description

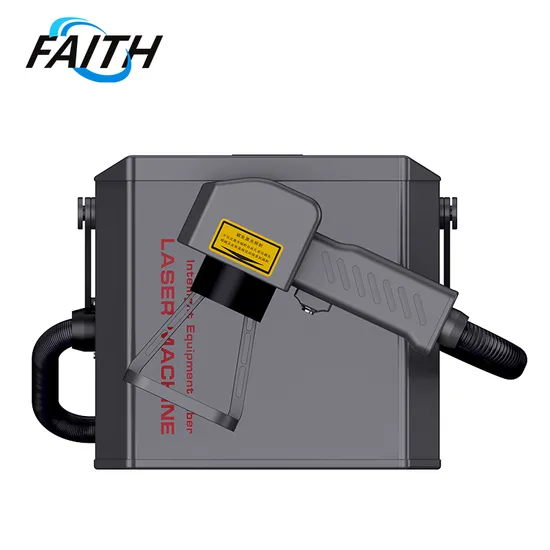

Faith 20W/30W/50W Handheld Fiber Laser Marking Machine Date Number Logo Character Date Qr Code Printing Portable Laser Marking Machine Product Description
The handwriting is clear, stable, and easy to use
Handheld fiber laser machine
Red light positioning /Precise operation / Fast engraving / Clear handwriting
.Long-lasting marking
Not easy to modify, high difficulty in counterfeiting and product diversion
.No limitations on location
Compact body, easy to carry
.Precision down to the millimeter
Characters can be refined to the millimeter, with clear and visible results
.Filling function.
Powerful filling function, supports circular filling
.Open multi-language support
Easily supports languages from all over the world
.High flexibility
The laser system can process various workpieces
Product features
Built-in battery design
Optional 24V lithium battery, 12AH large capacity batterwhich can support 12-16 hours of continuous use.
Portable design, wireless marking
Adopts portable+ desktop(optional)+flying design (optional), suitable forvarious occasions
Equipped with a LINUX system
Equipped with an 8-core processor, high security level.stable performance, fast response speedand resistant to viruses and system crashes
Built-in touch control system
Can connect to WiFi for computer operation and content editing
The software supports various formats such as PLT, JPG, PCX, DXF, BMPand can import content like barcodes, QR codes, serial numbers, dates, times, and logos
Application
Product Parameters
Customer Feedback
Certifications
FAQ
Company Profile
Shenyang Faith Technology Co., Ltd. is a high-tech enterprise, which integratesindependent research and development, production, sales and service. Wespecialized in providing industrial coding technology and traceable systemsolutions.The company was founded in 2010 with a 30-person team and a 500m* productionworkshop. After more than 10 years of unremitting efforts, we have developedinto an excellent team of 300 people and a 2500m production workshop.We focuson the flexible cooperation, specially in providing OEM service for customers,which can produce the machine with customers' brand and logo, also can providecustomization according to customers' specific requirement.
