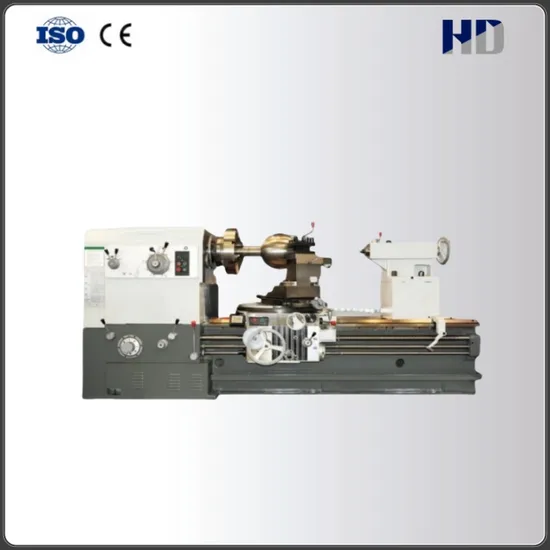

Horizontal Lathes for Machining Spheres
Basic Info.
Model NO.
CA6525
Type
Horizontal Lathe
Processing Accessory
Other
Guide Rail
Horizontal Guide Rail
Tool Holder
Other
Power Source
Hydraulic Pressure
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Swing Over Bed
560mm
Swing Over Carriage
50-330mm
Max.Workpiecelength
1000mm
Spindle Bore
52mm
Spindle Speedrange
24step
Range of Spinle Speed
10-1400r/Min
Range of Circumferential Feed Normal
0.7-13.5r/Min
Ranae of Circumferential Feed Fine
0.25-0.46r/Min
Range of Circumferential Feed Coarse
15-54r/Min
Tool Post Traverse
4m/Min
Kinds of Longitudinal Feed
64
Section of Turning Tool
25*25mm
Diameter of Tailstock Spindle
75mm
Max.of Tailstock Spindle
150mm
Main Motor Power
7.5kw
Transport Package
Wooden Cases
Specification
2668*1130*1367mm
Trademark
HAIDI
Origin
China
HS Code
8458990000
Production Capacity
30 Sets/Month
Packaging & Delivery
Package Size
300.00cm * 150.00cm * 159.00cm
Package Gross Weight
1210.000kg
Product Description
Product Picture
Specification Parameter
| ltem | Unit | C6516B | CA6525 | CW6593B |
| Swing over bed | mm | Φ360 | Φ560 | Φ1430 |
| Swing over carriage | mm | 20-180 | 50-330 | 150-920 |
| Max.workpiecelength | mm | 750 | 1000 | 1500 |
| Spindle bore | mm | Φ51 | Φ52 | Φ104 |
| Spindle speedrange | step | 12 | 24 | 18 |
| Range of spinle speed | r/min | 55-1600 | 10-1400 | 5.4-720 |
| Range of circumferential feed(normal) | r/min | 0.7-13.5 | 0.37-5.58 | |
| Ranae of circumferential feed(fine) | r/min | 0.25-0.46 | ||
| Range of circumferential feed(coarse) | r/min | 15-54 | 5.94-8.93 | |
| Tool post traverse | m/min | 4 | 4 | |
| Kinds of longitudinal feed | 33 | 64 | 64 | |
| Section of turning tool | mm | 20*20 | 25*25 | 32*32 |
| Diameter of tailstock spindle | mm | Φ55 | Φ75 | Φ100 |
| Max.of tailstock spindle | mm | 140 | 150 | 250 |
| Main motor power | kw | 4 | 7.5 | 11 |
| Overall dimensions | mm | 2070*995*1162 | 2668*1130*1367 | 3360*1450*1950 |
| Net weight | kg | 1380 | 2300 | 5500 |
Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
