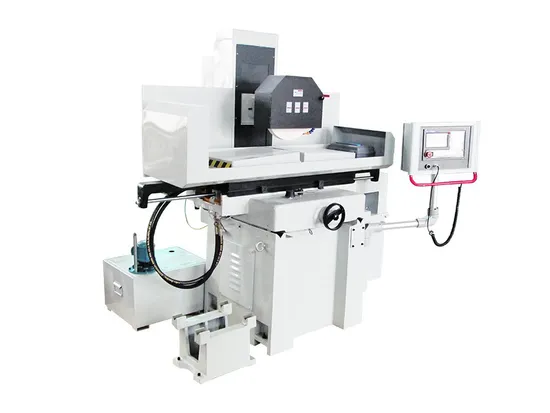

Hydraulic CNC Surface Grinding Machine Myk1224 Cheaper CNC Surface Grinding Machine with High Quality

Product Description

Hydraulic CNC Surface Grinding Machine MYK1224 Cheaper CNC surface grinding machine with high quality
Product Description
Characteristics:
1. The structure of the machine tool is reasonable, large machine tool bed weight, excellent stability, using the cross saddle structure, good rigidity, has the advantages of beautiful appearance and convenient operation.
2. Horizontal movement of working table (before and after) by servo motor drive, precision ball screw drive, to ensure accuracy, accurate positioning, in accordance with the procedures of automatic feeding, automatically and fast forward and rewind functions.
3. Working table vertical (or so) movement, the use of a V a flat guide, and the artificial precision shovel flowers, the use of hydraulic transmission, stable operation.
4. The grinding head up and down movement driven by a servo motor, which can achieve precise positioning accuracy, automatic feed and fast lifting function.
5. The Guangzhou CNC system GSK96 and two axis NC, according to the actual processing conditions free programming, with pulse wheel, X and Z axis feed can be free to switch freely.
6. Machine adopts full enclosed casing, can completely cover the whole of the working area, effectively prevent the splash of the cooling liquid and iron filings, and according to the requirements of clients connected ceiling spray dust removal device. (optional)
7. The characteristics of the CNC grinding machine is realize three-axis full automation, the second axis plane grinder while reducing the labor intensity of the operator, but also a single stand-alone operation, three axis automatic surface grinder, a worker can be 3 - 5 machines are operating at the same time, greatly reduce the labor cost, especially when the batch processing, the benefit is more remarkable.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Main technical specifications:

Specifications			Units	MYK1224
workbench	Worktable size (L * W)		mm	600x300
	Max. travel of table		mm	650x320
	Table T slot (slot number x slot width)		mm	1x14
Grinding head	Special grinding wheel size (o. d * w * i. d.)		mm	Ø300×30×Ø76.2
	Distance spindle center line to working table		mm	520
	Grinding wheel speed		r/min	1450
The amount of feed	Table longitudinal (left and right) speed		m/min	3-25
	Table transverse (front and rear) feed handwheel feed		m/min	0.5-15
	Grinding head(up and down)automatic feed		mm	0.005-0.05
	Grinding head up and down is fast lifting speed (approximate value)		m/min	0.6
Hydraulic system	Hydraulic motor		KW	2.2
	working pressure		MPa	4
	Fuel tank capacity		L	100
	Maximum flow rate		L/min	20
Motor power	Spindle motor		kw	3
	Cooling motor		W	90
	Elevator servo motor		kw	1.0
	Front and rear servo motor		kw	1.0
working accuracy	The process surface of the base level of the parallel degree		mm	300:0.005
	Surface roughness		μm	Ra0.32
Machine weight		Net weight	kg	1500
		Gross weight	kg	1600
Suction cup specification			mm	600x300
External size (L * w * h)			mm	2800×1600×1800
Packing size (L * w * h)			mm	2900×1700×2000

Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
