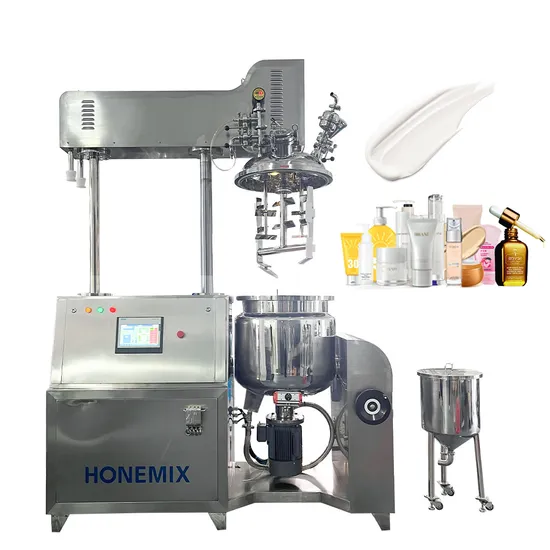

Honemix Guangzhou Vacuum Emulsifying Manufacturer 50L/100L Cosmetic Body Cream Sample Homogenizer Mixer Machine

Product Description

Guangzhou Hone Machinery have a strong team and imported technical support. We supplier of Cosmetic/Chemicals/Food Machinery with more than 15 years experiences. Quality and Service is Guaranteed. such as Vacuum Emulsifying Mixer. Homogenizer Mixers, liquid making machine, filling machine, capping machine, labeling machine, etc. Our main business is provide you complete solution from A to Z with Turnkey service. All of our machines meet hygiene standard with CE certification
Product Description HoneMix Guangzhou Vacuum Emulsifying Manufacturer 50L/100L Cosmetic Body Cream Sample Homogenizer Mixer Machine
Our factory is mainly manufacturing Vacuum emulsifying mixer, Mixing tanks, Storage tank, Filling machines, We also provide capping machine, labeling machine and other packing machines to provide customer whole production line from A to Z. Vacuum Emulsifying Mixer consists of main pot, water/ oil tank, hydraulic lifting system, HMI control system, homogenizer, mixing system, heating & cooling system, tilting discharge, vacuum system. Hydraulic lifting design, Lid could lift up and down Tilting discharge for convenience discharge and clean Jacket electric/steam heating, cooling in the jacket as well Frame wall scrape agitator Homogenizer at bottom of tank, strong power to emulsion materials quickly Independent electric cabinet control system All contact parts SUS316L Material, Other parts are SUS304, GMP standard Equipped Water and Oil melting tank Option functions: HMI control system Pipes and Fittings for water supply, heating, cooling, discharge Flow meter, Weighing scale Automatic valves control system CIP clean system When the materials are under the vacuum condition, it makes use of the high shear emulsifier to distribute one or several another continuous phase rapidly and evenly. The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the machine effect. By the operation of hydraulic shearing, centrifugal extruding, impacting, breaking and turbulence for over 199 thousand times per minute, the materials will be dispersed and emulsified instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will achieved.
Product Parameters

Capacity	Homogenizer		Agitator		Vacuum pump		Heating
	KW	RPM	KW	RPM	KW	Limited	Electric	Steam
50L	2.2	0-3600	1.1	0-60	0.75	-0.08Mpa	18	9
100L	4	0-3600	1.5	0-60	1.1	-0.08Mpa	21	12
200L	5.5	0-3600	2.2	0-60	1.5	-0.08Mpa	24	16
300L	7.5	0-3600	3	0-60	2.2	-0.08Mpa	27	24
500L	11	0-3600	5.5	0-60	3	-0.08Mpa	30	36
Customize	According to the URS

Detailed Photos The Lid Part:
Man-Hole, Material suction, Vacuum Pressure gauge, Vacuum Port, Vent Filter, Posotibe Pressure Inlet, Perfume Hopper, CIP Spray Ball, Led Light, Singt Window

Hydraulic bar+PLC
High precision and smooth hydraulic bar
Siemens PLC & HMI, can record the formula date
Homogenizer and Pipes
Siemens Homogenizer 0-3000rpm with Delta Inverter controller
Pipes can make automatic control or manual control
Certifications
Company Profile
FAQ
FAQ 1.Are you Factory or Trading company ? We are integrated industrial and trade enterprises, Our factory located in an ancient capital Yangzhou, and we found HONE company in Guangzhou to search more business opportunities at domestic and overseas. You could ask to check or test machines anytime to the factory, we will arrange everything for you. 2. Why your machine similar with other supplier? We have been in this industry for more than 15 years, We design machines by ourselves with advanced technology. Appearance just a part of machine, Quality and Service is more important than it. 3. I'm new in our industry, but I'm planning to setup a factory, What can I do? We offering Turnkey service from A to Z to customers, we will can suggest customer the most suitable machines according to their Formula, Raw material. Support you Manufacturing- Installation- Training- Maintenance- Technical Support. We could also customize machines according to your demands, We could send our engineer to your factory to install machines and train your workers of operation and maintenance. 4.What kind of machines can you supply to customer? We could offer various kinds of machines and whole production line. (1) Cream, paste Products, In cosmetic industry: face cream, body cream, washing cream, vaseline etc In food industry : sauce, ketchup, tomato paste, mayonnaise, mustard, chocolate etc In chemical industry: welding paste, ink, paint, pigment etc. Production line for them: RO water treatment- vacuum emulsifying machine- storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc (2) Liquid products shampoo, lotion, liquid soap, detergent, juice, solution etc. Production line for them: RO water treatment - liquid wash mixer- - storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc (3) Make-up products: Lipstick, lip gloss, nail polish, marscara etc Machines for them: homogenizer mixer, colliod mill, lipstick filling machine, frezzing machine etc (4) Perfume products:
