Jwell Machinery UPVC PVC PE HDPE PP PPR Pipe Production Line Plastic Drinking Water, Drainage, Sewage Tube Making Machine

Product Description

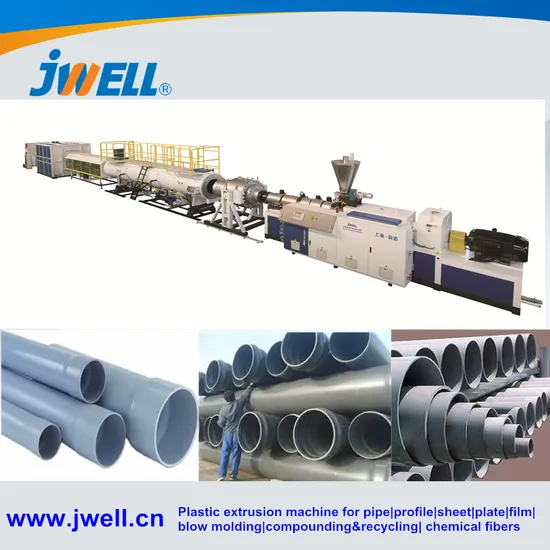

Jwell High Speed UPVC PVC HDPE PPR Pipe Extrusion Machine
Product description

This pipe production line adopts advanced technology of Europe, it is a new research achievement of energy-saving production line, which is suitable for high speed extrusion of PVC pipe. Compared with common production line, the energy-saving effect reach on 35%, and the product efficiency increase more than 1 times, thus it is not only saving the cost of site and manpower, but also improving efficiency

Outer Diameter	20mm Up to 1000mm (customized)
Model No.	JWG-PVC (customized)
Power Range	Up to 500 (kW) (customized)
Production Capacity	Up to 1300 kg/h (customized)
Layers	Single layer or multi-layer PVC pipes (customized)
Extruders	SJZ65/132, SJZ80/156; SJZ80/173; SJZ92/188;SJZ110/220 SJP75/28; SJP93/31; SJP120/31 (customized)
Material	PVC,CPVC, UPVC, PVC-O PVC-M (customized)
Guarantee Time	1 year (customized)
Certification	CE, TUV, SGS

Product Name	PVC UPVC, CPVC pipe extrusion line, pipe machine
Energy Saving Ratio	Up to 35%
Properties	Fully Automatic, stable production, large output
Speed Range	Normal speed and high speed optional
Standard	European
Loading Type	Automatic loader Vacuum suction or screw or spring loader
Brand for Extruder	Jwell
Brand for Screw&Barrel	China famous brand JINHAILUO since 1978
Electrical parts, gearbox, vacuum pump, auxiliary part	SIEMENS PLC, ABB, Roxroth, WEG, Schneider, OMRON (customized)

Specification
Model: Classic Type Extrusion Line for PVC pipe
Type	Diameter mm	Extruder	Capacity (kg/h)	Power(kW)
JWG-PVC32(Quadruple)	∅16-32	SJZ65/132	250-300	104
JWG-PVC63 (dual)	∅16-63	SJZ65/132	250-300	105
JWG -PVC110(dual)	∅50-110	SJZ80/173	450-500	165
JWG -PVC160	∅63-160	SJZ65/132	250-300	100
JWG-PVC250	∅75-250	SJZ80/156	300-400	110
JWG-PVC315	∅160-315	SJZ80/156	300-400	180
JWG-PVC450	∅200-450	SJZ80/173	450-500	245
JWG-PVC630	∅315-630	SJZ92/188	650-750	350
JWG-PVC800	∅400-800	SJZ110/220	1000-1300	420
JWG-PVC1000	∅500-1000	SJZ110/220	1000-1300	460
Note: Contact us for customized sizes, specification, functions.

The PVC pipe machine commonly together with the belling system, adopts the advanced European technology used for Pvc solid wall pipe and double -wall corrugated pipe. Belling type are rectangular type, U type and R type. Automatic control uses the japense mistsubishi PLC program control which stable and reliable. Belling die adopts hydraulic drive, main production range is ∅32-800mm

Type	JWGK110	JWGK250	JWGK450	JWGK630	JWGK800
Dia(mm)	∅32-110	∅63-250	∅160-450	∅315-630	∅400-800
Hydraulic pressure reated(MPA)	3MPA	3MPA	5MPA	5MPA	5MPA
Compressed air(Mpa)	0.4MPA	0.4MPA	0.4MPA	0.4MPA	0.4MPA
Power(KW)	10	20	25	40	60

PVC pipe machine commonly together with the mixer
DYHL series mixer adopts PLC control, which combined machine unites mainly used batching , mixing, coloring and drying for various resins. This unit has combined the technology of hot mixing and cool mixing, which can let the material enter cool mixing after hot mixing automatically so as to cool it and removal of residual gas to prevent blocking
Company information

As the vice unit of CPMIA, Shanghai Jwell Machinery Co., Ltd is the largest manufacturer of plastic extrusion machinery and chemical fiber spinning equipment in China, its head office is located in the western district of Shanghai. There are 5 production bases, which were located in the western district of Shanghai, Zhoushan of Zhejiang Province, Suzhou of Jiangsu Province and Changzhou of Jiangsu Province, Dongguan of Guangdong Province, totally covering 700,000 square meters. It has more than 2600 staffs, about 400 technicians and managing staffs.
Main products: various plastic pipes extrusion lines including large diameter PE/PVC double wall corrugated pipe extrusion line, large diameter PE/PVC solid wall pipe extrusion line, PP-R/PEX/PE-RT cool/hot water pipe extrusion line, PA/PE/PVC single wall corrugated pipe extrusion line; various plastic profile extrusion lines; various plastic plate & sheet extrusion lines; chemical fiber spinning; microcomputer controlled automatic blow molding machines; plastic auxiliary recycling lines; various single & twin screw and barrel extruders; T die; screen exchangers; Rollers and Robots.

JWELL certificate and brand
JWELL after sale service around the world
FAQ

Q1. Is Jwell Machinery Manufacturer?
A1: Jwell made the first Chinese screw and barrel in 1978 in brand name Jinhailuo. After more than 40 years development, JWELL is one of the biggest extrusion machine supplier in China with 300 design&test engineer, 3000 employees. We own 5 manufacturing bases and sales center in Shanghai , Suzhou , Changzhou, Zhou Shan, Dongguan China. Jwell has become the premier supplier of extrusion lines and reliable business partners. Welcome to drop in us.

Q2: How many brands does Jwell Machinery own?
A2: Jwell Machinery owns more than 20 subsidiaries, China famous brand JINHAILUO, JWELL, BKWELL, DYUN are our Trade Marks.
Q3: If we don't find what we need from your website , What should we do ? Do you make extrusion lines as per customers' specific requirement?
A3: Yes, we can provide bespoke service to customers with specific requirements. You can send the detailed requirements by email. We will check if we can develop them. We develop new machinery every month, and some of them may not yet be updated on our website.
Q4: How do you ensure your machinery and service quality?
A4: Our machines taking the European standards and follow the Germany type of business, we cooperation with International famous brands Siemens Schneider Flender Omron ABB WEG Falk Fuji etc. Our company continuously imports over 1000 international first-class high precision processing equipment such as multistage machining centers, NC lathes and CNC milling machines from Korea, Japan etc. All our processes strictly adhere to CE certification, IS09001 and 2008 quality management system . And we have 12 months quality warranty time. We testing the machine performances before each delivery. Jwell service engineers will always be here for anything you needed.
Q5: How can I order and make payments?
A5: Once clear your requirements and determined extrusion line is ideal for you. We will send technical solutions and Proforma Invoice to you. You can pay via TT bank transfer, LC as you like.
Q6: If we find your bank account or email different as before, how should we respond?
A6: Please don't send the payment and double check with us before arrange payment (Bank details will be listed in every piece of proforma invoice. ) We are only responsible for email
Q7: How long is the delivery date?
A7: Usually it takes about 1 - 4 months depends on different machinery upon receipt of order advance payment.
Q8: What is your Minimum Order Quantity?
A8: One. We provide both customized extrusion lines and technical solutions. Welcome contact with us for technical innovation or improvements for your future purchasing plan.
Q9: What is your production capacity?
A9: We produce more than 2000 advanced extrusion lines every year world wide.
A10: What about shipping?
Q10: We can send the small spare parts by air express for urgent matter. And the complete production line by sea to save the cost. You can either use your own assigned shipping agent or our cooperative forwarder. The nearest port is China Shanghai, Ningbo port, which is convenient for maritime transportation..
Q11: Is there any pre-after sale service?
A11: Yes, we support our business partners by pre-after sale service. Jwell has more than 300 technical testing engineers traveling world wide. Any cases would be responded with prompt solutions. We provide training, testing, operation and maintenance service for a life time.
Q12:Are our business& money safe with Jwell Machinery ?
A12: Yes, your business is safe and your money is safe. If you check China company blacklist, you will see that it is not contain our name as we never crook our customer before. JWELL enjoys high reputation from the customers and our business and customers grows year by year.
