Product Description

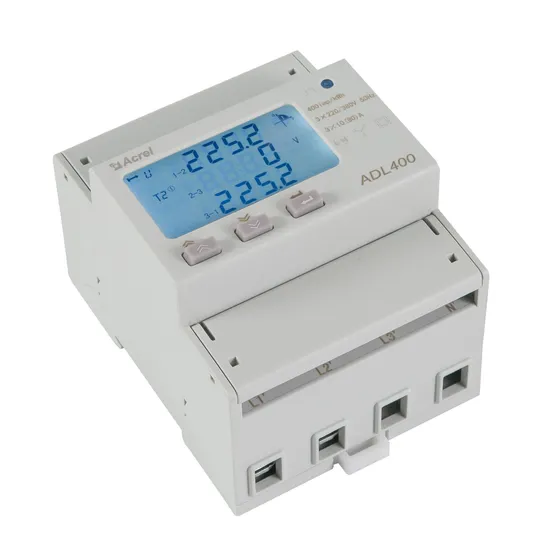

ADL400 Three Phase Multi-Function Energy Meter
General
ADL rail- installation Electricity meters is a new generation electricity meter developed by Acrel Co,.Ltd, resulting from many years experience in designing Electricity meters. LCD display and electricity pulse output function is installed in the power meter; clock, rate period parameters can be set also. Data swap with the super ordination machine via RS485 communication interface greatly facilitate the power automated administration. This power meter has advantages of smaller volume, high precision, good EMC, easy installation etc, meet the related technical requirements of electronic power meter in the IEC62053-21,IEC 62053-22 standard.
Features

	Diverse Electric Parameters Measurement kWh (3-phase positive Kilowatt-hours) kVarh (Kilovar-hours) Harmonic (2~31st voltage&current)---Standard U (3-phase Voltage);I (3-phase Current);P (Power);Q (Reactive power);F (Frequency);S (Apparent power);PF (Power factor)
Multi-rate/Flexible Tariff 4 Time zone 4 Tariff rate (Spike, Peak, Flat, Valley) 2 Time period list 14 Time period by day Data Frozen (last 48 months or last 90 days) Max demand and occurrence time
	HMI for Common Configuration PT or CT ratio Wiring methods (3P4W or 3P3W) Back linght time RS485 (MODBUS-RTU) communication setting

Technical Parameters

Specification		ADL400	ADL3000-E	ADL3000-E/CT
Voltage	Reference voltage	3×100V, 3×380V,3×57.7/100V, 3×220/380V
	Consumption	<10VA
	Impedance	>2MΩ
	Accuracy	Error±0.2%
Current	Reference current	3×1(6)A,3×10(80)A	3×1(6)A,3×10(80)A	3×1(6)A,3×20(100)A
	Accuracy class	Error±0.2%
	Consumption	<1VA
Power		Active, reactive, apparent power, error±0.5℅
Display		LCD
Frequency		45~65Hz,Error±0.2%
Option Function	Communication	RS485, Modbus-RTU compatible protocol
	Multi tariff energies	Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates
	Harmonic	No	2-31st harmonic.
	Switching	No	1 Switching output
		NO	1 optocoupler input
Operation Temperature		-25 ºC~+55 ºC
Storage Temperature		-25 ºC ~+70 ºC
Altitude		≤ 2500m
Relative humidity		≤95%RH, no condensation, without corrosive gas

Dimension(Unit:mm)
Wiring
1.Direct connect type

Three phase three wire

Three phase four wire

2.CT operated type

Three phase three wire

Three phase four wire

Typical connection
FAQ
Q: What's the difference of current input via direct connect or via CTs?
A: Normally, for 3-phase loads with rated current below 80A AC, we will use model of ADL400 whose current input is via direct connect. Specs of "Rated Current: 10(80)A AC" was aimed for this model of ADL400 (current input via direct connect). 10 means basic current is 10A AC, 80 means rated current input is 80A AC.
And for 3-phase loads with rated current over 80A AC, we will use model of ADL400 whose current input is via CTs (usually paired with -/5A CTs whose secondary current output is with 5A AC rated current output). Specs of "Rated Current: 1(6)A AC" was aimed for this model of ADL400 (current input via CTs). 1 means basic current is 1A AC, 6 means max current input is 6A AC.
Q: Do your company also have paired CTs for ADL400?
A: Usually, we will recommend our user to use split-core CTs called AKH-0.66/K K-φ Series or solid-core CTs called AKH-0.66/I Series to the paired with ADL400 (current input via CTs)
Q: How can I set the CT or PT ratio of ADL400?
A: Current ratio of ADL400 could be set by using the keypads on ADL400 and following the instruction of ADL400 manual. Also, setting need to be according to the CTs or PTs ratio which were paired with ADL400. For example, if the current input is via 250A/5A CTs, the CT ratio on ADL400 should be set to 250/5=50. And if the voltage input is via direct connect, PT ratio on ADL400 should be set to 1. When the problem hasn't been solved, please contact us for help.
Q: Could ADL400 be used in IoT Energy Monitoring System for factory or building?
A: ADL400 has standard RS485 interface and MODBUS-RTU communication protocol which allow it to be integrate with our IoT Energy Monitor Solution that can enable our users to remotely check all the data collect by energy meters like ADL400 on their mobile phone or PC. For more information, please Contact us or check in IoT Energy Monitoring Solution Introduction.
Q: What is Multi-rate/tariff function? How does it work?
A: First,multi-rate/tariff function was designed to be used for billing system. Second, the electricity price of different time duration in a day is different in some country.
Energy meter with this function can measure the kwh data and assign them to several time duration in a day and put a label of spike/peak/flat/valley kwh on them respectively. And if such energy meter was connected to the billing system by using a IoT gateway, it can send the kwh data of different time duration which was with the label of spike/peak/flat/valley kwh to the billing system for calculating the electricity bill of different time duration in a day.
For example, the electricity price of spike kwh is 5 USD/1 kwh, and time duration of from 9:00 am to 11:30 am was labeled as spike kwh.
Then, if energy meter record 3 kwh used in total during 9:00 am to 11:30 am, it will send the data of 3 kwh with the label of spike kwh to the billing system, and the system calculate the electricity cost of 3x5=15USD in total from 9:00 am to 11:30 am.
Other Question? Please contact us and we will get back to you as soon as possible.
