630A 800A 1000A 1250A 2500A 3200A 6300A Busbar Joint Pack Block for Busduct System

Product Description

Monobloc busbar joint for busduct system / Busbar joint block / Busbar joint pack for busbar trunking system

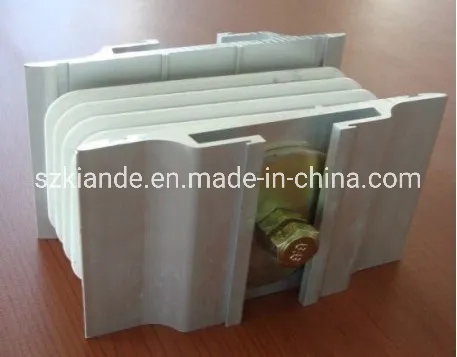

The busbar joint is mainly composed of aluminum profile, insulation barrier, aluminum or copper conductor, hexagon bolt with nut, insulation tube etc and is used for connection of two pieces busway system. Specification: 3P3W, 3P4W, 3P5W. Current of the joint: as customer's request; Application: used for connection of sandwich busbar trunking system
We are the company specialized in busbar machine.Busbar machine means busbar production machine or busbar processing machine including mylar sleeve forming machine, busbar assembly machine, busbar riveting machine, busbar testing & inspection machine, busbar packing machine and busbar conveying machine. If you want to know how we use the machine to assemble the busbar, please kindly get the referenced pictures as below.
Step 1 Prepare all busbar finished components
Step 2 Use related busbar machines to process the busbar
Busbar machine copper processing
Need Kiande's busbar gas-hydraulic copper bar punching machine(This is one-time punching forming. In the market, some busbar manufacturer buys three-in-one busbar machine to bend and punch copper or aluminum bar. As the bar experiences many procedures, the accuracy is not good which will cause the phase distance too small to cause the short circuit.)
Busbar machine mylar sleeve processing machine polyester film forming machineNeed Kiande's mylar/polyester film forming machine. In the market, some busbar manufacturer requests workers to wrap the bar manually. Different workers have different workmanship. If employer meets the inexperienced workers, the wrapping part will have some gaps which will cause the short circuit.
Busbar machine busbar accessory 3M insulation film Conductor(Copper bar/Aluminum bar) end wrapping
Busbar machine busbar accessory Aluminum profile capped casting capped end
