Two Arms Two Carriages Shuttle Rotomolding Machine Plastic Machine

Product Description

Product Description

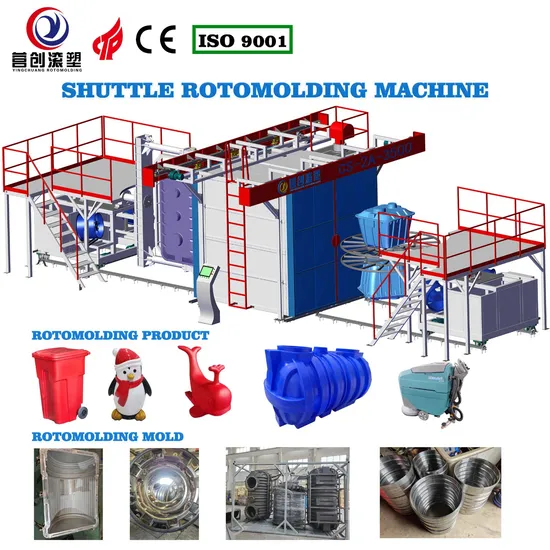

Shuttle Rotomolding Machine
Specifications

Model No	Floor Size					Maximum tank made
	L(M)	W(M)	HW)	Operation platform
CS-2A-1000	4	2.8	2	×		150L
CS-2A-1600	8.6	3.9	2.8	×		700L
CS-2A-2000	9.8	4.7	3.2	×		1000L
CS-2A-2500	13	5.7	3.7	√		2500L
CS-2A-3000	14.8	6.7	4.2	√		4500L
CS-2A-3500	17.7	7.7	4.7	√		7000L
CS-2A-4000	19.2	8.7	5.2	√		10000L
CS-2A-4500	20.7	9.7	5.7	√		14000L
CS-2A-5000	21.8	10.7	6.6	√		20000L
CS-2A-5500	24.3	11.7	7.5	√		25000L
CS-2A-6000	25.8	12.7	8	√		35000L
CS-2A-6500	27.3	13.7	8.5	√		40000L
CS-2A-7500	30.3	15.7	9.5	√		50000L
CS-2A-8500	33.3	17.7	10.5	√		100000L
CS-2A-10000	37.8	20.7	12	√		150000L

A shuttle rotomolding machine is a type of equipment used in the rotational molding process. Rotational molding, also known as rotomolding, is a manufacturing technique used to produce hollow plastic products.
A shuttle rotomolding machine consists of a large oven, a mold, and a shuttle system. The oven is heated to melt the plastic material, typically a powdered resin, inside the mold. The mold is often made of aluminum or steel and is designed to create the desired shape of the final product.
The shuttle system in a shuttle rotomolding machine allows for the movement of the mold between different stations. It typically operates on a horizontal axis, enabling the mold to shuttle back and forth between the oven and the cooling station.
The process of shuttle rotomolding involves the following steps:
1.Loading: The powdered plastic material is loaded into the mold, which is then closed and sealed.
2.Heating: The mold is transferred into the heated oven, where it rotates slowly on its axis. The heat causes the plastic to melt and evenly coat the inner surfaces of the mold.
3.Cooling: After a predetermined heating time, the mold is shuttled out of the oven and into the cooling station. Cold air or water is circulated around the mold to solidify the plastic and cool it down.
4.Unloading: Once the plastic has cooled and solidified, the mold is opened, and the finished product is removed. The shuttle system then returns the empty mold back to the loading station to start the process again.
Shuttle rotomolding machines are often used for manufacturing large, hollow plastic products such as tanks, containers, automotive parts, playground equipment, and storage bins. The shuttle system allows for efficient production by reducing downtime between cycles and enabling multiple molds to be used in the same machine.
Similar machine cases

Company Profile
Changzhou Yingchuang Rotomolding Equipment Co., Ltd. was founded 2018 and is located in the beautiful Longcheng Changzhou. It covers an area of 10000 square meters. It is a national high-tech enterprise. The company takes advanced technology and service as the core, adheres to scientific and technological innovation, "Yingchuang" brand, has domestic first-class rotational molding industry talents and technical team, and the technology is at the domestic leading level. The company has senior engineers who have been engaged in mechanical design for more than 20 years and industrial control experts who have been engaged in industrial automation control system design for more than 15 years. It is a scientific and technological enterprise with a global rotational molding technology R & D platform.
We are focuses on rotomolding equipment, slush molding equipment, rotomolding molds and rotomolding products, customizes the design according to the needs of each customer, so as to achieve the coexistence of service and quality.
Following the tenet of "survival by quality, development by science and technology, benefit by management and reputation by service", our company has won unanimous praise from customers at home and abroad by virtue of high-end product quality, high-quality after-sales service and good corporate reputation.
Welcome to contact with me for more details!
