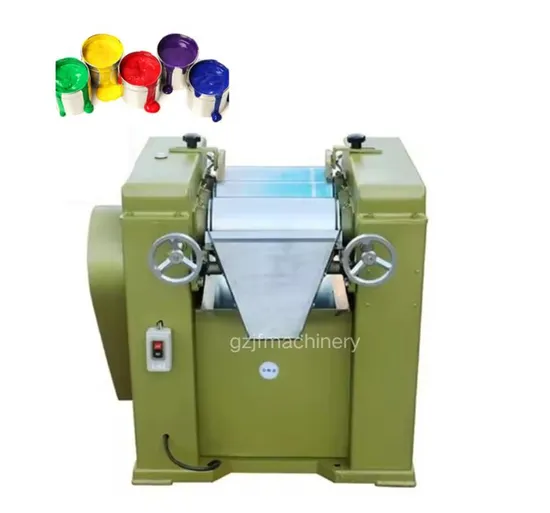

Three Roller Mill Triple Roll Grinding Machine for Pigment/Color Paste/Lipstick/Soap/Oil Paint/Battery Black/Dyestuff
Basic Info.
Model NO.
JF-S65
Model No.
Jf-S65
Condition
New
Control System
Button Control
Cooling Method
Air Cooling
Main Material
Aluminum, Stainless Steel
Mould Shapes
Round
Power Source
Electric
Advantage
High Efficiency
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Output (Kg/H)
1 - 5 Kg/H
Feeding Size (mm)
65 - 125 mm
Output Size (Mesh)
3 - 18 Mesh
Range of Spindle Speed(r.p.m)
1 - 250 r.p.m
Product Type
Paint
Transport Package
Wooden Case
Specification
60KG
Trademark
JINFENG
Origin
China
HS Code
8479820090
Production Capacity
10 Sets Per Months
Product Description
Three Roller Mill Triple Roll Grinding Machine For Pigment/color Paste/lipstick/soap/oil Paint/battery Black/dyestuff Product DescriptionThe grinding effect is achieved by squeezing the surface of three horizontal rollers and friction at different speeds. Roller material is cold carbide, rust resistant alloy and other different specifications, suitable for different material requirements.
Application
Three roller grinding machine is mainly used for a variety of paint, ink, paint, plastic slurry. Especially suitable for grinding of high viscosity and particle size of fine products
Product Specification
| Model | S65 |
| Production speed | 5 KG/H |
| Motor | 0.75KW |
| Material | Roller: hard alloy steel Other part: carbon steel |
| Speed | Fast roller: 250RPM Middle roller: 89RPM Slow roller: 32 RPM |
| Net size | 44*42*40 CM |
| Net weight | 80KG |
Other models
Product Details
It's mainly composed of: Grinding part ( 3 rollers ), Driving system (motors + gears + belt ) and Frame part
Certifications
FAQ
Packaging & Shipping
1.Package:PE film cover inside and then plywood case.
2.Accept terms:EXW,FOB,C&F,CIF,etc.
3.Shipping by Express,Air or Sea based on customers' requirements and lowest cost solution.
