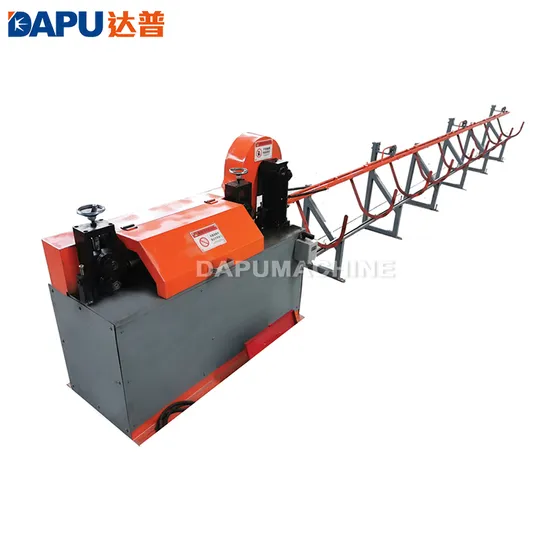

High-Speed Multi-Type Galvanized Steel Rebar Wire Straightening & Cutting Machine Equipment Manufacturer
Basic Info.
Model NO.
DP-GT
Usage
Wire, Bar
Voltage
as Your Request
Automatic Grade
Automatic
Principle
Small Deformation
Certification
ISO9001, CE
Warranty
12 Months
Customized
Customized
Condition
New
After-Sale Service
Engineers Is Available for Installation Overseas
Wire Diameter
Min.2mm; Max.18mm
Cut Length
Min.100mm; Max.12000mm
Cut Error
1mm
Capacity
Min.40m/Min; Max.130m/Min
Training Workers
Yes
Straightening Motor
Min.1.5kw; Max.3.7kw
Cutting Motor
Min.1.5kw; Max.9.5kw
Transport Package
Wooden Pallet, Plastic Package in Container
Specification
CE, ISO9001
Trademark
DAPU
Origin
Anping, Hebei, China
HS Code
8515809090
Production Capacity
Max. 130m/Min
Packaging & Delivery
Package Size
350.00cm * 160.00cm * 125.00cm
Package Gross Weight
300.000kg
Product Description
Wire Straightening and Cutting Machine with Mutil Type| Model | GT2-3.5H | GT2-4 | GT2-6+ |
| Wire diameter | 2-3.5mm | 2-4mm | 2-6mm |
| Cutting length | 300-2500/3000mm | 100-1200mm | 100-6000mm |
| Speed | Max.60-80m/min | Max.100m/min | Max.40-60m/min |
| Cut error | 1mm | 0.5mm | 1mm |
| Straightening motor | 4 | 1.5 | 2.2 |
| Cutting motor | -- | 1.5kw | 1.5kw |
| Model | GT3-6H | GT3-8H |
| Wire diameter | 3-6mm | 3-8mm |
| Cutting length | 330-6000mm | 100-6000/12000mm |
| Speed | Max.120m/min | Max.120m/min |
| Cut error | 1mm | 1mm |
| Straightening motor | 7 | 15 |
| Cutting motor | 3kw | 3kw |
| Model | GT4-12H |
| Wire diameter | 4-12mm wire rod 4-12mm rebar |
| Cutting length | 280-12000mm |
| Speed | Max.45m/min |
| Cut error | 5mm |
| Straightening motor | 11 |
| Cutting motor | 4kw |
| Model | GT6-12 | GT6-14 |
| Wire diameter | 6-12mm wire rod 5-10mm rebar | 6-14mm wire rod 5-12mm rebar |
| Cutting length | 280/600-12000mm | 280-12000mm |
| Speed | Max.70-130m/min | Max.52m/min |
| Cut error | 5mm | 5mm |
| Straightening motor | 30 | 11 |
| Cutting motor | 7.5kw | 5.5kw |
